Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey

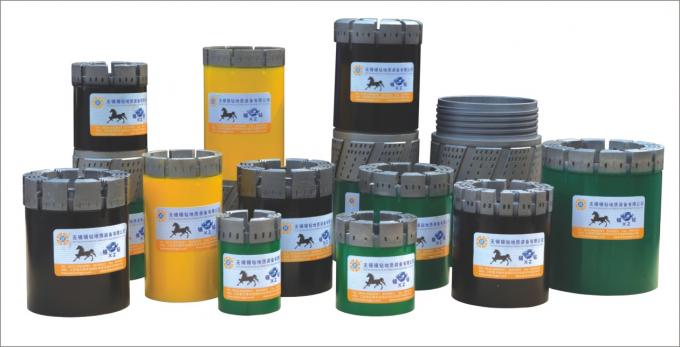

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey factory Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey factory

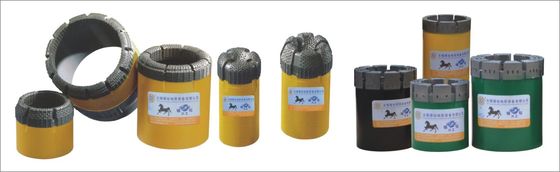

Large Image : Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey

Product Details:

Place of Origin:China
Brand Name:SINOCOREDRILL
Certification:CE

Payment & Shipping Terms:

Minimum Order Quantity:N/A
Packaging Details:Sea Delivery Package
Delivery Time:30Days
Payment Terms:T/T
Supply Ability:Based on Detailed Order
Detailed Product Description
Features: High Penetration Rate, High Speed,High Performance Product Name: Diamond Drilling Tools
Working Layer: 6mm, 8mm,10mm,12mm Use: Mineral Exploration Industry
Siz: BW , NW , HW , PW / NQ , HQ , PQ Type: Impregnated Bit

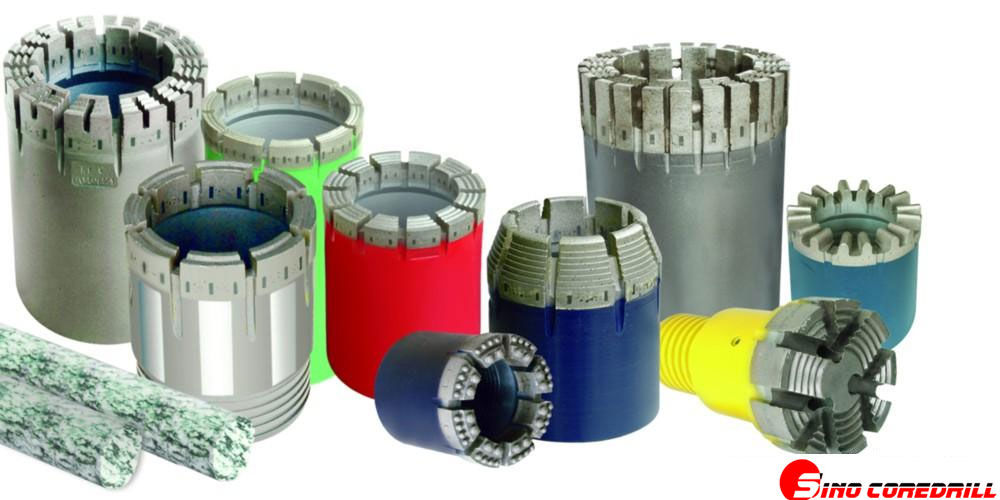

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey





Impregnated Bit The main technical parameters of impregnated diamond core bits include diamond type, size, concentration and diamond grade, matrix hardness and crown shapes etc. If users can make rational selections,according to the rock formations, they can get satisfied drilling performance on various formations with different hardness. To avoid excessive bit wear, diamond tungsten carbide inserts could be used on both sides of the waterway and the larger diamonds are used on the inside and outside.

The impregnated diamond core bit emerged as the most commonly used type in the mineral exploration industry.



Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey





Specifications



1.High quality synthetic diamond powders
2.PQ HQ NQ BQ etc.
3.6mm, 8mm,10mm,12mm working layer
4.Patented matrix formulation





Diamond core bit



Diamond Core Bits are widely used in mineral exploration industry and geological survey. We have impregnated diamond type, surface set type, electroplated diamond type, T.C. type, PCD type and TSP type in following sizes. Welcome to contact us for inquiry.









Features:



• Significantly outperforms the successful Series range in drilling speed and bit life.
• Protects the diamond from oxidation and surface degradation.
• Inhibits the premature "pull-out" of the diamond.
• Available in multiple standard configurations and selected on the basis of relative rock hardness and ground conditions.





Size Available:



Q series: AQ, BQ, NQ, HQ, PQ, BQ3, NQ2, NQ3, HQ3, PQ3...

T2 series: T2-46, T2-56, T2-66, T2-76, T2-86, T2-101

T6 series: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S series: T6S-76, T6S-86, T6S-116, T6S-131, T6S-146

B series: B36, B46, B56, B76, B86, B101, B116, B146

WF series: HWF, PWF, SWF, UWF, ZWF

WG series: EWG, AWG, BWG, NWG, HWG

WM series: EWM, AWM, BWM

WT series: RWT, EWT, AWT, NWT, HWT

Others: NMLC, HMLC, LTK48, LTK60, EWK, AWK.





Note:



Impregnated Diamond Core Bit:



Impregnation Depth: 6-12mm; 6mm is "Chen Guang" standard depth

Bit Crown Profiles: "W" profile, "Flat" profile, "Semi-round" profile, "Cross" profile...





Surface Set Diamond Core Bit:



Bit Crown Profiles: "Semi-round" profile, "4 Steps" profile.. "7 Steps" profile..


  • Impregnated Bits Matrix Selection Guide





Formation Hardness



Abrasiveness



Rock Type



Bit Matrix Range

40~

45

35~

40

35~

40

30~

35

30~

35

25~

30

25~

30

20~

25

20~

25

15~

20

1

2

3

4

5

6

7

8

9

10

Soft

Medium

Clay, Shale,

very soft Sandstone,

marl argillite Volcanic tuff, etc.

























Medium-Hard

Low



Medium



High

Limestone,

rhyolite lava,

andesite marble,hard sandstone,limonidolomite,schist,

Etc.





























































Hard

Low



Medium



High

Basalt,gneiss,granodiorite amphibololite,pegmatite dianase,

Etc.





























































Very Hard

Low



Medium



High

Hard granite, quartzitic

Conglomerate,quartize hard slate,rhyolite,

Etc.

































































Bits Crown Profiles

     Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey           Channel flushing (CF)

                                                      Ø  Preferable in competent and semi-broken rock

                                                      Ø  Suitable for mixed formations containing brokenand competent zones.

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey          Extended Channel flushing (ECF)

                                           Ø  Preferable in competent and semi-broken rock

                                           Ø  Suitable for mixed formations containing broken and competent zones.

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey            Wedge (pie shaped)

                                             Ø  Superior flushing capability

                                             Ø  Improved productivity

                                             Ø  Preferable in abrasive or broken rock.

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey     Turbo

                                      Ø  High productivity

                                      Ø  Suitable for competent formations

Diamond Drilling Tools Impregnated Bit 6mm 8mm 10mm 12mm For Geological Survey  Face discharge (FD)

                                    Ø  Designed to minimize flushing of core sample

                                    Ø  Suitable for broken/granular formations.
