Fast Speed Borehole Geological Diamond Core Bit Coal Drilling Impregnated Drill Bit
Negotiable
MOQ
Negotiable
Price
Fast Speed Borehole Geological Diamond Core Bit Coal Drilling Impregnated Drill Bit
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE, ISO9001-2000
Model Number: BQ NQ HQ PQ
High Light:

drilling impregnated diamond core bit

,

borehole impregnated diamond core bit

,

geological impregnated diamond core bit

Payment & Shipping Terms
Packaging Details: Sea Worthy Package
Delivery Time: 5-7 Working Days
Payment Terms: T/T, L/C, Western Union
Specifications
Material: Synthetic Diamond, Natural Diamond
Available Size: Q Series, T2 Series, T6 Series
Crown Profile: Standard
Waterways: Standard /Face Discharge /Turbo /Spiral
Thread: DCDMA Standard
Color: Black
Applicaion: All Conventional And Wireline Core Barrel
Use: Mining Exploration Diamond Drilling
Type: Diamond Core Bit
Product Description

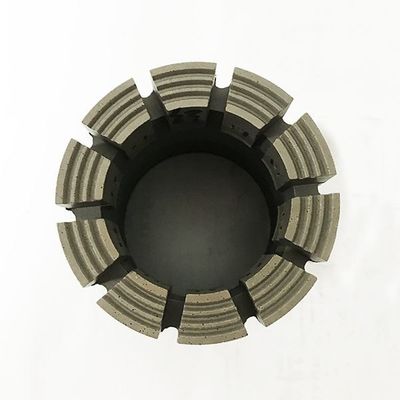

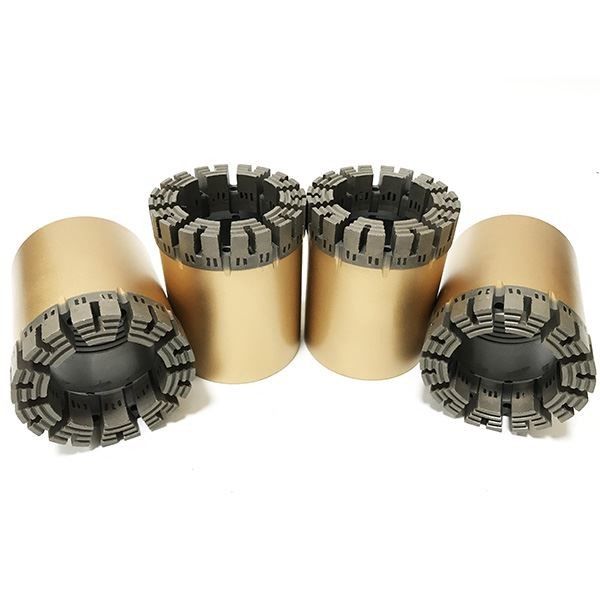

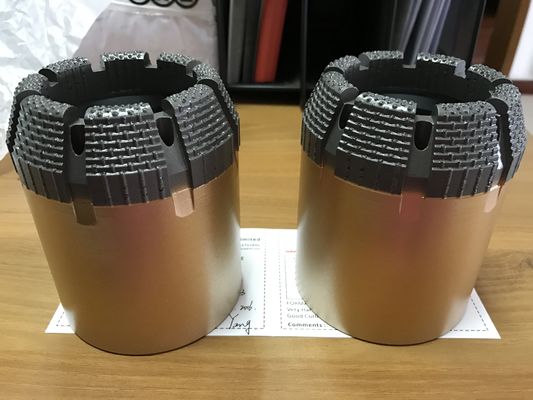

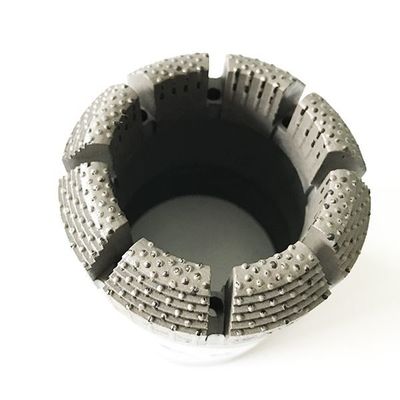

Borehole Geological Drilling Impregnated and Surface Set Diamond Core Bit





The synthetic diamond polycrystalline is manufactured by sintering the fine grains of synthetic monocrystals and at high temperature and high-pressure.Because of their advantages of high wear ability,hot hardness high compressive and impact strength,It is widely usd in geological exploration,petroleum drilling,mechanical processes,and so on.



Diamond core bits are widely used in the drilling for geological exploration,water conservancy and power engineering,hydrogeological exploration and building construction,ets.



1.1 Heat treatment control:

Heat treatment will greatly improve the material strength and increase the thread wear life

of the rods and casings. We conduct either tru-wall or both ends heat treatment to the

tube body. After heat treatment, strength, hardness, straightness and concentricity of the

treated tubes will be tested in our lab.

1.2 Thread opening process:

Accuracy of threads will determine the use effects and life time of drill rod and casings.

CNC latches and form cutter are used in thread opening processing to minimize error

made by anthropic factors.

1.3 Additional thread treatment:

Surface of the threads will be cleaned to remove burr adhered after threads are opened.

Afterwards, the tread surface will be phosphated to improve surface conditions.



Q series core bits
Size O.D I.D Availability
mm mm Imp. S.S T.C. PDC TSP E.P.
AQ 47.75/47.50 27.10/26.85
BQ 59.69/59.44 36.52/36.27
BQ3 59.69/59.44 33.65/33.40
NQ 75.44/75.19 47.75/47.50
NQ3 75.44/75.19 45.21/44.96
HQ 95.76/95.38 63.63/63.38
HQ3 95.76/95.38 61.24/60.99
PQ 122.30/121.80 85.09/84.84
PQ3 122.30/121.80 83.18/82.93
Core bits for N-series double core barrels
NMLC 75.44/75.19 52.12/51.87
HMLC 98.98/98.60 63.63/63.38
Core bits for T2 series double core barrels
T2-46 46.18/45.92 31.82/31.57
T2-56 56.13/55.88 41.83/41.58
T2-76 76.12/75.87 61.82/61.57
T2-86 86.13/85.88 71.83/71.58
T2-101 101.12/100.87 83.82/83.57
Core bits for T6 series double core barrels
T6-76 76.12/75.87 57.12/56.87
T6-86 86.13/85.88 67.13/66.88
T6-101 101.12/100.87 79.12/78.87
T6-116 116.20/115.82 93.14/92.89
T6-131 131.19/130.81 108.13/107.88
T6-146 146.18/145.80 123.11/122.86
Core bits for Chinese standard single tube core barrels
59 59.5 41.5
75 75.2 54.5
91 91.2 68
110 111.2 93
130 131.2 113
150 151.2 133
170 171.2 149
219 225.2 197
Core bits for Chinese standard double tube core barrels
75 75.2 54.5
91 91.2 68
110 111.2 93





Model
Core Drill Bit, Reaming Shell
Drill Rod
Standard
Drilling Depth
Drill Bit OD/ID
Reamer OD
OD
ID
mm
mm
mm
mm
m
BTW
Φ59.56/Φ42.35
Φ59.95
Φ56.3
Φ48
International Standard
1000
NTW
Φ75.31/Φ56.35
Φ75.7
Φ73.3
Φ64
International Standard
900
HTW
Φ95.57/Φ71.35
Φ96.09
Φ91.3
Φ81
International Standard
800
AQ
Φ47.63/Φ26.97
Φ48.01
Φ44.5
Φ34.9
International Standard
1000
BQ
Φ59.56/Φ36.4
Φ59.95
Φ55.6
Φ46
International Standard
1200
NQ
Φ75.31/Φ47.6
Φ75.7
Φ69.9
Φ60.3
International Standard
1800
HQ
Φ95.57/Φ63.5
Φ96.09
Φ88.9
Φ77.8
International Standard
1800
PQ
Φ122.05/Φ85
Φ122.65
Φ114.3
Φ103.2
International Standard
1600









Q:Are you trading company or manufacturer ?

A: We are a specialized manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

T/T, L/C, Western Union.



Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
A: Min. order quantity: 2 piece. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promote technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: Where is your factory located in?
A: Our factory is located in Jiangyin city,Jiangsu province, China.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Sinocoredrill usually makes a serious inspection for all products and raw materials in strict procedure
