Product Details:
|
| Type: | Underground Core Drill Rig | Model: | XZKD95-3 |
|---|---|---|---|
| Engine: | 75KW Motor | Application: | Mine Exploration , Tunneling , |
| Motor Rotation Speed: | 1480rpm | Weight: | 2100kgs |
| Dimession: | 2500*390*620mm Main Body | Main Pump Rated Pressure: | 31.5Mpa |
| Frequency: | 50Hz | ||
| High Light: | underground drill rigs,mining drill rig |
||

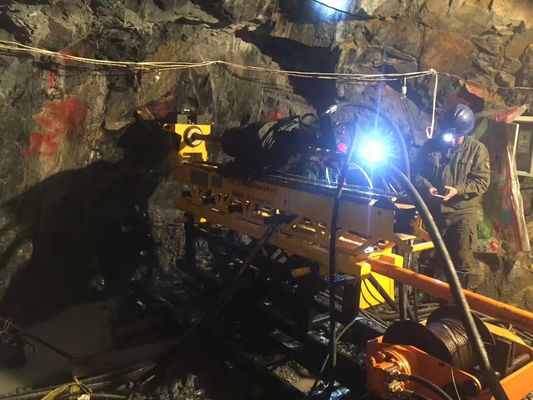

75kw Motor Power Hydraulic Underground Core Drilling Rig With NQ 500m
All-Hydraulic drilling machine is suitable for drilling holes for the purpose of mine exploring; also they could be used in railway engineering, tunneling and water conservancy project. You will surely benefit a lot by its excellent and reliable performance.
XZKD95-3 underground drilling rig is composed of power unit, machine body, control panel, rotation unit, rod holder and mud pump.
1. Oil pump drives the motor to rotate, hydraulic cylinder works without turret.
2. The machine system of rotation, feed, pumping and clamping relies on fluid drive; make your drilling work more smooth than any other competitors;
3. Fast drilling speed, can drill holes from any angle in work tunnel by column, best applicability;
4. With V-guide, the products provide the highest concentricity about principal axis;
5. Easy to maintenance, repair, disassembly, installation and movement.
Technical specification
| Spindle rotation speed | 0-1300 r/min | Hydraulic system working pressure | 20 Mpa |
| Spindle torque | >1300 Nm | Maximum working pressure | 25 Mpa |
| Axial pushing force | >62 KN | Degree drilling angle | 0-360 ° |
| Axial pulling force | >83 KN | Well drilling angle | 0-360 ° |
| Rotation head feed frame | 1600mm | Ground drilling angle | 0-180 ° |
| Motor power | 75KW | Motor rotation speed | 1480 rpm |
| Voltage | 380V | Frequency | 50 Hz |
| Main pump rated pressure | 31.5 Mpa | Auxiliary pump rated pressure | 31.5 Mpa |
| Dimensions (length*width*height) mm | Machine Body :2500*390*620 Power unit:1710*1100*1270 Control panel:550*450*1150 |
||
| Weight | 2100KG (main body:550kg, power unit:800kg,control panel:132kg | ||
The relationship between the drilling depth, drilling diameter and drilling rod material
| Hole diameter (mm) | Drilling rod diameter (mm) | Drilling rod material | Drilling depth (m) | ||
| Downward | Horizontal | Upward | |||
| 95(HQ) | 89 | steel | 400 | 300 | 200 |
| 75(NQ) | 71 | steel | 550 | 400 | 300 |
| 59(BQ) | 55.5 | steel | 700 | 550 | 400 |
We are a professional manufacturer of high quality exploration drilling rig and wireline core barrel , diamond core bits ,drill rod in Jiangsu China since 2008.
-Surface core drilling machine
-Water well Drilling,
-Muti-funchtion drilling rig for gas and oil.
-Underground core drilling rig
-HDD rig for city underground construction, telcom, water pipe, gas and oil pipe,
Wireline core drilling products:
Impregnated Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Surface Bit(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Reaming Shell(T2-76/86/101,etc; BQ,HQ,NQ,PQ,etc)
Core Barrels & spare parts:
Drill Rod, core lifters, core lifter cases, stop rings, landing rings, landing shoulders, stabilizers, locking couplings, adaptor couplings,
inner tube and outer tubes wrenches, head assembly, Core Barrels…
