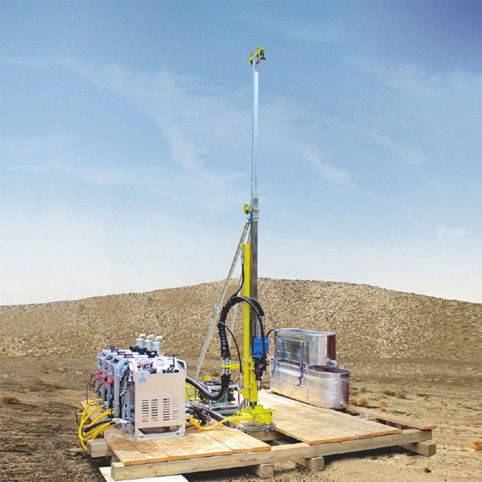

21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification

21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification
21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification 21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification

Large Image :  21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001
Model Number: EP200
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Packaging Details: 1*20GP container
Delivery Time: 30 DAYS

21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification

Description
Dill Depth Capacity: 30/100/200m Hole Diameter: 96/75.7/60mm HQ NTW BTW
Core Diameter: 63.5/56/42mm Engine Power: KUBOTA 23.5kw/3000rpm
Hydraulic System: 21MPa/max 54L/min Water Cooler Maximum Toque: 400NM
Drill Angle: 45°-90° Platform Area/Module Quantity: 2.5m X2.5 M / 4PCS
Heaviest Module/Gross: 176kg / 513kg
High Light:

core drill rigs

,

diamond core drilling







200M Depth Portable Core Drill Rig Lightweight Design And Kubota Engine



----Portable and efficient – the new choice

----Global procurement Made in China





Fields of Application



EP200 is widely used in mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydropower project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests and plateaus. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.



Key Characteristics



       Lightweight –Modulized design with the heaviest pieceweighing only 120kg

              Aviation aluminum materials used for more than 90% of the framework



       Fast– Easy to relocate with the capability of being assembled/disassembled within only 20 minutes

Thin wall rods, low resistance,and speed penetration





Excellent – Long stroke cylinder, easier to control than the chain



       Cost-efficient – No road construction; No infrastructure construction; Time saving

Hydraulic coring and drilling; No drilling tower; Energy saving

Environmentally friendly; Worry-free

Low consumption;Cost saving





The key issue regarding the traditional portable and vertical drilling machines, when executing projects with a depth of 200 meters, is the balance of lightweight and efficiency. With its lightweight, easy assembling/dissembling capability and high efficiency, EP200 is your best new choice.



21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification 0



Drillable Depth

HQ/NTW/BTW



Rod Length

30 /100/200m



Borehole Diameter

96/75.7/60mm



Core Diameter

63.5/56/42mm



Engine power

D1105-T , 23.5kw/3000rpm

KUBOTA

Pressure



21 Maximum pressure 54 Maximum flow Water cooler



Top drive

Rotation head



Maximum toque

400NM



Maximum rotation speed

1300rpm



Feed travel (Cylinder drive)



1.27m



Pull/thrust

33KN/24KN



Winch



Average speed

150m/min



Lift

600kg



Were Diameter/Accommodation

5mm/240m



 3.8m;

Height



Drill Angle

45°-90°



Size and weight



Working area/Module quantity

2.5m X2.5 m / 4PCS



Heaviest module/Gross Weight

176kg / 513kg



21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification 1


21MPa / Max 54L / Min Portable Core Drill Rig Water Cooler ISO9001 Certification 2
