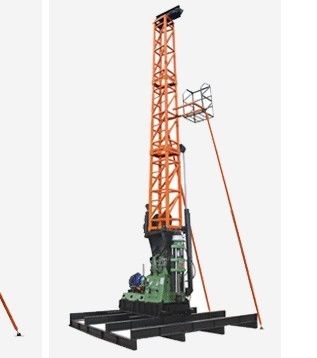

Spindle Type Core Drill Rig , Diamond Core Drilling Rig XY-4T

Description
High Light:

Hydraulic drill rig

,

diamond core drilling

Spindle Type Core Drill Rig , Diamond Core Drilling Rig XY-4T



  1. Specifications



    Drilling Depth

     700—1000 m (2296-3280 feet)

     Max. Torque

     2.64 KN·m (1946 lbf·ft)

     Spindle Stroke

     600 mm (23.6 inch)

     I.D of Spindle

     68 mm (2.68 inch)

     Max. Lifting Capacity of Spindle

     80 KN (17984 lbf)

     Max. Pressure Force of Spindle

     60 KN (13488 lbf)

     Max. Hoisting Force

     30 KN (6744 lbf)

     Engine Power

     30 KW (40HP)





  1. The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
  2. The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
  3. With compact structure and reasonable layout, and all exposed, non overlapped components, it is easier for maintenance and repair.
  4. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
  5. The operation levers are concentrated, so the operations are reliable and convenient.
  6. Fitted with meters, the circumstances can be controlled easily in hole.
  7. The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.



Ⅰ. Application Scope

The XY-4T core drill rig, integrated rig with tower into one unit, consists of XY-4 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The geotechnical drilling rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.

The tower body of HXY-4T vertical spindle core drilling rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.



Ⅱ. Main Sizes



The Nominal Height of Tower

10 m (32.8 feet)

The Nominal Area of Base

4×4 m (13.1×13.1 feet)

The Number of Pulleys

3 or 5 pcs

Max. Load of Mast

100 KN(22480 lbf)

The Load of Movable Work Platform

80Kg (176.4 lb)

Adjusted Angles of Drill Tower

45°-90°



Ⅲ. Main Components



The drill tower consists of base, tower body, crownblock (pulley mechanism), platform and auxiliary support.
Ⅳ. Main Characteristics
The drill tower is pyramid-mast type. Being light in overall weight, single component being light and limited in disassembly quantity, the tower is convenient for transportation and installation. The tower has its own crownblock convenient for ground installation. When the rig is moved back during operation, the tower can be inclined to make up the moved-back distance so as to guarantee the central line between the centers of the hole and pulley. The tower can be adjusted in clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle hole.
