Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4

China Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4 supplier

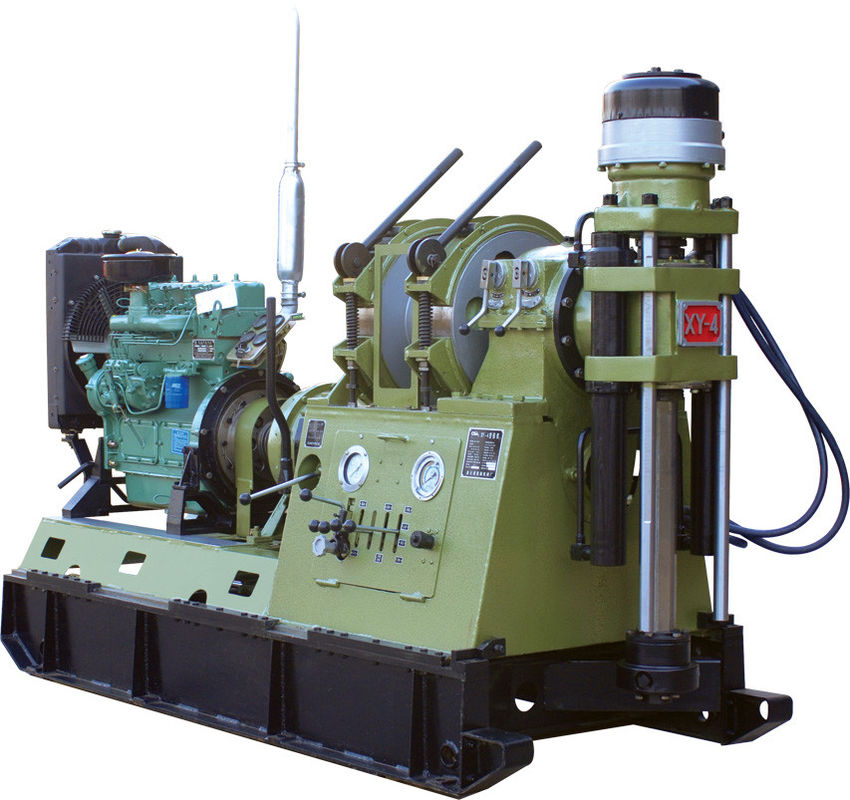

Large Image :  Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4

Product Details:

Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description





Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4



1.Specifications:

  1.  XY-4 core drill is developed to meet the needs of users and the development of geological works, it is a new type high speed core drill
  2. XY-4 core drill has been identified in 1976, and won the national silver medal in 1988
  3. Choose Deutz F4L 912 diesel engine or 30KW electric motor.
  4. The drill has 8 rotary speed stage, the maximum speed 1,588rpm, the minimum speed 101rpm, so it is suitable for various drilling for solid mineral deposits with diamond or tungsten-carbide tipped bit
  5. It can be also suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main gallery
  6. Main features:
    • There are higher rotational speed and rational range of rotational speed in the drilling machine
    • The drill is suitable in the mountain area because it can be carried easily for light weight and expedient dissimulation (can be disassembled into nine parts)
    • The drill is convenient for maintenance and repair for simple structure and reasonable layout
    • It is convenient for you to treat trouble with two reverse speeds
    • It steadies in the high drilling speed because of its smooth movement and low center of gravity
    • The operation levers are concentrated, so the operations are reliable and convenient
    • Fitted with meters, the circumstances can be grasped easily in hole.

Technical Parameters of Drill Rig:



Basic Parameters







Drilling Depth(m)







42m drill rod

1000 ~1200m

50mm drill rod

700~850m

Drilling angle 360°







Overall Dimensions (L*W*H) 2710*1100*1750 mm







Weight of the drilling rig(exclusive of power machine) 1750kg







Weight of the largest component 218kg







Gyrator of Core Drilling Rig







The rolling rate of the vertical shaft, (when revolving speed of the power machine: 1500r/min)

Low speed of clockwise rotation 101; 187; 267; 388 r/min





High speed 311; 574; 819 1191 r/min





Low speed of counterclockwise rotation 83 r/min





High speed 251 r/min





When revolving speed of the power machine: 1500r/min





Low speed of clockwise rotation 135; 250; 355; 517 r/min





High speed 415; 765; 1090; 1588 r/min





Low speed of counterclockwise rotation 110 r/min





High speed 338 r/min





Spindle stroke 600mm





Max. lifting force 80000 Newton





Max. stress 60000 Newton





When the power of power machine is 40 horsepower, the rotating speed is





Torque 1500r/min 2640; 1410; 980; 660Newton/m.





830; 440; 300; 200Newton/m





Diameter of spindle bore 68 mm





Winch: when the power of diesel engine is 40 horsepower, the rotating speed is 1500r/min

Lifting power (single rope)

30000; 16000; 11000; 7700Newton



Lifting Speed (the third layer)

0.82; 1.51; 2.16; 3.15m/s



when the power of diesel engine is 60 horsepower, the rotating speed is 2000r/min

Lifting power (single rope) )

33000; 17800; 12450; 8600 Newton



Lifting power (single rope)

1.09; 2.02; 2.89; 4.18 m/s



Diameter of rope

16mm





Drum Capacity

90m





Reel diameter

285mm





Diameter of brake valve

490mm





Width of the brake band

120mm





Shifter of Core Drilling Rig







Oil cylinder stroke

460mm





Oil pump







Output Volume

20mm/r

Rotating Speed

1500r/min

Working Pressure

20MPa

Max Pressure

25MPa

Drill Power of this Core Drilling Rig



Name

Type

Power

Rotating Speed

Weight

Motor

Y200L-4

30kW

1470r/min

260 kg

Diesel Engine

ZH4100G43

31kW

1500r/min

350 kg



2. About us



We are one of the leading manufacturers of diamond core drilling rigs in China ,



We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.



We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.



3. Service



Shipping time depends on the destination.

After we ship the goods, we will email you the shipping information, as well as tracking details.

The goods will be delivered by the most reasonable way for delivery.



 4.Warranty and After-sales services:



1.  All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.



2.  We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.



5.Feedback:



1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service



2. We care about our valued customers, and will always try to help you



6. Product view

Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4

Spindle Type Core Drilling Rig , Core Drilling Equipment XY-4
