Product Details:
|
| Product Name: | Horizontal Directional Drilling Rigs | Power Type: | Hydraulic |
|---|---|---|---|
| Model: | FDP-40/FDP-40Z | Max. Push Capacity: | 400KN (89920 Lbf) |
| Application: | Underground Pipe Laying | Material: | High-solid Steel |
| High Light: | hdd horizontal directional drilling,horizontal directional drilling machine |
||

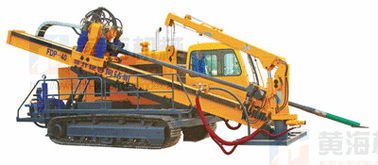

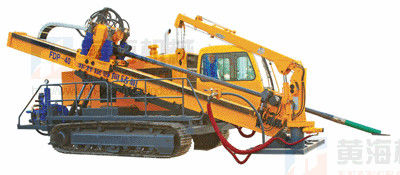

FDP-40/FDP-40Z models are full hydraulic horizontal directional drilling rigs (Trenchless)
high torque, powerful output,
reasonable structure,
advanced control mode
4.5-m –long drill rod to guarantee its high performance.
FDP-40/FDP-40Z models are full hydraulic horizontal directional drilling rigs (Trenchless), which are self-propelled and integrated with rubber crawler. Two low-speed motors drive the power head to make two-speed driving. The rigs are advanced in technology and simple in structure. The chain feed system of the motor makes the performance stable and reliable. The mast can be adjusted within the range of 8– 20°to meet the need of the drilling angle. With low center of gravity and equipped with auxiliary crane, they are stable in operation and attractive in appearance. FDP-40Z is the rig installed with automatic drill rod handling device.
Features and Benefits
FDP-40 HDD rig is mainly used for the civic construction especially underground pipe laying, and with 400KN pull capactity.
|
The Main Machine |
|
|
Power of Engine |
YC6M240 175 KW(235HP) (2200 r/min) |
|
Max. Push capacity |
400KN (89920 lbf) |
|
Max. Pull capacity |
400KN (89920 lbf) |
|
Rated Torque |
15000 N·M (11055 lbf·ft) |
|
Hollow Spindle RPM |
Lower 0-40r/min |
|
High 0-80r/min |
|
|
Feeding Stroke |
5000 mm(197 inch) |
|
Diameter of Guide Hole |
170 mm(6.7 inch) |
|
Drilling Angle |
8°20° |
|
Pressure of hydraulic system |
20Mpa(2901 psi) |
|
Traveling speed |
2 km/h(6560feet/h) |
|
Structural Style |
integrated with steel crawler, crane and mud pump |
|
Dimension (L×W×H) |
7800×2300×2350 mm(307×90.6×92.5 inch) |
|
Weight |
16000 kg(35280 lb) |
|
Crane |
2T/m(1345 lb/feet), Max Straight-arm 4.5m(14.8 feet) |
|
Mud Pump |
|
|
Specification |
BWF-400 |
|
Max. Discharge |
400 L/min (106 US Gallons/min) |
|
Peak Pressure |
10 Mpa(1450 psi) |
|
Mud Process System (Optional Part) |
|
|
Data of engine |
20.9PS petrol engine |
|
Pump parameter |
100 m3/h (3529 feet3/h) |
|
Mud processing capacity |
16 m3/h (565 feet3/h) |
|
Mud Tank |
5M3(176feet3) |
|
Weight |
500kg(1103 lb) |
|
Drilling tools and auxiliary system |
|
|
Specification of Rod |
89×4500 mm(3.5×177 inch) |
|
Guide Bit |
170 mm (6.7 inch) |
|
Reamer |
400;500;600;720;830;900mm (15.7;19.7;23.6;28.3;32.7;35.4 inch) |
|
Distributor |
60T (132300 lb) |
|
Tracker |
Optional Part |
