XY-8 SPINDLE TYPE CORE DRILLING RIG
The type of HXY-8 Core Drill Rig is a kind of core drill rig for medium and deep hole drilling using diamond and carbide-tipped bits, with mechanical transmission, spindle rotation, hydraulic feeding.
XY-8 is a type of vertical-spindle drilling rig. The drill rigs can be applied to metallic and nonmetallic solid mineral deposits prospecting; shallow strata oil and natural gas exploration. They could be used widely in geology, metallurgy, coal, hydrogeology, hydrological well and engineering and other industries fields.
The XY-8 could be used as traditional vertical-spindle drilling rig. It is the priority selection equipments and suitable for medium and deep depth hole drilling at present in China.

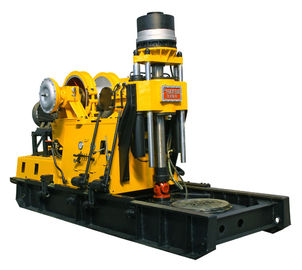

Horizontal Rig , Core Drill Rig For Metallurgy xy-8
Specifications of XY-8
|
Drilling depth |
1000—3000m(3280-9840 feet) |
|
|
Rotate peed (rpm) |
Clockwise rotation rates |
79;136;121;363;220;379;589;1011 |
|
Anti-clockwise rotation rates |
51;142 |
|
|
Diameter of drilling rod |
Φ50; Φ60Φ71Φ89Φ114mm(Φ1.97; Φ2.36; Φ2.80; Φ3.50; Φ4.49inch) |
|
|
Spindle stroke |
1000 mm(39.4 inch) |
|
|
Shift range |
690 mm(27.2 inch) |
|
|
Max.hoisting force |
300 KN(67440 IBF) |
|
|
Max.pressuring force |
141KN(31697 IBF) |
|
|
Max.single-wire hoisting force |
125KN(28100 IBF) |
|
|
Max.content of winding drum |
120m(394feet) |
|
|
Steel wire size |
21.5mm(0.85 inch) |
|
|
Hoisting speed |
0.663；1.09；1.693；2.90；1.761；3.034；4.713；8.803m/s(2.17；3.58；5.55；9.51；5.78；9.95；15.46；28.87 feet/s) |
|
|
Electromotor model |
Y2-280M-4 |
|
|
Electromotor output |
90KW(122HP) |
|
|
Electromotor rotation rates |
1480 r/min |
|
|
Diesel engine model |
Cummins 6BTA5.9-C180 |
|
|
Diesel engine output |
132kw(180hp) |
|
|
Diesel engine output |
132kw(180HP) |
|
|
Diesel engine rotation rate |
1900r/min |
|
|
Dimensions |
With electromotor 3905x1692x2603mm(153.7x66.6x102.5 inch) |
|
|
With diesel engine 4105x 1892x 2803mm(161.6x74.5x110.4 inch) |
||
|
Weight |
8200 KG(18080 IB) |
|
2. About us
We are one of the leading manufacturers of diamond core drilling rigs in China ,
We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.
We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.
3. Service
Shipping time depends on the destination.
After we ship the goods, we will email you the shipping information, as well as tracking details.
The goods will be delivered by the most reasonable way for delivery.
4.Warranty and After-sales services:
1. All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.
2. We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.
5.Feedback:
1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service
2. We care about our valued customers, and will always try to help you

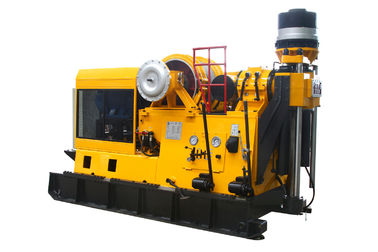

6. Product view
