HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm

HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm
HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm

Large Image :  HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm

Product Details:
Place of Origin: CHINA
Brand Name: BD
Certification: ISO,CE
Model Number: BRDHS-160
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: AS PER DETAILED INQUIRY
Packaging Details: STANDARD EXPORTING PACKAGE
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T
Supply Ability: 20 SETS PER MONTH

HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm

Description
TYPE: BRDHS-160 Range (mm): 63, 75, 90, 110, 125, 140, 160
Temperature: 170~250ºC (±5ºC), Max270ºC Power Supply: 220V/240V 50Hz/60Hz
Otal Power: 1.58kw Total Weight: 45.5kg
High Light:

plastic pipe fusion welding machine

,

plastic pipe welding equipment



HDPE manual plastic pipe welding machine for pipe diameter from Min. Φ 63 to Max. Φ160mm worked with 220V.




This portable welding machines used in the construction site and groove, for connecting PP, PVDF, PE pipes, also in the workshop production of pipe fittings.



Purpose: It is suitable for welding the plastic pipes, and making pipe fittings made of PE, PP and other plastic materials on site and in the workshop.

Characteristic:

1.The machine consists of four parts, like machine frame, cutter, electric heating plate and basket (heating plate and cutter bracket).

2. Polytetrafluoroethylene coating is used on the surface of the electric heating plate, and the independent temperature control system is used.

3.Using the electric milling cutter, it has the function of single and double side milling. The milling cutter is made of high quality steel, double blade design, and adjustable double using.

4. The main part of the frame uses the aluminum alloy material, simple structure for convenient using.



Specifications of pipe welding machine

Model BRDHS 160
Range (mm) 63, 75, 90, 110, 125, 140, 160
Temperature 170~250ºC (±5ºC), Max270ºC
Power Supply 220V/240V 50Hz/60Hz
Total Power 1.58kw
Total Weight 45.5kg
Optional Accessories Stub end holder
Data logger
Special inserts



Equipment of welding machine (220v) characteristics
1. The frame is made of high-strength and low-weight design;
2. Heating plate uses independent temperature control system, surface coated with PTFE material;
3. Single operation, suitable for complex environment;



Related complete sets of equipment:
Application: The manual pipe welding machines are suitable for HDPE, PP, PP-R, PVDF pipes and fittings. And the pipe diameter can be from 63mm to 160mm, and if our clients ask for needs, we can also customize for it.





Advantages
Professional--We are a comprehensive manufacture for pipe welding machines with R&D, production and market departments.
Customized--We are the manufacturer! Sample OEM ODM are available!
Standardization--We have the standardized production management system for mechanical products, so all of our products have been rigorously tested in the factory.
Certification--We have ISO, UKAS, ECM and quality management system certification.
High Quality--Our company uses the most advanced equipment to make the best quality products.



Our Service
We provide the presale support for all clients.
Free on-site touring and introduction of our factory.
We provide customized design for our clients.
We can guarantee on-time technical support on site according to the clients.
Close follow-up of all orders by special person and keep customers informed timely.
All after-sale request will be responded in 24 hours.



QUALITY ASSURANCCE

Quality warranty for each machine sold. Strict contract auditing involved all departments to assure the feasibility of each order.
Process design and validation before bulk production.
Strictly control on all raw and auxiliary materials, all raw materials reach the world advanced level.
On-site inspection to all processes, inspection records keep traceable for 3 years.
All inspectors are skilled with international certificates.
Qualified WPS and professional welders guarantee welding quality.
100% inspection of finished sprouts before shipment.
Advanced and complete testing and inspection equipment: electrical test, hydraulic test, milling test, welding test…
Regular training for inspection staff.
Technical support and training for all clients.

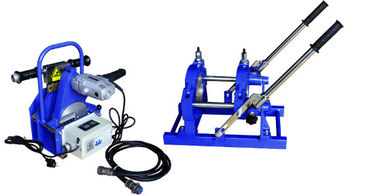

HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm 0

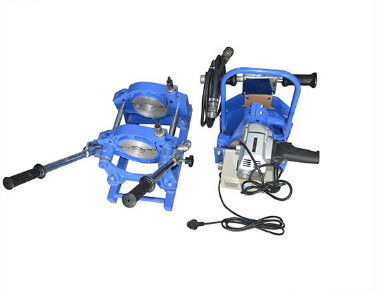

HDPE BRDHS 160 Manual Plastic Pipe Welding Machine Diameter From Min Φ 63 To Max Φ160mm 1
