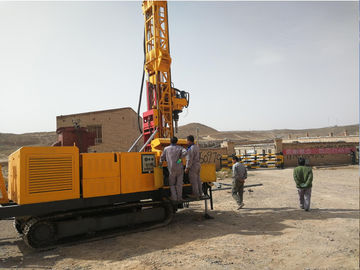

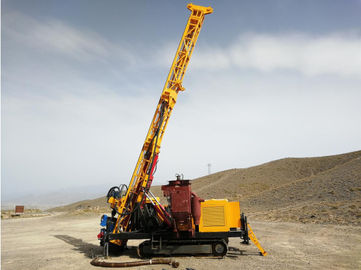

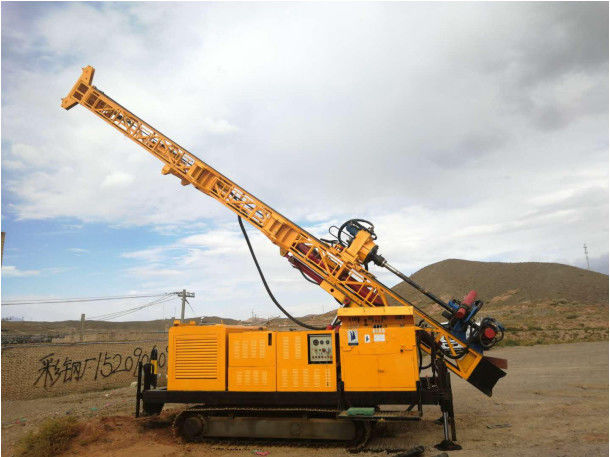

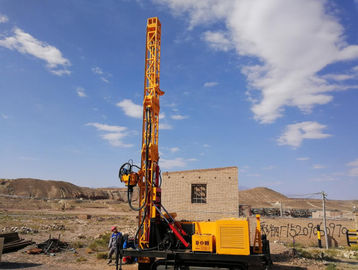

RC300 full hydraulic top drive crawler drilling rig Borehole depth 300 m
RC-300 drilling rig is full hydraulic top drive crawler drilling rig . It can be used for mining investigation, geological investigation, borehole for water well and observation well, borehole
drilling for GSHP system and so on.
All parts of the drilling rig are installed together on the turning platform with crawler chassis.
It moves convenient and has good maneuverability.
Rig with power head has long feed stroke so that it can shorten the time of installing or
unloading drill rods and improve the drilling efficiency.
Rig with full hydraulic transmission and control operates easily and flexibly. It can show
smooth operation and reliable work.
Rig with dual-channel power head has strong torque as well as pulling force. It has strong
ability to deal with accidents.
Patent design of telescoping system(National Patent: ZL03222451.6)in output shaft will
effectively project drill tools.
Machine installed a hydraulic clamping& breakout system in order to automatic wrench the
drill pipe and tools. Both assistant time and lobar intensity are reduced during the drill work.
Drill head with dual motor drive has a variable speed and wide speed range. It is suitable for
the application of pneumatic DTH hammer drilling and alloy drilling
Weight 12000 kg
Engine Power 132 kw
Overall Dimension(L*W*H)(during transportation) 7650x2250x3217 mm
Ambient temperature -10～38°C
Noise 110 dB
Specification of drill
Borehole depth 300 m
Borehole diameter 150-250 mm
Recommended drill rod φ89 114×6000 mm
Recommended casing pipe φ273, 219×2000 mm
Drill head output
Max output torque 10000 N.m
Rotary speed(work-conserving) 35/70 rpm
Rotary accelerate speed(intermittent work) 57/114 rpm
Feeding stroke 7000 mm
Feeding force 100 kN
Lifting force 160 kN
Pipe twisting machine output
Rotary speed 40 rpm
Max output torque 30000 N.m
Through-hole diameter 370 mm
Pulling force 70 kN
Wire rope diameter 19 mm
Rope capacity of drum 80 m
Pulling force 20 kN
Wire rope diameter 14 mm
Rope capacity of drum 60 m
Output volume 75+45+28 ml/r
Pressure 25 Mpa
Engine power 132 kW
Max rotary speed 2000 rpm
Grounding pressure p ＜0.05 MPa
Climb ability ≯20
