Hydraulic 13500N·M Horizontal Directional Drilling Rig

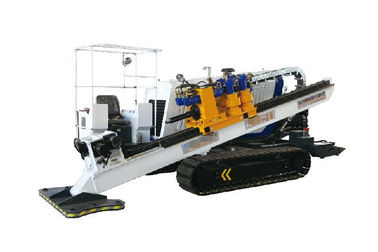

Large Image : Hydraulic 13500N·M Horizontal Directional Drilling Rig

Product Details:

Place of Origin:	CHINA
Brand Name:	SINOCOREDRILL
Certification:	CE
Model Number:	TYZ-35

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	Negotiable

Contact Now

Hydraulic 13500N·M Horizontal Directional Drilling Rig

Description

Type:	Horizontal Directional Drilling Machine ,Trenchless Rig	Warranty:	1 Year
Power:	154kw , Commins Diesel Engine	Pullback Force:	35T /350KN
Usage:	Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc.	Certificate:	CE
Color:	Customized
High Light:	13500N·M directional drilling rig , Hydraulic hdd drill rig

35Tons/ 13500N·M Horizontal Directional Drilling Rig ,154KW High Power Crawler

Main technical features:

TYZ-35 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. Both the hydraulic and electrical systems of the drilling rig adopt advanced control technology, which is comfortable to operate and uses wired remote control for walking. The main supporting parts are well-known domestic and foreign products.

2. Cummins EFI diesel engine's low emission and low noise characteristics, combined with the use of internationally advanced control technology, is not only more suitable for urban construction, but also minimizes the power consumption of the rig under no-load conditions.

3. The power head rotation adopts four-motor drive, high torque, and has two-step stepless speed regulation function.

4. The power head push-pull is driven by a four-motor equipped with reducer, gear rack transmission, good stability and high efficiency.

5. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

6. The track adopts steel track and rubber shoes, which can bear high load and walk on various roads.

7. Complete supporting drilling tools, using φ73×3000mm drill rod, and can be customized according to user requirements.

8. Equipped with wireless guide device, easy to use.

9. Optional manipulator, convenient and efficient loading and unloading of drill pipe, greatly reducing the labor intensity of workers.

Main technical specifications:

ITEM	Specification
Engine	Commins QSB5.9-C210 154KW(2200r/min)
Push/pull force	350KN
Torque	13500N·m
Spindle rotating speed	0-48/0-96r/min
Feeding stroke	3500m
Pilot hole diameter	φ130
Drilling angle	8-20°
Hydraulic system pressure	20MPa
Mud pump max flow	320L/min
Mud pump max pressure	8MPa
Rod size	φ73 X 3000mm
Walking speed	1.5-3Km/h
Size	6.7(L) X 2.25 (W) X 2.4 (H) m
Weight	10T
