6.7l 178kw 240hp Diesel Engine 2050m Core Drill Rig
Negotiable
MOQ
Negotiable
Price
6.7l 178kw 240hp Diesel Engine 2050m Core Drill Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001 ,CE
Model Number: CR16
High Light:

2050m core drill rig

,

240hp core drill rig

,

diesel engine core drill rig

Payment & Shipping Terms
Packaging Details: Standard Export Package
Delivery Time: 3 MONTH
Specifications
Type: Full Hydraulic Surface Core Drilling Rig
Model: CR16
Engine: Cummins QSB6.7 (EU Stage IIIA)
Drilling Capacity: BQ 2050M NQ 1650M HQ 1350M PQ 950M
Transport Dimensions: 5980×2240×2480mm
WEIGHT: 10500 Kg
Product Description

6.7L 178kW (240HP) Cummins Diesel Engine Full Hydraulic Core Drilling Machine 2050m


Update advanced equipment of HYDX-6  .Drilling machine .




  1. DUAL MAST RAISING CYLINDERS

Equipped with counterbalance valves for increased safety when positioning the mast.

  1. SELF-CONTAINED OPERATOR PANEL

The simple hydraulic system is easy to operate and maintain, and lift-to-shift levers provide additional operator safety.

  1. SIMPLE HYDRAULIC DESING

Dired-coupled hydraulic pumps with a PTO-driven auxiliary pump allow for easy maintenance.

  1. SOLID LATTICE MAST DESIGN

Rigid design provides superior performance and reliability even under the toughest conditions.

  1. NITRO-CHUCK

patented nitrogen gas spring jaws with hydraulic open/spring close function ensuring fail-safe operation.








Diesel Engine

ModelCummins QSB6.7 (EU Stage IIIA)
Displacement6.7L
Power178kW (240HP)
Rated RPM2000rpm



Drilling Capacity

BQ2050 m
NQ1650 m
HQ1350 m
PQ950 m



Drill Head



Rotation Motor

Two-speed Hydraulic Motor



RPM

Three Shifts

Stepless Change: 0-1250 RPM

Ratios

1st 8.2:1

2nd 4.2:1

3nd 1:1

Head Opener



sidewise sliding way with hydraulic drive



Hydraulic Chuck(PQ)



Hydraulically opened, Disc Spring Clamping, Normally C Closed Type

Axial Holding Capacity of 243000 N

Max. Torque6750 N·m
Hold Diameter121 mm
Max. Lifting capacity of Spindle250 kN

Max. Feeding Power



110 kN



Primary Pump



Hydraulic pump:

Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.

With load sensing system.

Producer: Danfoss of Denmark

1st Pump:260LPM at 31.5MPa

2nd Pump:130LPM at 31.5MPa

3rd Pump: 130 LPM at 31.5MPa



Hydraulic Tank

Capacity420 L (111 US Gallons)



Capacity of Main Hoist

Hoisting Speed (single wire)0-75 m/min(bare drum)
Hoisting force (single wire)120 kN
Steel Wire Diameter22 mm(0.86 inch)
Steel Wire Length45 m



Capacity of Wireline Hoist

Hoisting Force (single wire)15 kN(3372 lbf) (bare drum)
Steel Wire Diameter6 mm(0.24 inch)
Steel Wire Length2200 m



Mast

Mast Height9.5 m
Mast Adjusting Angle0°—90°
Drilling Angle

45º off horizontal to 90ºvertical down



Feeding Stroke3700 mm
Slippage Stroke1000 mm
Feed Pull25 ton
Feed Thrust9 ton
Rod Pull3m or 6m(9.84feet or 19.68feet)



Mud Pump

Type



Reciprocating Pump Triplex Plunger

ModelBW320
Stroke110mm(4.3 inch)
Output volume320 L/min
Discharge pressure8.0 Mpa
井口夹持器Foot ClampClamping Scope

55.5-118 mm

through hole Ф165mm



Others

Weight10.50 ton

L × W ×H )

Transport Dimensions

5980×2240×2480mm
Transport Way

Steel Crawler





*The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.

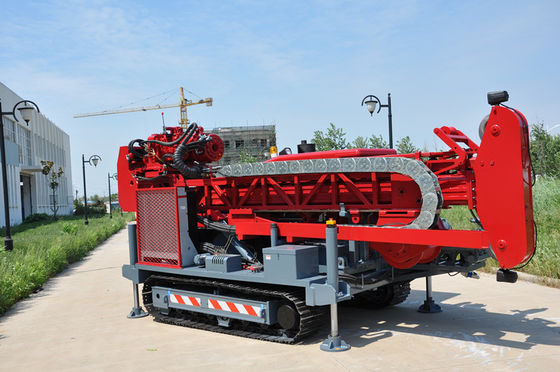

6.7l 178kw 240hp Diesel Engine 2050m Core Drill Rig 0

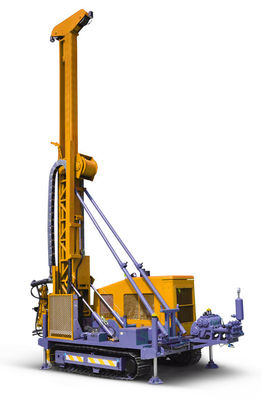

6.7l 178kw 240hp Diesel Engine 2050m Core Drill Rig 1

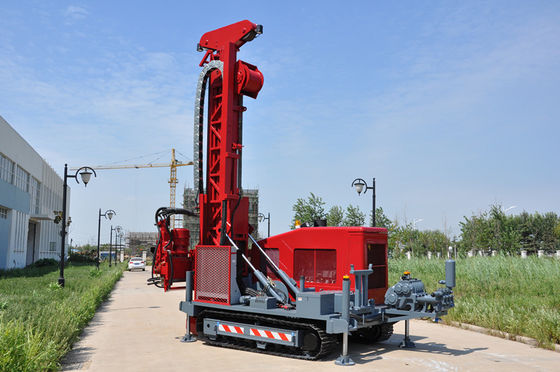

6.7l 178kw 240hp Diesel Engine 2050m Core Drill Rig 2
