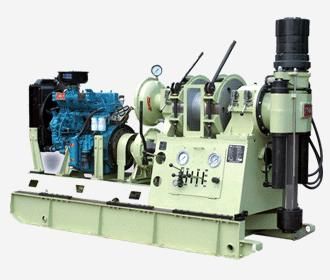

XY-44A Spindle type core drilling rig

XY-44A Spindle type core drilling rig
XY-44A Spindle type core drilling rig XY-44A Spindle type core drilling rig

Large Image :  XY-44A Spindle type core drilling rig

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

XY-44A Spindle type core drilling rig

Description
High Light:

Hydraulic drill rig

,

diamond core drilling



XY-44A SPINDLE TYPE CORE DRILLING RIG



Specification:

  1. Adapted on core drilling with tungalloy-carbid-tipped and diamond oil as well as engineering geology exploration, hydrology well drilling and basic pile engineering
  2. Fed with double cylinders that travel much longer
  3. The adopted technology can be adapted on many models, especially on large diameter drill pipe drilling that extracts the core with wire line (up part), thus it is more effective for improving drilling efficiency and decreasing the rate of trouble
  4. Hydraulic spider disk with a hydraulic lock is supplied oil in two opposite directions
  5. Strong and steady clamping force
  6. The drill is aligned a water brake
  7. Steady and secure in deep hole drilling
  8. Adopts a double-gear pump to supply oil
  9. Operates with single or double gears, so there is a low consumption of energy and a low temperature of hydraulic system oil, and the drilling is steady
  10. Hand reeling oil pump may be used to hoist the drilling tools in hole when the power engine can not operate
  11. Tight structure and reasonable layout
  12. Low centroids a long traveling distance (up to 460 mm), a reliable fixation and a good stability in high speed drilling
  13. Easy to master the hole condition with a long life anti-vibration instrument

Technical :

 Drilling depth

 Core drilling

 750--1400m

 Foundation stake drilling

 100m

 Hydrological drilling

 300m

 Drilling angle

 0-360°

 Max. torque

 3.2kN.m

 Spindle stroke

 600mm

 I.D of spindle

 93mm

 Max. Lifting capacity of spindle

 120kN

 Max. Pressuring force of spindle

 90kN

 Max. Hoisting force

 45kN

 Power

 37kW

 Dimensions(L×W×H)

 2730×1100×1860mm

 Weight(without power unit)

 2150kg























































































2. About us



We are one of the leading manufacturers of diamond core drilling rigs in China ,



We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.



We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.



3. Service



Shipping time depends on the destination.

After we ship the goods, we will email you the shipping information, as well as tracking details.

The goods will be delivered by the most reasonable way for delivery.



 4.Warranty and After-sales services:



1.  All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.



2.  We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.



5.Feedback:



1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service



2. We care about our valued customers, and will always try to help you



6. Product view

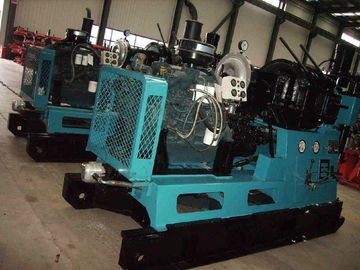

XY-44A Spindle type core drilling rig 0
