Product Details:
Place of Origin: CHINA
Brand Name: TYZ
Certification: ISO9001
Model Number: TSJ-300X50
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Based on detailed order
Packaging Details: SEAWORTHY DELIVERY PACKAGE
Delivery Time: 3 months
Payment Terms: L/C, T/T
Supply Ability: Based on detailed order

300m Crawler Chassis Or Truck Chassis Water Well Drilling Rig Borehole Drilling Equipment 85kw

Description
Drilling Diameter: 350mm Drilling Depth: 300m
Model: TSJ-300X50 Type: Multi - Function Borehole Water Well Drilling Rig
Diesel: Yuchai Diesel Engine 85~90kw Mast Height (fully Extended): 6.5m
Maximum Lift Capacity: 15ton
High Light:

truck chassis borehole drilling equipment

,

crawler chassis borehole drilling equipment

,

85kw borehole drilling equipment

TSJ-300X50 Multi - Function Water Well Drilling Rig With Crawler  Or Truck Chassis





TSJ-300X50 Water well drilling rig is a newly developed multi-functional full hydraulic drilling rig, the rig is suitable for plains, hilly land, hot and cold regions, and the machine is tracked with self-propelled chassis, available in wells, core exploration, shallow coal bed methane and other construction.





It could meet to mud drilling tamping pipe hammer drilling, air-lift reverse circulation drilling and other drilling methods according to users’ requirements. The rig is low labor intensity, high drilling efficiency and high security for the workers.





Max Drilling Depth :300m Max Drilling hole diameter::350 mm
Chassis

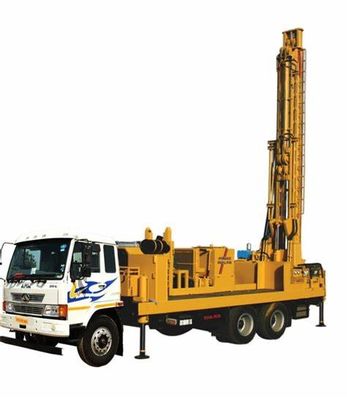

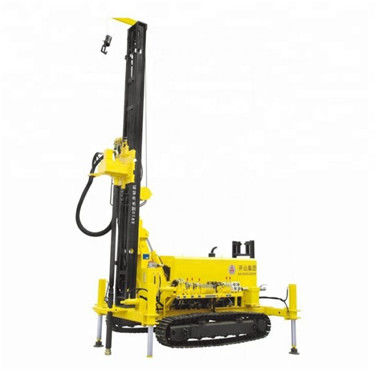

Crawler chassis or off-road truck chassis
Chassis Moving Speed 0-2.5Km/h Truck Speed : 90 km/h
Power System
Engine: Yuchai diesel engine
Power 85-90 Kw
Fuel tank capacity 150 L
Mast
Mast height (fully extended) 6.5m
Power head stroke 4.5m
Mast slip stroke 1.25m
Feeding device
Maximum lift capacity 15 Ton
Maximum feed capacity 7.5 Ton
Maximum feed speed 32 m/min
Maximum lifting speed 16m/min
Power head rotation 2 Gears
1 gear speed
  1. 70r/min 0- 5100 Km
2 gear speed
  1. 140r/min 0- 2500 Km
Power head deflection Angle 0-90º
Main Winch (optional)
Single rope tension 2 Ton
Dia.of rope 12mm
Length.of rope 45M
Rod Wrench
Adopt standard clamping teeth of oil drilling rig
Suitable diameter 50-127 MM
Maximum Torque 10000 Nm

Mud Pump

Flow: 0 – 320L/min

Maximum pressure





0-8 MPa

Dimensions and weight
Length in working state/in transit state 8.5m
Working state width/transport state width 2.65 m
Height in working condition/transport condition 8.5m / 3.6m
Weight of main machine Ton





Main Features:



The maximum diameter of drilling hole :350mm



The maximum hole depth : 300m



Multi - Functional : mud drilling ,air drilling , DTH drilling



Maximum hoist capacity 15ton



Full hydraulic drive ,smooth and reliable operation



American hydraulic system



Fast Feed and lifting function reduce the time of drilling



Crawler chassis or truck mounted two options









300m Crawler Chassis Or Truck Chassis Water Well Drilling Rig Borehole Drilling Equipment 85kw 0

300m Crawler Chassis Or Truck Chassis Water Well Drilling Rig Borehole Drilling Equipment 85kw 1





300m Crawler Chassis Or Truck Chassis Water Well Drilling Rig Borehole Drilling Equipment 85kw 2
