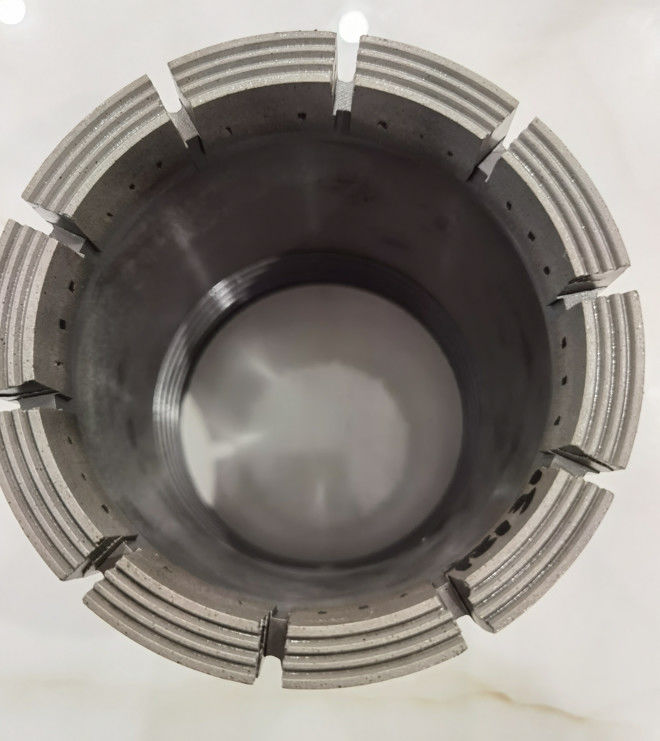

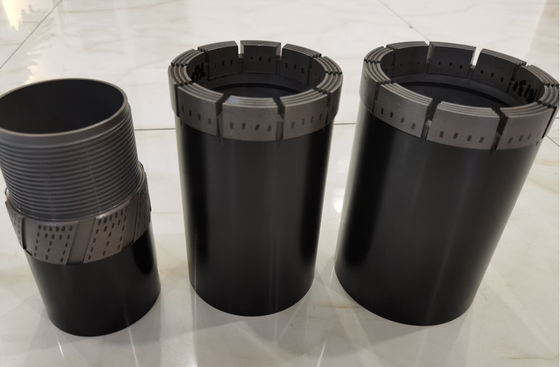

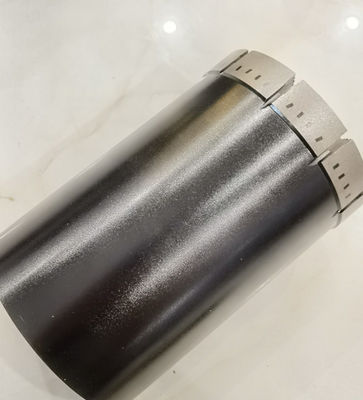

PWL (PQ ) Impregnated Diamond Core Drill Bits With High Quality Synthetic Diamond

Description of Goods

Our impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action.

We offer crown depths of 14MM.The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Standard : To cooperate with Q series drilling tools,bits are designed on basis of different stratum condition. Our company also design and produce non-standard drilling bits according to customer's special requirements.

Recommendation : When hardness of stratum is high,low grade drilling bits are recommended to ensure matching of stratum.

Specifications

Product Name: PWL(PO) Impregnate Diamond Core Drill Bit

Inner diameter (mm):122mm

Outer diameter (mm):85mm

Crown Height: 14mm

SINOCOREDRILL offers crown depths of 14MM .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways: 10

Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix: series 1~15

SINOCOREDRILL impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.

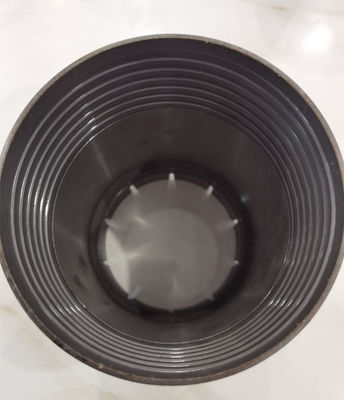

Threads:

Standard Q threads as well as thread types required by clients are available

Connection: PQ core barrel

Drill rig type: Core drilling rig
