Product Details:
|
| Type: | Spindle Core Drilling Rig | Model: | XY-4 |
|---|---|---|---|
| Drilling Depth: | 1000m | Max Hoist Lifting Capacity: | 37 KN |
| Diesel Engine: | 40 KW | Ratory Speed: | 2000 Rpm |
| High Light: | 1000m geological drilling rig,spindle core geological drilling rig,mechanic hydraulic transmission geological drilling rig |
||

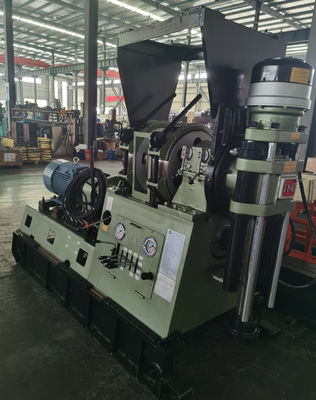

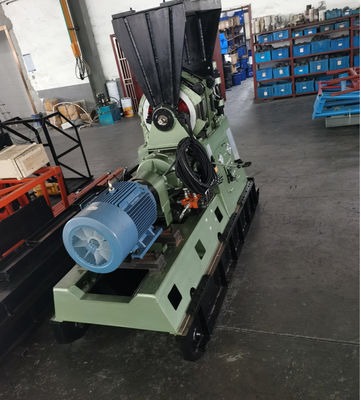

XY-4 Portable Core Drilling Rig Hole Depth 1000m For Petroleum Natural Gas
Description:
1. XY-4 core drill is developed to meet the needs of users and the development of geological works.It is easy to operate and disassemble,
convenient to transport and maintain.Its design is advanced,reasonable and compact.
2. XY-4 core drill has won the national silver medal in 1983.
3. The drill has 8 rotary speed stage, the maximum speed 1,588rpm, the minimum speed 135rpm, so it is suitable for various drilling for solid
mineral deposits with diamond or carbide bit.
4. It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.
Quick Detail:
1. XY-4 is a mechanical driven and hydraulic fed and high rotary speed of core drill.
2. It is easy to operate and disassemble,convenient to transport and maintain.
3.It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.
Applications:
1. Exploration of superficial-zone petroleum and natural gas.
2. Engineering geological exploration.
3. Exploration of mine workings ventilation and water discharge tunnel drilling.
| Specification: | |||
| Hole depth | 1000m | Rod dia | 43mm |
| Hole depth | 700m | Rod dia | 50mm |
| Hole angle(°) | 0-360° | ||
| Spindle speed | Forward speed:135;250;355;517;415;765;1090;1588rpm | ||
| Reverse speed:110;338rpm | |||
| Stroke | 600mm | ||
| Max .lifting capacity | 72KN | ||
| Max .feeding capacity | 54KN | ||
| Hoist (while driven by diesel | Max .lifting capacity | 30KN | |
| Engine) | (single line): | ||
| Lifting speed(the third layer): | 1.09;2.02;2.89;4.18m/s | ||
| Retraction cylinder stroke | 400mm | ||
| Distance between drill and hole | 250mm | ||
| Power | Electric motor: | 30kw,1470rpm | |
| Diesel engine | 40kw,2000rpm | ||
| Weight (not include engine) | 1500kg | ||
| Dimensions (L×W×H) | 2640×1100×1750mm | ||
