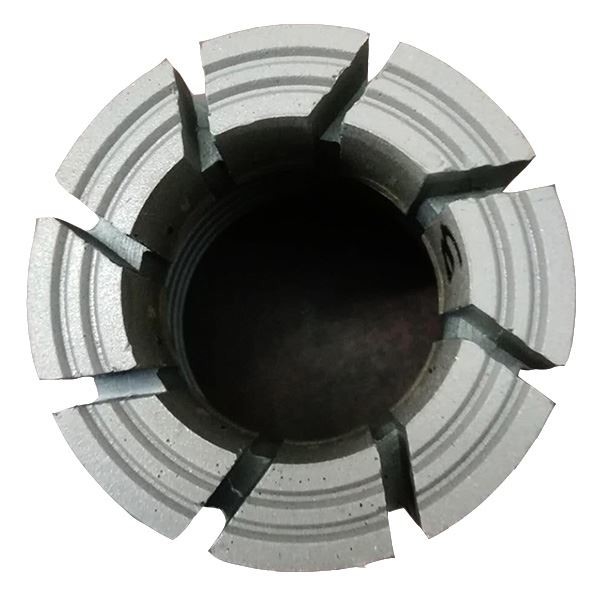

Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation

Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation
Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation

Large Image :  Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: ISO9001
Model Number: BQ NQ HQ PQ
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: BASED ON DETAILED ORDER
Packaging Details: EXPORT STANDARD
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T
Supply Ability: 1000/MONTH

Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation

Description
TYPE: Impregnated Diamond Core Drilling Bits Crown Type: Spiral / Vortex
Crown Height: 14mm, 8~16mm Can Be Customized Advantage:: Suitable For Soft To Medium Hard Rock Formations
Size: AQ BQ NQ HQ PQ HS CODE: 820719
COLOR: BLACK Standard: DCDMA
High Light:

HQ Impregnated Diamond Core Bits

,

14mm crown Diamond Core Bits

,

Vortex Crown HQ Core Bits

Spiral Type Vortex Crown Used in Rock Formation HQ Impregnated Diamond Core Drilling Bits



Sizes: AQ BQ NQ HQ PQ AQ-WL BQ-WL NQ-WL HQ-WL PQ-WL
Crown Profile: Vortex / Spiral
Matrix Height: standard 14mm, 8~16mm can be customized
Advantage: suitable for soft to medium hard rock formations


Impregnated bits can penetrate a broad range of formations from the softest to the hardest rocks. They are manufactured with very small, high quality synthetic diamonds mixed evenly through a tungsten carbide matrix. During drilling the matrix wears away evenly resulting in continuous exposure of new, sharp diamond points throughout the life of the bit.

All impregnated bits have T.C. and diamond gauge protection. The optimum diamond size, concentration and matrix composition varies according to the hardness and abrasiveness of the rock formations to be drilled.





Advantages:



1. Super long life

2. High drilling speed

3. Excellent gage protection

4. Widely used (suitable for drilling all kinds of rocks)

5. Low cost

6. Can be operated under low pressure and speed





Exploration Drilling Products: The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the crown contains a uniform distribution of these crystals that are embedded in a powdered metal bond. The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action. Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum. The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.







Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation 0







Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard: 59, 76, 93, 112, 132, 152 mm







Our products include:



Q series diamond bits: AQ, BQ, NQ, HQ, PQ, BQ3, NQ3, HQ3, PQ3

T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

T6 Series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101

Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW

Drill Rods: BQ, NQ, HQ, PQ drill pipes; BW, NW, HW, PW casing pipes; NWT, HWT, PWT casing pipes; etc.

Wireline Core Barrels: BQ, NQ, HQ, PQ double tube core barrel; T2 series core barrel; T6 series core barrel; etc.

Core Drilling Rig: spindle type diamond core drilling rig, hydraulic diamond core drilling rig, underground core drilling rig, etc.



Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation 1

Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation 2

Spiral Type Vortex Crown HQ Impregnated Diamond Core Bits For Rock Formation 3
