Product Details:
|
| Type: | WIRE LINE DRILL ROD | Material: | 30CrMnSia XJY850 |
|---|---|---|---|
| SIZE: | BQ NQ HQ PQ | Length: | 3m / 1.5m |
| Standard: | DCDMA | Country: | China |
| Application: | CORE DRILLING | ||
| High Light: | HTW Wireline Drill Rods,NTW Wireline Drill Rods,HTW Thin Wall Drill Rods |
||

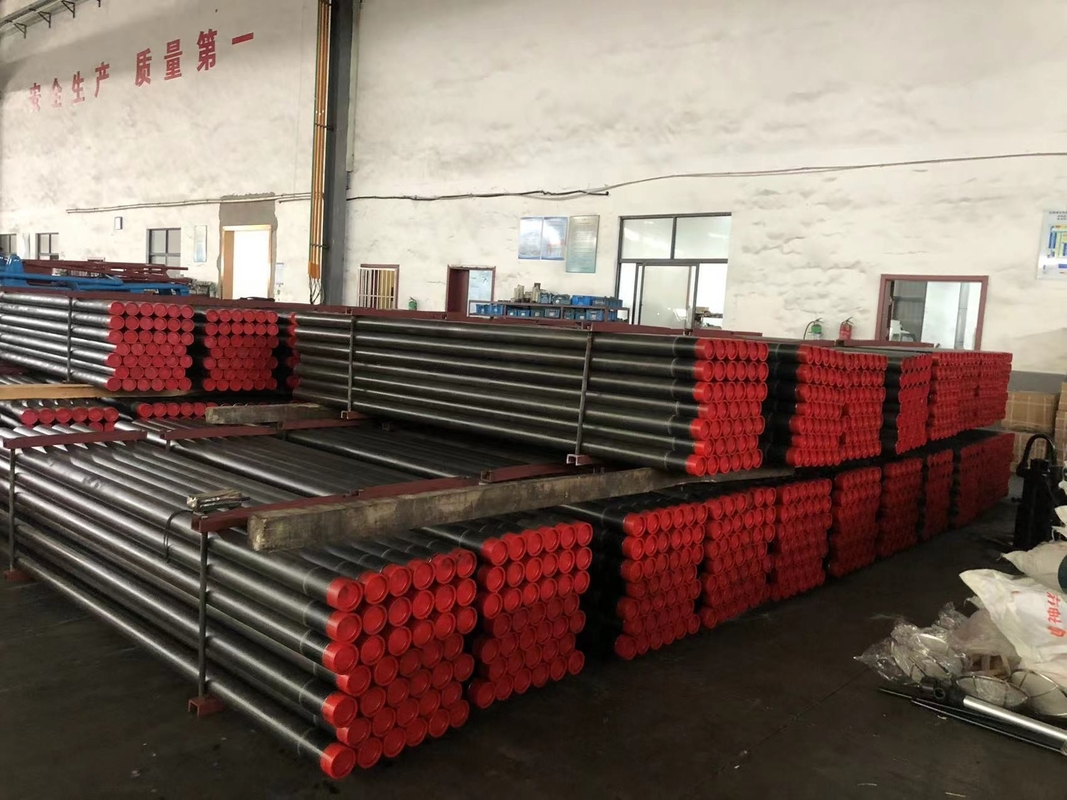

Portable Drilling Bao Steel BTW / NTW / HTW Thin Wall Drill Rod Wireline Drill Rods With Heat-Treated Ends
| Size | O.D.(mm) | I.D.(mm) | Weight/3m (kg) | Weight/1.5m (kg) |
| BTW | 56.3 | 48 | 15.65 | 7.83 |
| NTW | 73.3 | 64 | 22.91 | 11.46 |
| HTW | 91.3 | 81 | 30.75 | 15.38 |
Raw materials:
We only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.
Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.
Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.
Our Services:
Provide the technical design and solutions;
Designing and manufacturing of non-standard equipment;
Professional technical training and guidance on site according to the contract;
Supply accessories at any time;
Tele-technical consulting and services;
Other special technical service according to client's requirements.
Quality Assrance:
Strict contract auditing invloved all departments to assure the feasibility of each order.
Process design and validation before bulk production.
Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level.
On-site inspection to all processes, inspection record keep traceable for 3 years.
| size | Diamond core bit / reaming shell | Drill rod | Material | Drill Depth m | ||
| Bit -OD mm IDmm | Reaming shell -OD mm | OD mm |
ID mm |
|||
| BTW | φ59.56/42.1 | φ60.3 | φ56.3 | φ48 | 30CrMnSiA/XJY850 | 1000 |
| NTW | φ75.31/56.1 | φ75.8 | φ73.3 | φ64 | 30CrMnSiA/XJY850 | 1100 |
| HTW | φ95.57/71.1 | φ96.3 | φ91.3 | φ71 | 30CrMnSiA/XJY850 | 1200 |
| AC(AQ) | φ47.6/27 | φ48 | φ44.5 | φ34.9 | 30CrMnSiA/XJY850 | 1000 |
| BC(BQ) | φ58.5/36.5 | φ60 | φ55.6 | φ46 | 30CrMnSiA/XJY850 | 1200 |
| NC(NQ) | φ74.6/47.6 | φ75.8 | φ69.9 | φ 60.3 | 30CrMnSiA/XJY850 | 1500 |
| HC(HQ) | φ95.6/63.5 | φ96 | φ88.9 | φ 77.8 | 30CrMnSiA/XJY850 | 1800 |
| PC(PQ) | φ122/85 | φ122.6 | φ114.3 | φ103.2 | 30CrMnSiA/XJY850 | 2200 |
| SQ | φ150/110 | φ150.5 | φ140.3 | φ146 | 30CrMnSiA/XJY850 | 2200 |
| XZS57 | φ57/35 | φ57.5 | φ55 | φ44 | .45MnMoB | 2200 |
| S75 | φ75/49 | φ75.5 | φ71 | φ61 | .45MnMoB | 1200 |
| S75A | φ76/49 | φ76.5 | φ71 | φ60 | 45MnMoB | 2000 |
| XZS75 | φ76/46 | φ76.5 | φ71 | φ58 | .45MnMoB | 2800 |
| XZNH | φ76/46 | φ76.5 | φ71 | φ58 | 30CrMnSiA/XJY850 | 3000 |
| S95 | φ95/64 | φ95.5 | φ89 | φ79 | .45MnMoB | 1000 |
| S95A | φ95.6/63.5 | φ96 | φ89 | φ78 | .45MnMoB | 2000 |
| ZS95B | φ95.6/63.5 | φ96 | φ91 | φ79 | .45MnMoB | 2300 |
| XZHH | φ95.6/63.5 | φ96 | φ91 | φ79 | 30CrMnSiA/XJY850 | 3200 |
| S110 | φ114/80 | φ114.5 | φ110 | φ98 | .45MnMoB | 1600 |
| S130 | φ133/100 | φ133.5 | φ129 | φ117 | .45MnMoB | 1700 |
