BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench

BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench
BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench

Large Image :  BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO9001
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: Negotiable
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T, L/C
Supply Ability: Based on Detailed Order

BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench

Description
TYPE: Diamond Outer/ Inner Pipe Tube Circle Wrench Size: BQ NQ HQ PQ
Material: Diamond Alloy Steel Processing Type: Casting
Standard: DCDMA ATLAS COPCO , BLY Function: Screw/unloading Rod/casing
Application: Well Drilling, Coal Mining, Well Drilling
High Light:

PQ Pipe Circle Wrench

,

Diamond Tube Circle Wrench

,

inner Pipe Tube Circle Wrench



Wireline Drilling Tools BQ NQ HQ PQ Quality Diamond Outer/ Inner Pipe Tube Circle Wrench





The diamond circle wrench has well-proportioned diamond distribution. And the diamond is wearable and hard to fall off. The circle wrench won't slide when using. Therefore, it can’t damage tubes and drill tools have a long service time. We also offer many specifications and size according to clients' needs.



1. It is used to tighten or loose the tubes during drilling.



2. Type:



(1)Wireline Inner/outer tube wrenches,



(2)Pipe wrenches



(3)Circular Wrenches



(4)Rod Wrenches



Product Advantages:



1. full inner/outer tube wrench sizes ( AWL, BWL, NWL, HWL, PWL, BTW, NTW; ).



2. we have in stock all tube wrench sizes in stock.



3. long bit life and good performance.



4. cost effective;





Wireline Inner/Outer Tube Wrenches:

BQ NQ HQ PQ



Pipe Wrenches:

18'' 24'' 36'' 48''



Circular Wrenches:

BW NW HW PW





57/73mm 73/89mm 89/108mm 108/127mm 127/146mm 146/168mm 168/194mm



Rod Wrenches:

BQ NQ HQ PQ 42mm 50mm





Series Model Drill BIt(mm) Reamer Outer Tube Inner Tube Unit Weight
  Inner Diameter Outer diameter Outer Diamond Outer Diameter Inner Diameter Outer Diameter Inner Diameter KG/Set
Q Series Core Barrel BQ 36.5 59.5 60 57.2 46 42.9 38.1 45
NQ 47.6 75.3 75.9 73 60.3 55.6 50 65
HQ 63.5 95.6 96 92.1 77.8 73 66.7 103
PQ 85 122 122.6 118 103 95.3 88.9 142





We offer a complete line of single & double and triple tube core barrels, which will provide superior performance and obtain the full recovery of the sample in any application of diamond core drilling.



Using a wireline system , core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. this has big cost advantages when drilling deep holes for mineral exploration.



The core barrel assembly is composed of the inner-tube group and outer-tube group.



The inner-tube group collects the core samples during the drilling process and is independent of the outer-tube gourp.



The outer-tube gourp always remains at the buttom of the hole and houses the inner-tube group during the drilling process.



The standard wireline Double tube inner-tube gourp is composed of Head Assembly, Inner tube, Core lifter case , Core lifter, Stop ring.



The outer-tube group is composed of the remain of the core barrel components: Locking coupling, Adapter coupling, Outer-tube, Landing ring, Inner tube stabilizer.



Standard Wireline Double tube Core Barrels are ideal for use in most of the drilling conditions and are available for application in standard hole sizes( B,N,H,P).

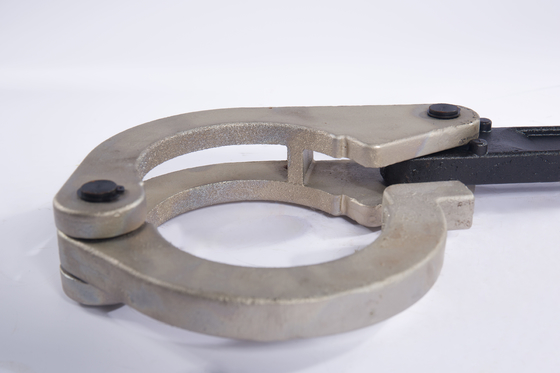

 BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench 0

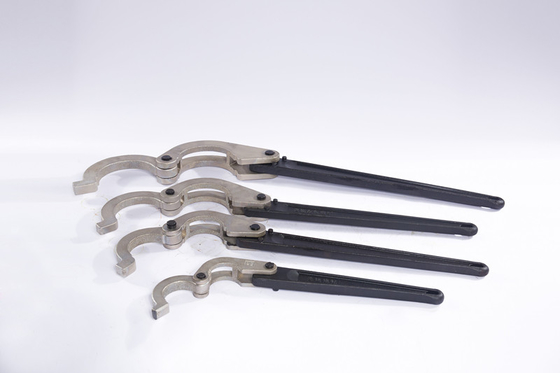

BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench 1

BQ NQ HQ PQ Diamond Outer Inner Pipe Tube Circle Wrench 2
