High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit

High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit
High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit

Large Image :  High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit

Description
High Light:

core hole drill bits

,

diamond products core bits

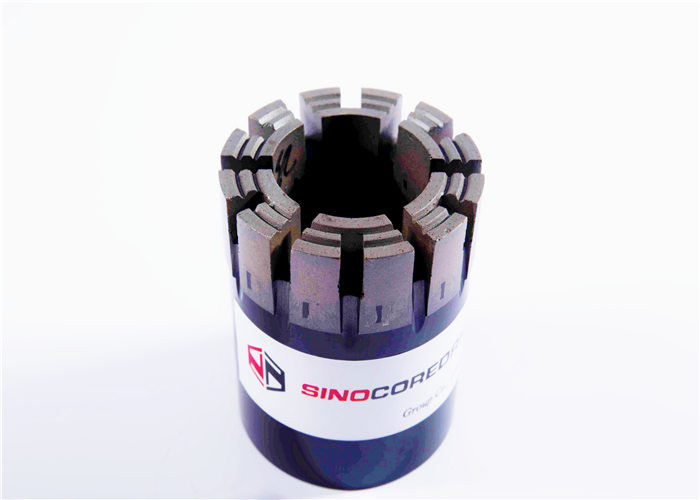

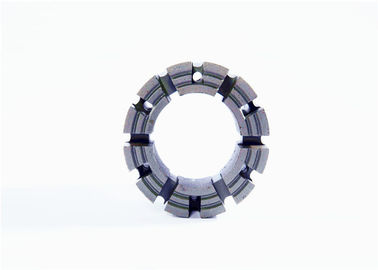

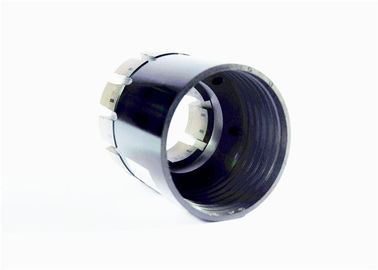

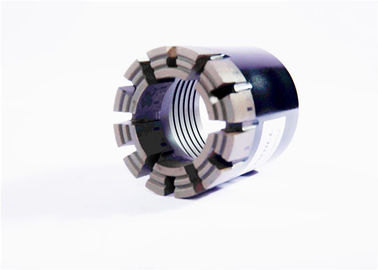

High Performance 14MM Core Drill Bits turbo / Impregnated diamond core drilling Bit




Impregnated  core bits are widely used in mineral exploration industry, site investigation, etc.
The impregnated diamond core bit has emerged as the most commonly used type in the mineral exploration industry. The advantages of using impregnated diamond core bits over bits manufactured with other cutting media include:
An extremely wide range of application .
A simple crown geometry that makes them less susceptible to in-hole damage than bits produced with other types of cutting media and as such are more tolerant of changing or banded geological formations.
Their multi-layered cutter arrangement results in better overall bit life than bits produced with other types of cutting media. They are particularly well suited for drilling in hard, consolidated, non-abrasive formations.

Size:
Longlife  diamond core bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
We could offers crown impreg depths of  9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix:
The impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.


Threads:
standard Q threads as well as thread types required by clients are available.



Series number

Rock

11

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

10

magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate,taconite

9/10

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

9

andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro,rhyolite,diorite

8

dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt

7/8

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

7

dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite,andesite,pegmatite,hematite

6/7

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

6

med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite,marble,peridotite

5

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

4

claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone

3

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

2

soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits,calcitic limestone

1

sand,soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist


Size Available as followings:
AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131
T series: T36, T46, T56, T66, T76, T86
Non-standard also can be made as your demand

High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit 0High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit 1High Performance 14MM Core Drill Bits Turbo / Impregnated Diamond Core Drilling Bit 2
