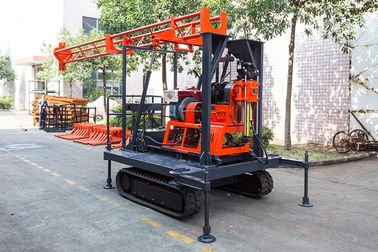

Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine

Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine
Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine

Large Image :  Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: XZL-200
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T

Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine

Description
High Light:

Hydraulic drill rig

,

core drill rigs

Light Portable Core Drill Rig Crawler-Mounted Engineering Drilling Machine







Introduction





XYL-200 Crawler engineering drilling rig is a light portable multi-function geotechnical engineering drilling machine, which is developed on the basis of the origin model GY-200-1A with features of crawler moving, hydraulic tower erection or folding. It is mainly used for geotechnical investigation in field of industrial and civil construction of buildings, railways, bridges, hydropower, and also for small diameter miro-pile drilling. The machine is extremely good with high density drilling holes in an area.









Main Features:



  1. Drilling speed range is big,speed threshold is arranged reasonably
  2. Low drilling speed, big torque, can be used for sampling and micro-piling hole drilling
  3. Installed with movable oil tank to make the machine slip distance to be 300mm,very convient for lifting and downloading drilling tools
  4. Hydraulic oil feeding by operating the cylinder,making the drilling more easy and efficient and less man power needed.
  5. Compact tower lifting and falling operated by hydraulic valve is very stable and safe
  6. Crawler-mounted , very convient to drive and move
  7. Compact designed, the mud pump can be installed to the machine , meanwhile drilling tools can also loaded to the Crawler.



Basic Data:



1,Drilling-capability
Drilling Dia(mm) 300 76 46
Drilling Depth (m ) 60 225 290
Rod Dia (mm) 50 42
Vertical Angle range 0°~360°
Distance Away from Hole 270mm
2,Wheel
Spindle Speed(r/min) Forward 900 475 388 205 157 68
Reverse 256 85
Maximum Torque 2000N·m
Spindle Stroke 400mm
Maximum Cylinder lifting force 29KN
Maximum Cylinder driving force 39KN
3,Hoist
BobbinDiameter φ135mm
Rope Diameter φ12.5mm
Rope Capacity 30m
Lifting Capacity(single pipe) 30KN
Bobbin linespeed (the second layer)(m/s) 0.27 0.64 0.83 1.58 1.64
4,Oil Pump
Type CBF-F420-ALPL Wheel oil pump
Displacement 20mL/r
Normal Rated Speed 2500r/min
Normal Pressure 20MPa
Maximum Pressure 25MPa
5,Power TYPE Rated Power Rated Speed Weight
(1) Motor Y160L-4 15KW 1460r/min 144kg
(2)Diesel Engine ZS1110 14.7KW 2200r/min 180kg
6.Drilling Tower
Vertical height 7.2m
Hoisting height 6.8m
Weight 320kg
7,Chassis
Type LDZ3-1300
Speed 1.5km/h
Permissible Gradient 20°
Authorized Payload 3.2t
System Pressure 16MPa
8,Dimensions 3800×2170×3050mm
9,Weight 2.2t
