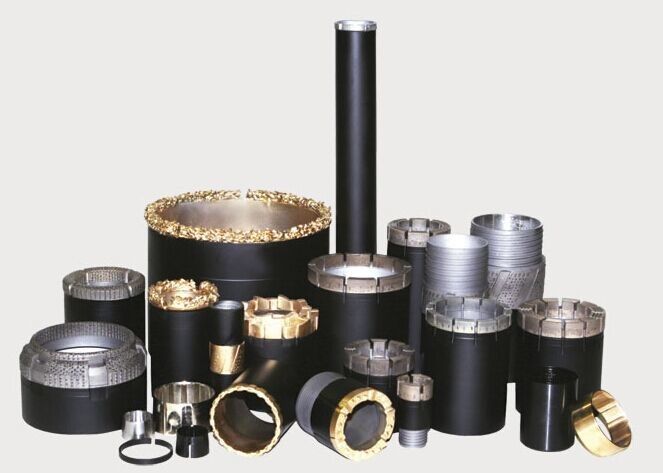

Geological Exploration Wireline Diamond Core Drill Bit With Long Working Life , Fast Speed

China Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed supplier
Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed supplier Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed supplier Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed supplier

Large Image :  Geological Exploration Wireline Diamond Core Drill Bit With Long Working Life , Fast Speed

Product Details:

Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: ISO 9001; CE
Model Number: BWL NWL HWL PWL

Payment & Shipping Terms:

Minimum Order Quantity: N/M
Packaging Details: Exporting Seaway Packing ( Carton / wooden case )
Delivery Time: 5-7 Working Days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Material: Sythetic Diamond Available Size: BQ NQ HQ PQ
Crown Height: 9mm,10mm, 12mm, 14mm Waterways: 8/10
Matrix Hardness: F1-F14 Standard: DCMDA
Crown Profile: Standard / Serrated W Waterway Configurations: Standard
Size: 95.6mm/63.5mm Weight: 2kgs
Color: Black/ As Per Required Use: Mining Exploration, Geological Exploration

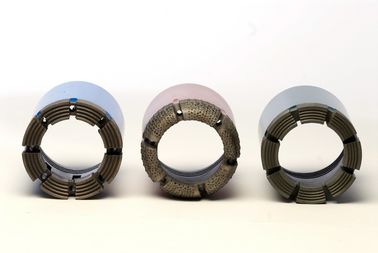

HWL ( HQ ) Impregnated Diamond Core Drill Bits With High Quality Synthetic Diamond





Description of Goods



sinocoredrill's impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.



Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.



We offer crown depths of 14MM.The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.


Standard : To cooperate with Q series drilling tools,bits are designed on basis of different stratum condition. Ourcompany also design and produce non-standard drilling bits according to customer's special requirements.



Recommendation : When hardness of stratum is high,low grade drilling bits are recommended to ensure matching of stratum.




Specifications



Size Bit O.D. Hole Diameter Bit I.D. Core Diameter Reaming Shell O.D.
INCHES MM INCHES MM INCHES MM
AQ 1.870/1.880 47.50/47.75 1.057/1.067 26.85/27.10 1.885/1.895 47.88/48.13
LTK48 1.870/1.880 47.50/47.75 1.384/1.394 35.15/35.41 1.885/1.895 47.88/48.13
BQ 2.340/2.350 59.44/59.69 1.428/1.438 36.27/36.53 2.355/2.365 59.82/60.07
BQ3 2.340/2.350 59.44//59.69 1.315/1.325 33.40/33.65 2.355/2.365 59.82/60.07
NQ 2.960/2.970 75.18/75.44 1.870/1.880 47.50/47.75 2.975/2.985 75.57/75.82
NQ2 2.960/2.970 75.18/75.44 1.990/2.000 50.65/50.80 2.975/2.985 75.57/75.82
NQ3/NQTT 2.960/2.970 75.18/75.44 1.770/1.780 44.96/45.21 2.975/2.985 75.57/75.82
NMLC 2.960/2.970 75.00/75.44 2.042/2.052 51.87/52.12 2.975/2.985 75.50/75.82
HQ 3.755/3.770 95.38/96.00 2.495/2.505 63.38/63.63 3.775/3.790 95.89/96.27
HQ3/HQTT 3.755/3.770 95.38/95.57 2.401/2.411 60.99/61.24 3.775/3.790 95.89/96.27
PQ 4.795/4.815 121.80/122.30 3.340/3.350 84.84/85.09 4.820/4.835 122.43/122.81
PQ3 4.795/4.815 121.80/122.30 3.265/3.275 82.93/83.19 4.820/4.835 122.43/122.81
T2-76 2.987/2.997 75.87/76.12 2.424/2.434 61.56/61.82 2.999/3.009 76.17/76.42
T2-86 3.381/3.391 85.87/86.12 2.818/2.828 71.56/71.82 3.393/3.403 86.17/86.42
T2-101 3.970/3.982 100.84/101.14 3.290/3.300 83.56/84.00 3.984/3.994 101.19/101.44
T6-101 3.970/3.982 100.84/101.14 3.105/3.115 78.88/79.13 3.984/3.996 101.21/101.51
T6-116 4.560/4.575 115.80/116.18 3.657/3.667 92.88/93.13 4.575/4.590 116.21/116.59
T6-131 5.150/5.165 130.80/131.18 4.247/4.257 107.88/108.13 5.165/5.180 131.21/131.59
T6-146 5.740/5.755 145.80/146.18 4.837/4.847 122.88/123.13 5.757/5.772 146.23/146.61
HMLC 3.858 98.00 2.500 63.50 3.878 98.50

















































Advantages





  • High quality drilling equipment;
  • Full technical support and service;
  • Spare parts, tools and consumable materials
  • Training and consulting services
  • International sales and dealership agencies;



Through innovative products and service, Sinocoredrill has brought its customers the sustainable developed solutions that can improve their productivity. And through the close cooperation with customers and business partners, Sinocoredrill is making continuous innovation for achieving its goal of superior productivity.



Our Technician and manager groups are all with more than ten years’ experience on Developing, researching and producing exploration products. Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter.



The mission of the company is to provide high-quality drilling equipment that is good value for money and to help the clients to increase their profit in business.

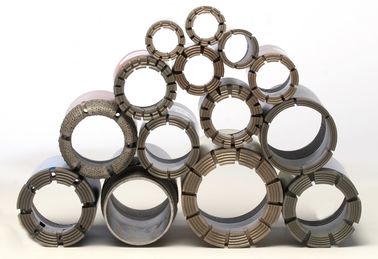

Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed









Warranty and Service



We always concerned about our clients and provides them with warranty and service support.



The factory ensures equipment warranty for the major assemblies and units efficient for 12 months. The clients are supplied with all needed spare parts, tooling and auxiliary facilities.



The authorized dealers possess service centers to execute product warranty liabilities, after-sales service and equipment repair. The clients’ staff is also provided with theoretical and practical company instructions and consultations on all matters concerning execution of work and equipment operation.



Geological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast SpeedGeological Exploration Wireline Diamond Core Drill  Bit  With Long Working Life , Fast Speed
