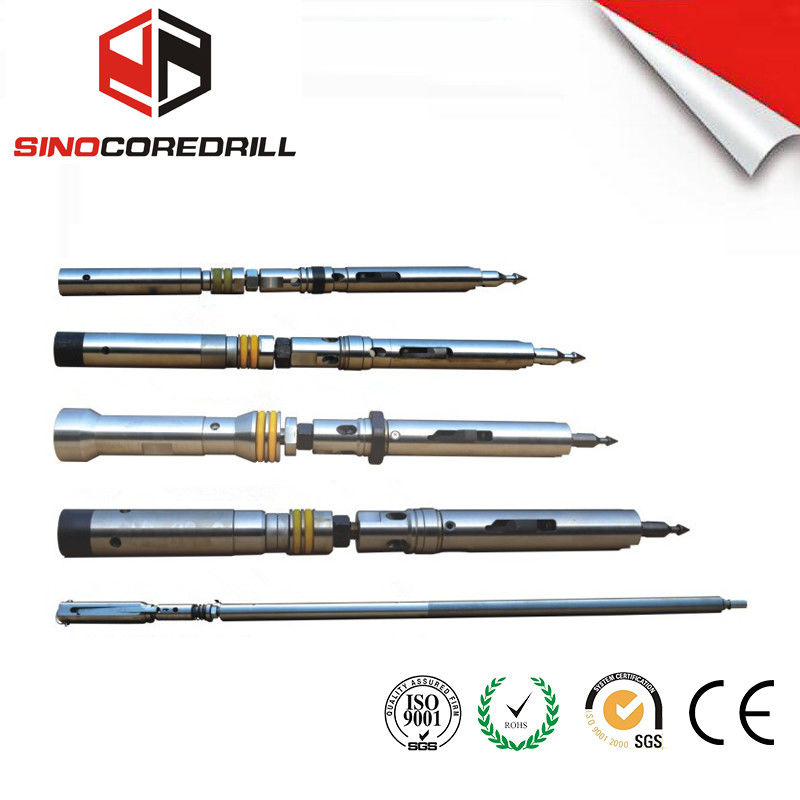

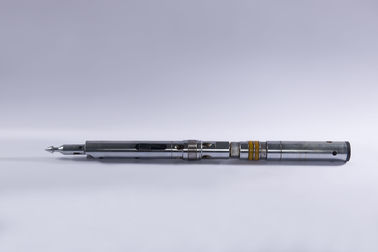

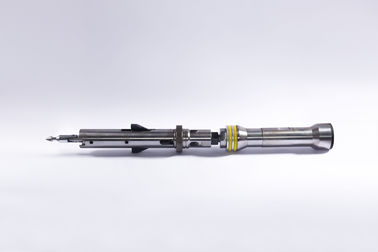

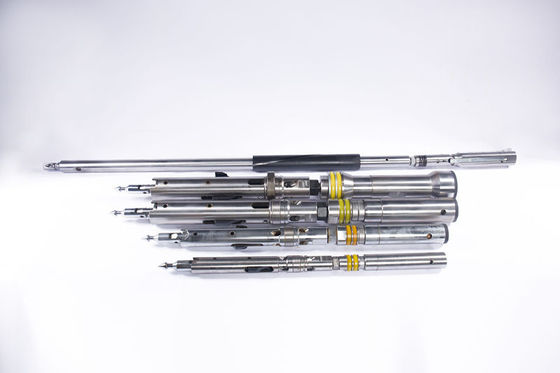

5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008

5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008
5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008

Large Image :  5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO 9001/2008
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Exported Wooden case
Delivery Time: 5~10 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: Based on Detailed Order

5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008

Description
Type: Wireline Double / Triple Core Barrel Assembly Size: BQ NQ HQ PQ BQ3 NQ3 HQ3 PQ3 T Series
Length: 3m 1.5m Standard: DCDMA WIRELINE Q STANDARD
HS Code: 8207191 Application: For Mineral Exploration
High Light:

drilling rig parts

,

wireline core drill parts

5ft / 10ft Diamond Double Tube Wireline Core Barrel System





The head assembly provides: latching and pivoting spearpoint mechanisms to allow insertion and retrieval of the inner tube assembly, a bearing assembly to allow the inner tube to remain stationary and avoid sample damage while drilling, fluid pressure operating indications and fluid control valves.



 All head assemblies incorporate a shut off valve assembly which provides a fluid pressure signal to the drill operator when the valve members are compressed, indicating a full or blocked inner tube.



Sinocoredrill head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.



All With ISO certificate & quality control.





Specifications



1.NQ  HQ PQ head assembly manufacture
2.NQ  HQ PQ head assembly high quality
3.API&ISO NQ head assembly
4.on time delive



5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 0

Core barrel introdution:



Used in loose, broken stratigraphic or coal extraction and protect rock (mine) heart of drilling tools.



Double core tube and tube has outer pipe, rinses through joint between the internal and external tube water flow to the bottom of the hole, protecting cores from rinses washouts. Double core tube has double motion and single movement two kinds. Double motion and core tube is internal and external core tube following bit and drill stem rotation, it in no serious loose or broken strata.



Single movement double core tube internal and external tube has bearing isolation, pipe outer pipe driven only pick up bit rotation, and broken rock tube does not rotate, avoid to core friction, vibration, etc., with mechanical damage, so it in serious loose fractured formations.these, can be well protected cores.



Use double deck core tube take core, bits need to use wall thickness of the alloy drill or diamond bits.



Due to the rock drill contact surface area increased and the lip use double deck core tube than ordinary core tube drilling efficiency to reduce. In the ledge, coal, in order to guarantee rock (mineral) heart take rate, rules must be use double deck core tube coring. More complex double core tube, except to finish single movement, in addition, aluminum, steel tube placed plastic or qualitative buckled half close tube, have a better protection of the core role.



Double core tube card broken cores and seal block within the next port, the core tube by the drill is placed in the core card fault device (fern, card spring, claw reed, etc.) to finish.                                                       5ft / 10ft Diamond Double Tube Wireline Core Barrel System CE ISO 9001/2008 1



Item No.

Part No

Item Descriptions

NQ

HQ



NQ-A-1

HQ-B-1

Core Barrel Assy 1.52m/5 Ft



NQ-A-2

HQ-B-2

Core Barrel Assy 3.05m/10 Ft



NQ-A-3

HQ-B-3

Inner Tube Assy 1.52m/5 Ft



NQ-A-4

HQ-B-4

Inner Tube Assy 3.05m/10 Ft



NQ 0000

HQ 0000

Head Assy

1

NQ 0001

HQ 0001

Spearhead Point

2

NQ 0002

HQ 0002

Compression Spring

3

NQ 0003

HQ 0003

Detent Plunger

4

NQ 0004

HQ 0004

Spearhead Base

5

NQ 0005

HQ 0005

Spirol Pin

6

NQ 0006

HQ 0006

Latch Retracting Case

7

NQ 0007

HQ 0007

Spirol Pin

8

NQ 0008

HQ 0008

Bolt

9

NQ 0009

HQ 0009

Washer

10

NQ 0010

HQ 0010

Upper Latch Body

11

NQ 0011

HQ 0011

Latch Spring

12

NQ 0012

HQ 0012

Latch

13

NQ 0013

HQ 0013

Link

14

NQ 0014

HQ 0014

Spiring Pin

15

NQ 0015

HQ 0015

Stainless Steel ball,22mm

16

NQ 0016

HQ 0016

Landing Indicator Bushing

17

NQ 0017

HQ 0017

Lading Shoulder

18

NQ 0018

HQ 0018

Lower Latch Body

19

NQ 0019

HQ 0019

Hex Nut

20

NQ 0020

HQ 0020

Spindle

21

NQ 0021

HQ 0021

Shut-off Valve,Hard

22

NQ 0022

HQ 0022

Valve Adjusting Washer

23

NQ 0023

HQ 0023

Thurst bearing

24

NQ 0024

HQ 0024

Spindle  Bearing

25

NQ 0025

HQ 0025

Hanger Bearing

26

NQ 0026

HQ 0026

Compression Spring

27

NQ 0027

HQ 0027

Self Lock Nut



NQ 0028

HQ 0028

Inner Tube Cap Assembly(28,29,30,31)

28

NQ 0029

HQ 0029

Grease Fitting

29

NQ 0030

HQ 0030

Stainless Steel ball

30

NQ 0031

HQ 0031

Inner Tube Cap

31

NQ 0032

HQ 0032

Check Valve Body

32

NQ 0033152

HQ 0033152

Inner Tube 1.52m/5Ft

32

NQ 0033305

HQ 0033305

innerTube 3.05m/10Ft

33

NQ 0034

HQ 0034

Stop ring

34

NQ 0035

HQ 0035

Core lifter

34

NQ 0035

HQ 0035

Fluted Core lifter

35

NQ 0036

HQ 0036

Core lifter Case

36

NQ 0037

HQ 0037

Locking Coupling

37

NQ 0038

HQ 0038

Adpter Coupling

38

NQ 0039

HQ 0039

Landing Ring

39

NQ 0040152

HQ 0040152

Outter Tube 1.52/5Ft

39

NQ 0040306

HQ 0040306

Outter Tube 3.05m/10Ft

40

NQ 0041

HQ 0041

Inner Tube Stablizer
