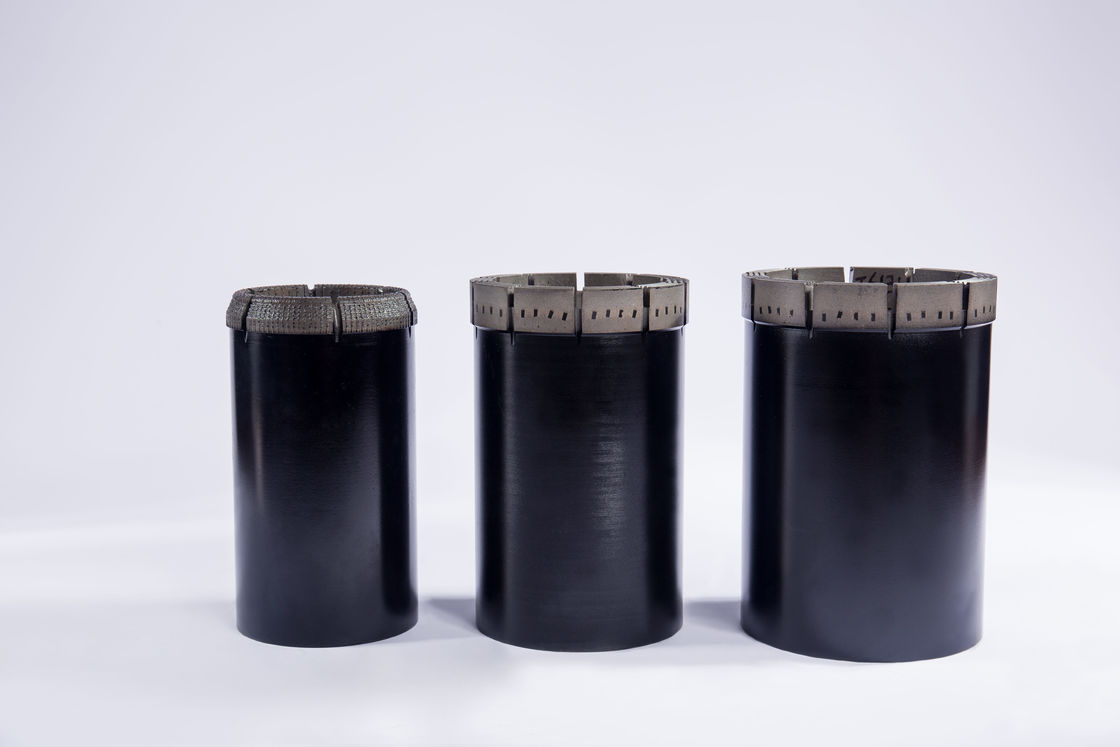

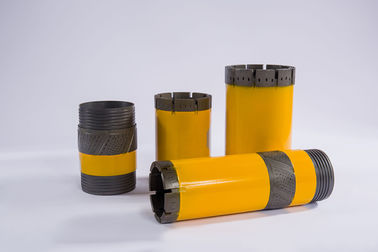

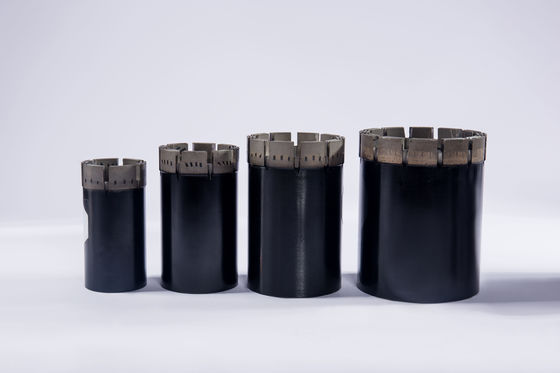

Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits

Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits
Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits

Large Image :  Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits

Product Details:
Place of Origin: China
Brand Name: SINOCOREDRILL
Certification: CE, ISO9001-2000
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Packaging Details: Sea Worthy Package
Delivery Time: 5 Working Days
Payment Terms: T/T, L/C, Western Union

Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits

Description
Material: Synthetic Diamond, Natural Diamond Available Size: Q Series, T2 Series, T6 Series
Crown Profile: Standard Waterways: Standard /Face Discharge /Turbo /Spiral
Thread: DCDMA Standard Color: Black
Applicaion: All Conventional And Wireline Core Barrel Use: Mining Exploration Diamond Drilling
Height: 12mm 16mm 25mm HS: 8207191
High Light:

diamond core drill bit

,

diamond products core bits

Single Tube T6-76 86 101 116 131 Imp diamond rock drill bit





SINOCOREDRILL diamond impregnated drill bits feature advanced technology that results in longer intervals drilled, enhanced versatility and reliability, and a lower cost per foot.



Our diamond core bits are ideally suited to modern drilling conditions. The impregnated diamond core bits are designed and manufactured to give optimum productivity and bit life, required to maintain cost efficiency for your drilling application.



Model NO.:T2-46, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline



The impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the Drill contains a uniform distribution of these crystals that are embedded in a powdered metal bond.





Sizes Available:

A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,

H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short

S-Gague Core Bits: SWF-Long, SWF-Short

U-Gague Core Bits: UWF-Long, UWF-Short

Z-Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2&TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-66, T2-76, T2-76Coreline, T2-86, T2-86Coreline, T2-101, T2-101Coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S0146

B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146





Applications



Impregnated diamond core bits (NQ, HQ,T2-76, etc.) are widely used in mineral exploration industry, site investigation, etc.

The impregnated diamond core bit has emerged as the most commonly used type in the mineral exploration industry. The advantages of using impregnated diamond core bits over bits manufactured with other cutting media include:

An extremely wide range of application.


Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits 0













Warranty and Service



We always concerned about our clients and provides them with warranty and service support.



The factory ensures equipment warranty for the major assemblies and units efficient for 12 months. The clients are supplied with all needed spare parts, tooling and auxiliary facilities.



The authorized dealers possess service centers to execute product warranty liabilities, after-sales service and equipment repair. The clients’ staff is also provided with theoretical and practical company instructions and consultations on all matters concerning execution of work and equipment operation.









Single Tube T6-76 T6-86 T6-101 T6-116 T6-131 Impregnated diamond rock drill bits 1

Q:Are you trading company or manufacturer ?

A: We are a specialized manufacturer.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

T/T, L/C, Western Union.



Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
A: Min. order quantity: 1 piece. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promote technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: Where is your factory located in?
A: Our factory is located in Jiangyin city,Jiangsu province, China.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Sinocoredrill usually makes a serious inspection for all products and raw materials in strict procedure
