380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines

380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines
380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines

Large Image :  380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines

Product Details:
Place of Origin: CHINA
Brand Name: BD
Certification: ISO
Model Number: BRDH-800 BRDH-1000
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: AS PER DETAILED INQUIRY
Packaging Details: STANDARD EXPORTING PACKAGE
Delivery Time: 1 WEEK
Supply Ability: 20 SETS PER MONTH

380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines

Description
Model: BRDH 800/400 Materials To Apply: PE PP
Range Of Diameters: 400/500/560/630/710/800 Environment Temperature: - 5 To 45 ºC
Power Supply: 380V ±10% 3 Phase 50 Hz Total Power: 15.2 Kw
Max. Pressure: 6 Mpa Net Weight: 1440kg
High Light:

plastic tube welding machine

,

plastic pipe fusion welding machine

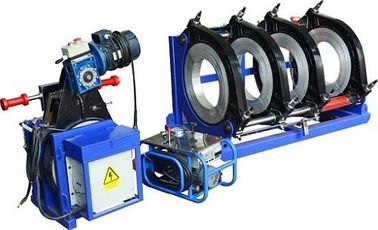

Hydraulic Big Pipe BRDH-800 / 400 PE Pipeline Welding Machine





Equipment characteristics


1. Apply to the pipe working job on site, for connecting PE/PP/PVDF/HDPE pipes. Also can be used to make pipe fittings in the workshop.

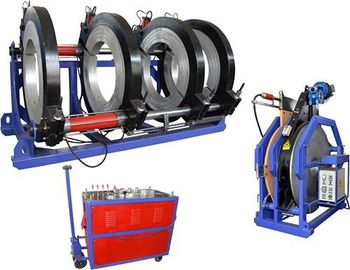

2. Composed of frame rack, milling cutter, heat plate, bracket, hydraulic station.
3. The frame rack is made of high strength materials, with 45℃ tilt design.
4. Electric milling cutter, safety limit switch to prevent the cutter accidental rolling.
5. Both have manual-flip and hydraulic-flip to choose for different job site.



Application:



Can be used to welding pipe made of PE/PP/PVDF/HDPE materials. And fit for the on site pipe welding job and pipe fittings making in the workshop. Use the accessories like data logger to record the welding data, and the special inserts for nonstandard diameter pipe.





Model BRDH 800/400
Materials to apply PE PP
Range of diameters 400/500/560/630/710/800
Environment temperature - 5 to 45 ºC
Power supply 380V ±10% 3 phase 50 Hz
Total power 15.2 Kw
Include Heating plate 11.5 Kw
Planing tool 1.5 Kw
Hydraulic unit 2.2 Kw
Dielectric resistance >1 MΩ
Max. pressure 6 Mpa
Volume of oil reservoir 5 L
Max Temperature of heating plate 270 ºC
Effective cylinder area 1020mm2
Net weight 1440kg





Advantages


Quality Control--Complete quality inspection process.
Professional Team--We have professional technicians and engineers.
Customized Service--We provide to customers the customize service, also the OEM&ODM service is available.
Standardization--According to the industry technical standardization and the standard system of enterprise production management
Certification--We have the certification like ISO, UKAS,ECM.



380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 0380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 1

380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 2



380V Hydraulic Big Tube Plastic Pipe Welding Equipment PE Pipeline Welding Machines 3
