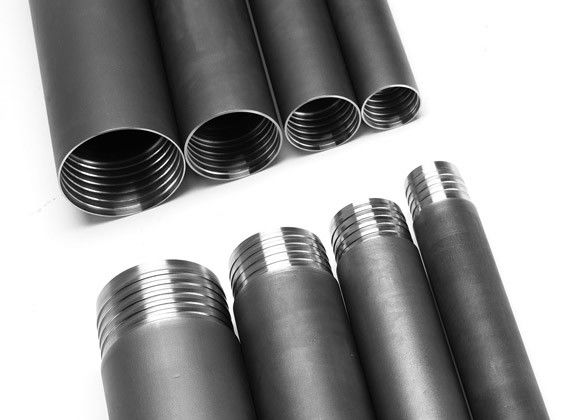

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision
Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision

Large Image :  Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision

Description
Type: Wireline Core Drilling Rod Length: 3m 1.5m
Size: BWL HWL HWL PWL Material: 30CrMnSia XJY850
HS: 7304512 Application: Mining Exploration
Weight NQ: 24KG Weight HQ: 34KG
High Light:

metric drill rod

,

oil hardening drill rod





HEAT TREATED WIRELINE DRILL RODS SEAMLESS STEEL TUBE HIGH-GRADE STEEL PRECISION WIRE-LINE CORE DRILLING ROD



Sinocoredrill Drilling Products flush joint casing and drilling rods are recognized worldwide for their quality. Our rods and casing are threaded by
a qualified team with many years of experience in drilling product manufacturing. Each and every rod and casing undergoes strict quality
control throughout the entire manufacturing process.



Our drill rod can work under a huge inner and outer pressure, and bear the twisted and vibrating environment. It can reduce the work intensity of our drillers. We can reduce costs to enhance efficiency.


Our company can provide a large demand of drill rod with the high quality and the nice after-sales service





Size form AQ BQ NQ HQ to PQ, parallel threaded drill rods, DCDMA size AW-HW, and Metric sizes 42mm to 90mm, Tapered threaded drill rods, DCDMA sizes AWY-NWY, AWJ, BWJ and S75 drill rods



Technical Information



Drill Rods



Size OD(mm) ID(mm) Weight Threads Pitch Pin Length
B-WL 55.6 46 18KGS /3m(10ft) 8.5mm 44.45mm
N-WL 69.9 60.3 24KGS /3m(10ft) 8.5mm 44.45mm
H-WL 88.9 77.8 34KGS/3m(10ft) 8.5mm 44.45mm
P-WL 114.3 101.6 53KGS/3m (10ft) 10.2mm 63 mm






Double tube surface
Size(surface exploration drill) Metric system(mm) Imperial system(in)
Hole diameter Core diameter Hole diameter Core diameter
BWL 60 36.4 2.36 1.43
NWL 75.7 47.6 2.98 1.88
HWL 96.1 63.5 3.78 2.5
PWL 122.7 85 4.83 3.34
Triple tube surface
NWL3 75.7 45 2.98 1.78
HWL3 96.1 61.1 3.78 2.41
PWL3 122.7 83 4.83 3.27





WL series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters
Spec. Unit BWL NWL HWL PWL
OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6
Thickness mm 4.8 5.5 5.6 6.35
Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3
Weight kg/m 6.01 8.8 11.51 17.3
thread length mm 44.45 44.45 44.45 63.5
thread pitch thread/inch 3 3 3 2.5
box thread tooth height mm 0.76 0.76 0.76 1.17
pin thread tooth height mm 0.88 0.88 0.88 1.27
thread tooth angle . 29 29 29 29
tensile resistance(A series) kn 400 530 510 565
tensile resistance(B series) kn 450 615 625 660
bore depth m 1200 1000 900 800






Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision 0

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision 1

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision 2

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision 3

Heat Treated Wireline Drill Rod Seamless Steel Tube High Grade Steel Precision 4
