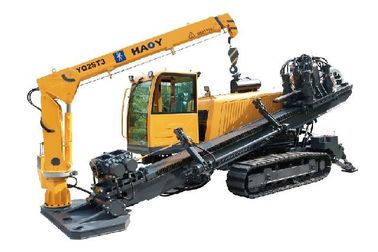

High Power Crawler 194KW Horizontal Directional Drilling Rigs

High Power Crawler 194KW Horizontal Directional Drilling Rigs
High Power Crawler 194KW Horizontal Directional Drilling Rigs

Large Image :  High Power Crawler 194KW Horizontal Directional Drilling Rigs

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: TYZ-45/90
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

High Power Crawler 194KW Horizontal Directional Drilling Rigs

Description
Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 194kw , Commins Diesel Engine Pullback Force: 45/90T; 480/960KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
High Light:

Crawler hdd drilling rig

,

194KW hdd drill rig

45/90T 23000N·M Horizontal Directional Drilling Rig ,194KW High Power Crawler

Main technical features:

TYZ-45/90 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. The drilling rig is beautiful in appearance, the whole machine is driven by full hydraulic pressure, the wired remote control mode is adopted for walking, and the main supporting parts are selected from well-known domestic and foreign brands.

2. The low-emission and low-noise characteristics of famous diesel engines, combined with the use of internationally advanced control technology, are not only more suitable for urban construction, but also minimize the power consumption of the rig under no-load conditions.

3. The rotation of the power head is driven by dual motors, and is equipped with two-step stepless speed regulation function.

4. The push-pull of the power head is driven by a four-motor equipped with a reducer, and is driven by a rack and pinion, which has good stability.

5. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

6. The track adopts steel track and rubber shoes, which can bear high load and walk on various roads.

7. The supporting drilling tools are complete, using φ89×4500mm drill pipe, and equipped with 2T crane.

Main technical specifications:

 ITEM

 Specification

 Engine

 Commins 6CTA8.3-C260 194KW(2200r/min)

 Push/pull force

 480/960KN

 Torque

 23000N·m

 Spindle rotating speed

 0-55/0-110r/min

 Feeding stroke

 4900m

 Pilot hole diameter

 Φ240

 Drilling angle

 0-20°

 Hydraulic system pressure

 30MPa

 Mud pump max flow

 600 L/min

 Mud pump max pressure

 10MPa

 Rod size

 Φ89 X 4500mm

 Walking speed

 1-2Km/h

 Size

 8.9(L) X 2.3 (W) X 2.6 (H) m

 Weight

 16T
