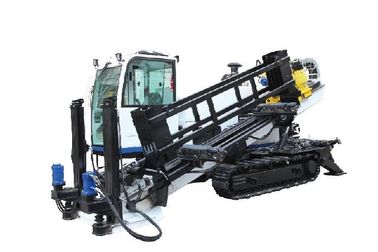

high Torque Water Bore Well 275KN Hdd Drill Rig

high Torque Water Bore Well 275KN Hdd Drill Rig
high Torque Water Bore Well 275KN Hdd Drill Rig

Large Image :  high Torque Water Bore Well 275KN Hdd Drill Rig

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: TYZ-25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

high Torque Water Bore Well 275KN Hdd Drill Rig

Description
Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 133kw , Commins Diesel Engine Pullback Force: 25Tons/275KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
High Light:

Well underground drill rigs

,

275KN hdd drilling rig

25Tons/ 8000N·M Horizontal Directional Drilling Rig ,133KW High Power Crawler

Main technical features:

TYZ-25 type trenchless directional drilling rig has advanced and simple structure, high efficiency and low oil temperature. The main hydraulic components, engine and mud pump are selected from domestic and foreign famous brand products. The main machine adopts steel tracks and rubber shoes, which is convenient for walking on all kinds of roads. It can ensure that the drilling rig is convenient to prepare the drill within the full drilling angle range, the drilling rig has good stability, and the overall shape is beautiful.

1. Both the hydraulic and electrical systems of the drilling rig adopt advanced control technology, which is comfortable to operate and uses wired remote control for walking. The main supporting parts are well-known domestic and foreign products.

2. Power head rotation adopts dual motor drive, high torque, and has two-step stepless speed regulation function.

3. The power head push-pull is driven by a dual motor with a reducer, driven by a rack and pinion, with good stability and high efficiency.

4. The mud pump is in the form of hydraulic drive and mechanical variable speed, which can flexibly adjust the pressure and pump volume.

5. The track adopts steel track and rubber shoes, which can bear high load and walk on various roads.

6. Complete supporting drilling tools, using φ60×3000mm, φ73×3000mm drill rod, and can be customized according to user requirements.

7. Equipped with wireless guide device, easy to use.

8. Optional automatic loading and unloading drill pipe (or manipulator) and automatic ground anchor device, loading and unloading drill pipe is convenient and efficient, greatly reducing the labor intensity of workers.

Main technical specifications:

 ITEM

 Specification

 Engine

 Commins QSB5.9-C180 133KW(2200r/min)

 Push/pull force

 275KN

 Torque

 8000N·m

 Spindle rotating speed

 0-68/0-135r/min

 Feeding stroke

 3500m

 Pilot hole diameter

 φ130

 Drilling angle

 8-21°

 Hydraulic system pressure

 20MPa

 Mud pump max flow

 250L/min

 Mud pump max pressure

 8MPa

 Rod size

 Φ60;φ73

 Walking speed

 1.5-3Km/h

 Size

 6.0(L) X 2.06 (W) X 2.33 (H) m

 Weight

 10T
