|Type:||Full Hydraulic Surface Core Drilling Rig||Model:||CR12|
|Engine:||CumminsQSB5.9-C210 154KW||Drilling Capacity:||BQ 1350M NQ 1050M HQ 720M PQ 470M|
|Transport Dimensions:||5980×2240×2480mm||WEIGHT:||10200 Kg|
154kw Exploration Drilling Rig,
cummins exploration drilling rig,
cummins exploration drill rig

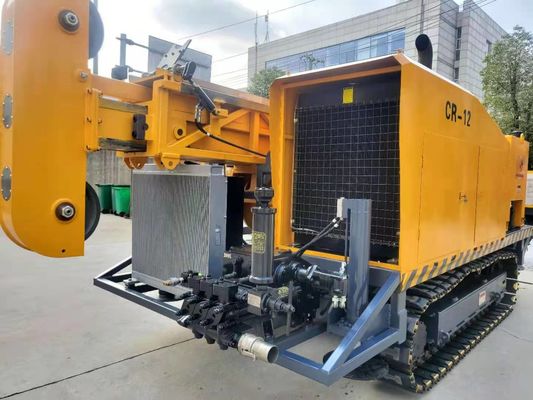

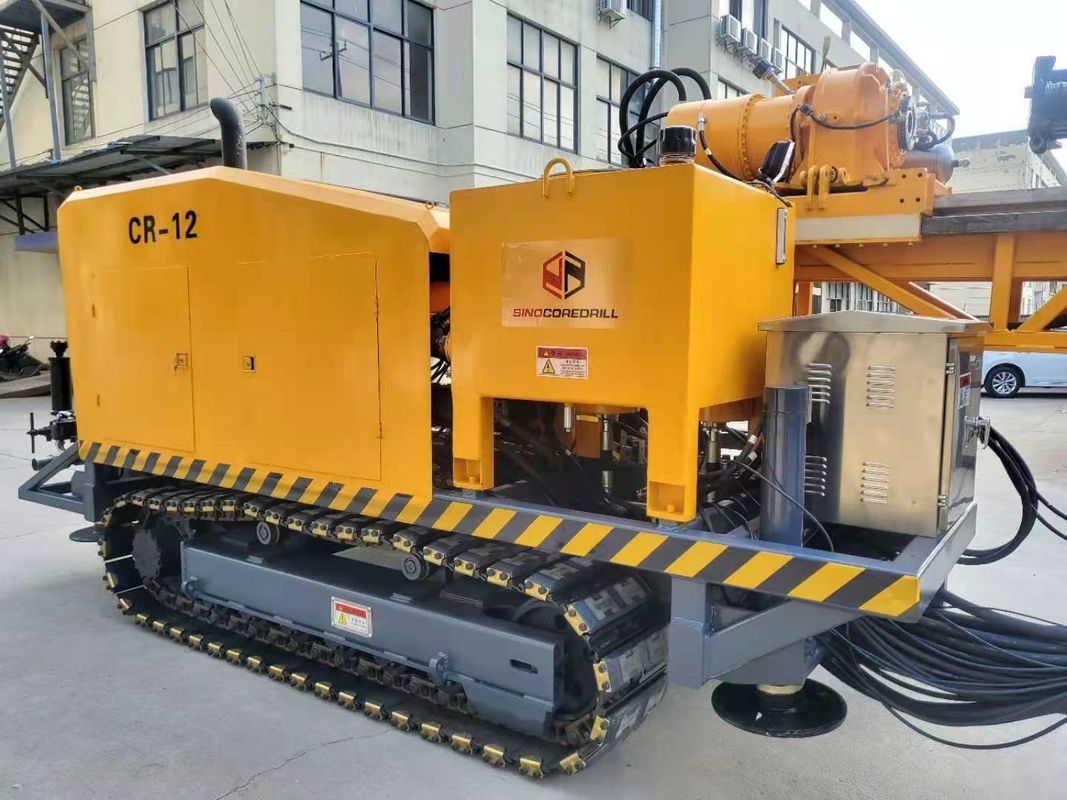

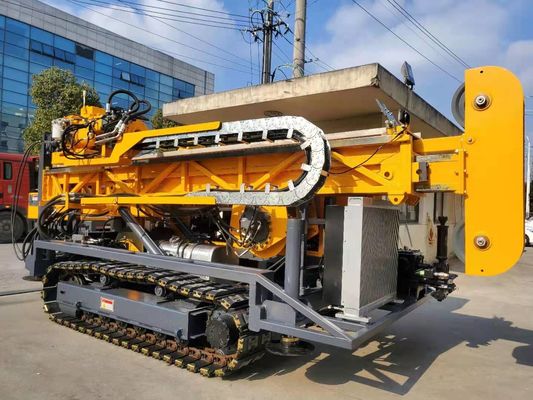

CR-12 FULL HYDRAULIC CORE DRILLING MACHINE EXPLORATION DRILLING RIG 154KW
CR-12 full hydraulic core drilling machine is a new type of full hydraulic core drilling machine designed and manufactured by Sinocoredrill Group which based on the independent research and development of the advanced technology of the same type drilling machine at home and abroad.
The rig has reasonable layout, compact structure, superior performance, simple operation and convenient maintenance. It is the ideal coring drilling equipment.
1. Machine features:
The machine adopts full hydraulic drive and walks on steel track. The power head is driven by variable pump and variable motor, and the machinery has four stepless speed regulation, with advanced and simple structure. The cylinder is directly fed into the system, the motion is stable and reliable; The mast can adjust the opening Angle in the range of 0° ~ 90°. The center of gravity of the whole machine is low and the stability is good. Provide operators with good visual field and spacious and comfortable working environment; the overall shape is beautiful, and reflects the people-oriented design concept.
1) Reliable performance
The main accessories are purchased internationally. The diesel engine, hydraulic pump, main valve, motor, travel reducer and key hydraulic accessories are all selected from well-known brands at home and abroad.
2) High efficient
Large torque, high power configuration, reasonable structural design, advanced operation mode and 6m long drill pipe ensure the efficient construction of the drill.
3) Environmental protection
The diesel engine emission is the national third electronic injection diesel engine, low pollution emission, professional noise reduction design, so that drilling RIGS can be suitable for urban construction.
4) Energy saving
The rig uses advanced load sensitive control technology to reduce power consumption and system heat to a minimum.
2. Field of application
CR-12 drilling machine is mainly used for inclined and straight hole drilling, which is suitable for geology, metallurgy, coal, nuclear industry, hydrology and other industries. It is a core drilling equipment mainly for diamond and hard alloy drilling.
Correct use and reasonable maintenance can give full play to the best performance of the machine, can improve work efficiency, and prolong the service life of the machine. Therefore, we hope that the majority of users can operate and maintain in strict accordance with the requirements of this manual.
|Diesel Engine||Model||Cummins QSB5.9-C210-30 (EU Stage IIIA)|
|Rated RPM(Factory setting)||2000rpm|
|Drilling Capacity||BQ||1350 m|
|Drill Head||Rotation Motor||
Two-speed Hydraulic Motor
Producer: Rexroth of Germany
|RPM||Three Shifts/ Step less Change 0-1250 RPM|
|Head Opener||sidewise sliding way with hydraulic drive|
Hydraulically opened, Disc Spring Clamping, Normally C Closed Type
Axial Holding Capacity of 228000 N
|Max. Torque||4750 N·m|
|Hold Diameter||121 mm|
|Max. Lifting capacity of Spindle||220 kN|
|Max. Feeding Power||110 kN|
Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.
With load sensing system.
Producer: Danfoss of Denmark
1st Pump:260LPM at 31.5MPa
2nd Pump:130LPM at 28MPa
3rd Pump: 130 LPM at 28MPa
|Hydraulic Tank||Capacity||420 L (111 US Gallons)|
|Capacity of Main Hoist||Hoisting Speed (single wire)||0-80m/min(bare drum)|
|Hoisting force (single wire)||80Kn(8T) ---Update to 100Kn (10T)|
|Steel Wire Diameter||22 mm(0.86 inch)|
|Steel Wire Length||45 m|
|Capacity of Wireline Hoist||Hoisting Force (single wire)||15 kN(3372 lbf) (bare drum)|
|Steel Wire Diameter||6 mm(0.24 inch)|
|Steel Wire Length||1600 m|
|Mast||Mast Height||9.5 m|
|Mast Adjusting Angle||0°—90°|
45º off horizontal to 90ºvertical down
|Feeding Stroke||3650 mm|
|Slippage Stroke||1500 mm|
|Rod Pull||3m or 6m(9.84feet or 19.68feet)|
|Mud Pump||Type||Reciprocating Pump Triplex Plunger|
|Output volume||250,180,122 L/min|
|Discharge pressure||5.0, 6.0, 8.0 Mpa|
|Foot Clamp||Clamping Scope||
through hole Ф165mm
|Transport Dimensions (L × W ×H )||5980×2240×2480mm|
|Transport Way||Steel Crawler|
