Name: 150m Trailer Mounted Water Well Drilling Rig With Large Torque For Water Conservancy Engineering
Brand: Jiangsu Sinocoredrill Exploration Equipment Co., Ltd
SKU: JS 150W
Price: 769.00 USD
Availability: InStock

Home Products Water Well Drilling Rig

150m Trailer Mounted Water Well Drilling Rig With Large Torque For Water Conservancy Engineering

Product Details:

Place of Origin:	CHINA
Brand Name:	SINOCOREDRILL
Certification:	ISO9001
Model Number:	JS 150W

Contact Now

Detailed Product Description

Type:	Trailer Mounted Water Well Rig	Application:	Industrial & Agricultural
Drill Depth:	150m	Drilling Diameter:	90-150 Mm
Dimension:	320014001500mm	Country Of Origin:	China
Highlight:	Large Torque Water Well Drilling Rig , 150m Water Well Drilling Rig , Trailer Mounted Water Well Drilling Rig

150m Trailer Mounted Water Well Drilling Rig With Large Torque For Water Conservancy Engineering

Product description:

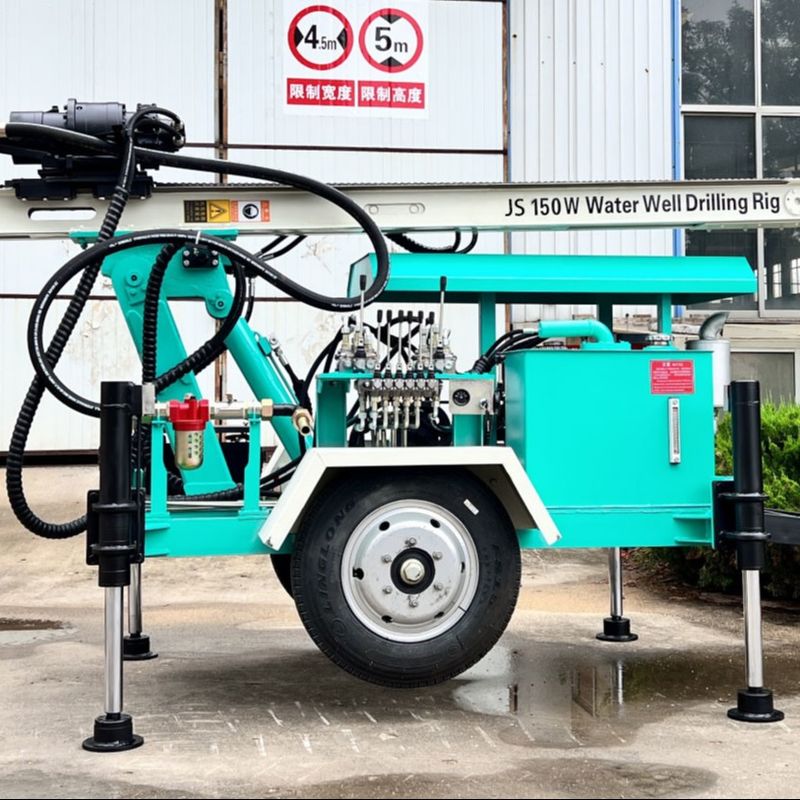

JS 150W is a trailer mounted water well drilling rig, compact fully hydraulic, for down-the-hole hammer and rotary drilling up to 130 meters.

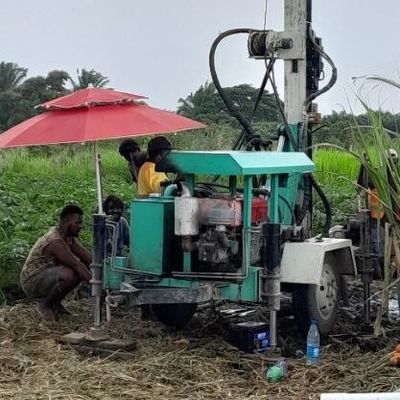

It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well,monitoring well and exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.

Features:

1. Our JS series has been upgraded, with deeper drilling depth up to 560m!

2. Steels quality is good, torque is large

3. Easy operation, free-maintaining

4. For various complex stratum, such as pebble bed, aggregate bed.

5. Saving money, compact construction, easy moving

6. Applicable to industry, residents drilling, ground drilling, large diameter, deep drilling,footage fast, flexible and efficient.

Technical parameters:

钻孔直径Bore diameter(mm)	90-150
钻孔深度Bore depth(m)	70-130
行走速度Walk speed(km/h)	30
适应岩石硬度 For rock(F)	6-20
工作风压(潜孔锤)Air pressure(Mpa)	1.05-2.0
耗风量(潜孔锤)Air consumption(m³/min)	11-20
一次推进行程 Once promotion(mm)	2000
滑架最大倾角Skid max angle(°)	90
最大离地高度Maximum height from the ground(mm)	320
回旋速度 Rotation Speed(r/min)	0-90
回转扭矩 Rotation torque(NM)	2200
外形尺寸Dimension(LWH)(mm)	437516501920
主机功率Host power(Kw)	18.37
重量 weight(Kg)	1700
泥浆泵(选配)Mud pump	BW200/4
泥浆泵流量Pump speed(L/min)	200-125
泥浆泵压力Pressure (Mpa)	4.0-6.0
