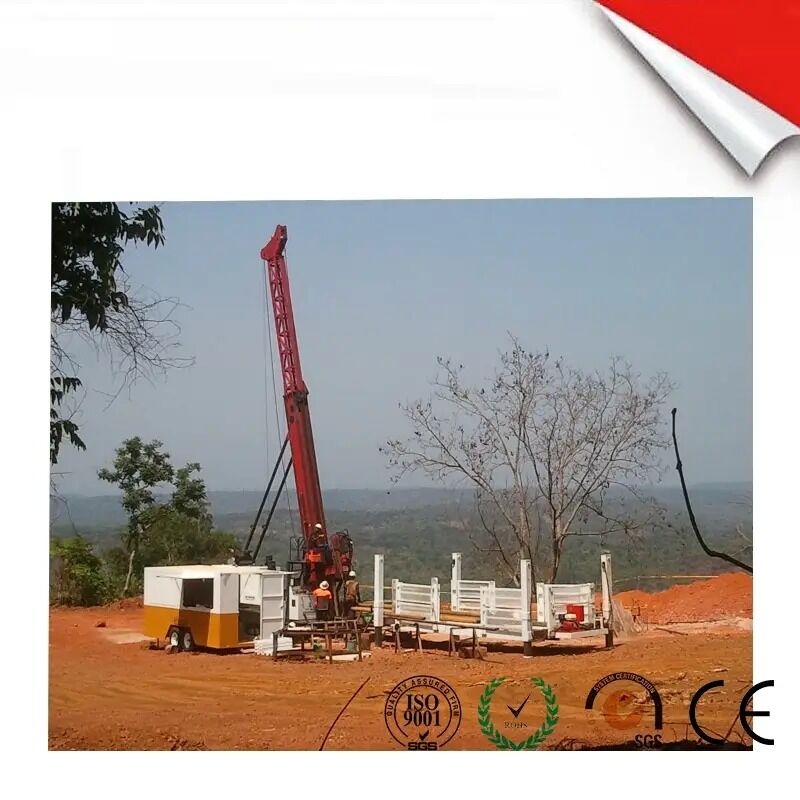

CR-25 Hydraulic Surface Core Drilling Rig

All Category

Horizontal Directional Drilling Rigs

Cone Penetration Test Apparatus

Rotary Air Blowers

Ms. Amelia

amelia@sinocoredrill.com

86-18051930311

18051930311

Contact Now

CR-25 Hydraulic Surface Core Drilling Rig

Brand Name:	SINOCOREDRILL
Model Number:	CR-25
MOQ:	N/A
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Diesel Engine:

QSZ13-C400-II (EU Stage IIIA) 298 KW (400HP)

Drilling Depth:

NQ (OD 70.3mm ,ID 60 Mm) 2550m

Dimension And Weight:

6950×2260×2550mm ；16.5ton

Hydraulic Tank:

500 L (111 US Gallons)

Highlight:

hydraulic surface core drilling rig

CR-25 core drill rig

surface core drill with warranty

Product Description

Key Features

Powerhouse Performance, Unwavering Reliability.

Meet the heart of your most demanding equipment: the QSZ13-C400-II diesel engine. Engineered for heavy-duty applications where downtime is not an option, this 13-liter powerhouse delivers robust performance you can count on.

Specifications

Main Performance Parameters of CR-25 Full Hydraulic Core Drilling Machine

Diesel Engine	Model	QSZ13-C400-II (EU Stage IIIA)
	Displacement	13L
	Power	298 kW (400HP)
	Rated RPM	1900 rpm
Drilling Capacity	BQ	3100 m
	NQ	2550 m
	HQ	2050 m
	PQ	1650 m
Drill Head	Rotation Motor	Two-speed Hydraulic Motor Producer: Rexroth of Germany
	RPM	Three Shifts Stepless Change: 0-1250 RPM
	Ratios	1st 8.2:1 2nd 4.2:1 3nd 1:1
	PowerHead Opener	sidewise sliding way with hydraulic drive
	Hydraulic Chuck(PQ)	Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 294000 N
	Max. Torque	8750 N·m
	Hold Diameter	121 mm
	Max. Lifting capacity of Spindle	320 kN
	Max. Feeding Power	140 kN
Primary Pump	Hydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.	Producer: Danfoss of Denmark 1st Pump: 380LPM at 35 MPa 2nd Pump: 260LPM at 31.5MPa 3rd Pump: 130 LPM at 31.5MPa
Hydraulic Tank	Capacity	500 L (111 US Gallons)
Capacity of Main Hoist	Hoisting Speed (single wire)	0-50 m/min(bare drum)
	Hoisting force (single wire)	180 kN
	Steel Wire Diameter	26-30 mm
	Steel Wire Length	55 m
Capacity of Wireline Hoist	Hoisting Force (single wire)	15 kN(3372 lbf) (bare drum)
	Steel Wire Diameter	6-8 mm
	Steel Wire Length	3200 m
Mast	Mast Height	10.5 m
	Mast Adjusting Angle	0°—90°
	Drilling Angle	45º off horizontal to 90ºvertical down
	Feeding Stroke	3700 mm
	Slippage Stroke	1000 mm
	Feed Pull	32 ton
	Feed Thrust	14 ton
	Rod Pull Length	3m or 6m(9.84feet or 19.68feet)
Mud Pump	Type	Reciprocating Pump Triplex Plunger
	Model	BW 600
	Stroke	110mm(4.3 inch)
	Output volume	600 L/min
	Discharge pressure	8.0 Mpa
Foot Clamp	Clamping Scope	55.5-118 mm through hole Ф165mm
Others	Weight	16.50 ton
	Transport Dimensions (L × W ×H )	6950×2260×2550mm
	Transport Way	Steel Crawler

Application

This machine is used for plain, hilly terrain, work under the environment of high temperature, cold areas. Main machine adopts self-propelled chassis crawler , engine power, mud pump, winch and other integrated structure ,also can be customized platform truck structure, it is mainly used for metal and non-metallic solid mineral survey and exploration, In addition, also can be used in engineering geology exploration, hydrogeology survey, reconnaissance and exploration of oil and gas field ,water well drilling etc . The rig has reasonable layout, compact structure, superior performance, simple operation and convenient maintenance. It is the ideal coring drilling equipment.

Reliable performance

The main accessories are purchased internationally. The diesel engine, hydraulic pump, main valve, motor, travel reducer and key hydraulic accessories are all selected from well-known brands at home and abroad.

High efficient

Large torque, high power configuration, reasonable structural design, advanced operation mode and 6m long drill pipe ensure the efficient construction of the drill.

Environmental protection

The diesel engine emission is the national third electronic injection diesel engine, low pollution emission, professional noise reduction design, so that drilling Rigs can be suitable for urban construction.

Energy saving

The rig uses advanced load sensitive control technology to reduce power consumption and system heat to a minimum.

CR-25 drilling machine is mainly used for inclined and straight hole drilling, which is suitable for geology, metallurgy, coal, nuclear industry, hydrology and other industries. It is a core drilling equipment mainly for diamond and hard alloy drilling.
