114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001

114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001
114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001 114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001 114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001

Large Image :  114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO 9001
Model Number: BWL NWL HWL PWL
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001

Description
SIZE: BQ NQ HQ PQ LENGTH: 1.5M 3M
STANDARD: DCDMA MATERIAL: 30CrMnSia /XJY850
HS CODE: 730451 PROCESS: Whole Tempering With Heat Treatment
OD: 114.3MM ID: 101.6MM
High Light:

oil hardening drill rod

,

metric drill rod

114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Core Drill Rod




Description:


Sinocoredrill drill rods and casing tubes are manufactured from the highest quality material, under stringent industry DCDMA standards, and are field tested under a variety of conditions, in order to meet the most rigid demands in during performances and in manufacturing standards.

We will make sure the compositions and specifications match the inspection report form the suppliers.



Raw materials:

30CrMnSiA/XJY850

We only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company.

Heat treatment control:

Entire-length or ends thermal processed will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body, ensuring superior wear resistance, strength, and toughness in the most demanding applications.

Thread opening process:

Accuracy of threads will determine the use effects and life time of drill rod and casings.

CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.

Additional thread treatment:

Surface of the threads will be cleaned to remove burr adhered after threads are opened.

Afterwards, the tread surface will be phosphated to improve surface conditions.

Size available as followings:

Wireline series: AQ, BQ, NQ, HQ, PQ

Casing: AW, BW, NW, HW, HWT, PW

Chinese Standard: S56, S59, S75, S95, S110, S130, S57X, S75A, S95A



114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001 0

Specifications:

1. high quality alloy tube
2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads


 114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001 1

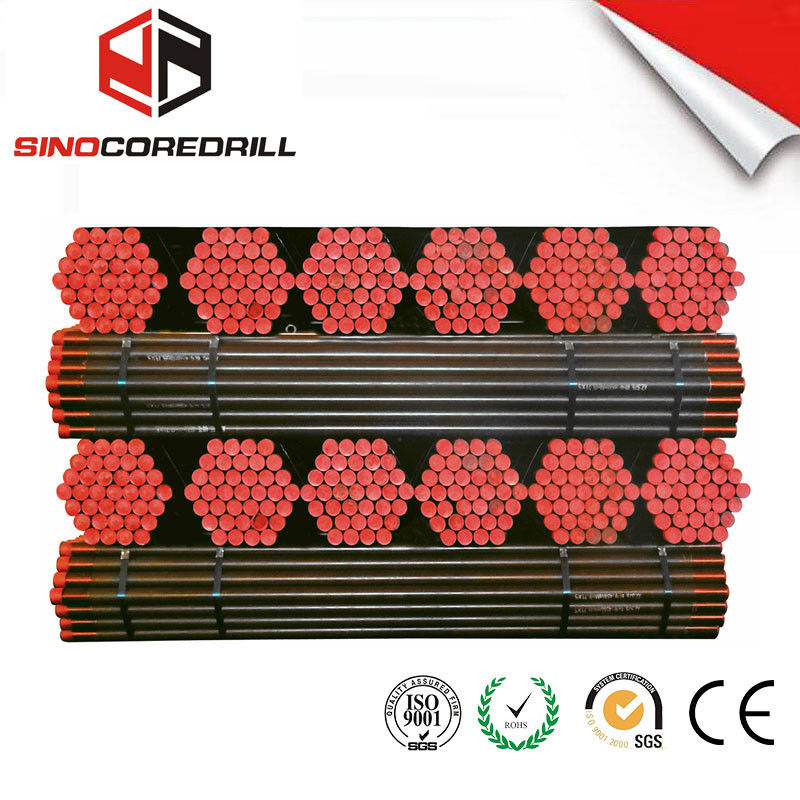

Concerning the packing, it is packaged by iron belts.
BQ Bundled Specifications (Steel Belt):
3.0m/10ft BQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.4×0.4
Volume: 0.5 m3
Gross Weight: 670 kg

BQ Bundled Specifications (Iron Frame):
3.0m/10ft BQ Drill Rod (30 Pieces)
Dimensions (L×W×H): 3.0×0.35×0.3
Volume: 0.32 m3
Gross Weight: 550 kg

NQ Bundled Specifications (Steel Belt):
3.0m/10ft NQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.5×0.5
Volume: 0.75 m3
Gross Weight: 900 kg

NQ Bundled Specifications (Iron Frame):
3.0m/10ft NQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.38×0.39
Volume: 0.43 m3
Gross Weight: 610 kg

HQ Bundled Specifications (Steel Belt):
3.0m/10ft HQ Drill Rod (37 Pieces)
Dimensions (L×W×H): 3.0×0.625×0.625
Volume: 1.2 m3
Gross Weight: 1300 kg

HQ Bundled Specifications (Iron Frame):
3.0m/10ft HQ Drill Rod (25 Pieces)
Dimensions (L×W×H): 3.0×0.46×0.47
Volume: 0.65m3







114mm PWL High Strength 30CrMnSia Drill Pipe Wireline Drill Rod CE ISO 9001 2
