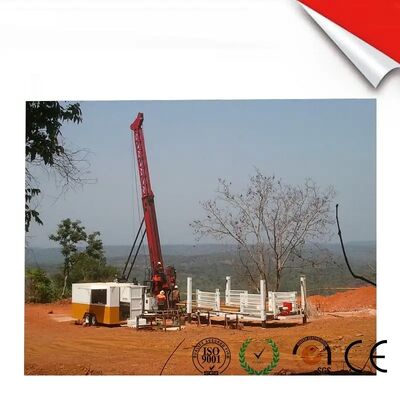

| Type: | Full Hydraulic Surface Core Drill Rig |
|---|---|
| Model: | CR25 |
| Engine: | Cummins QSZ13-C400-II (EU Stage IIIA) |
| Drilling Capacity: | BQ 3100m NQ 2550m HQ 2050m PQ 1650m |
| Transport Dimensions: | 6950×2260×2550mm |
| Type: | Full Hydraulic Surface Core Drilling Rig |
|---|---|
| Model: | CR20 |
| Engine: | Cummins QSLB8.9 (EU Stage IIIA) |
| Drilling Capacity: | BQ 2850M NQ 12250M HQ 1850M PQ 1350M |
| Transport Dimensions: | 6250×2240×2480mm |

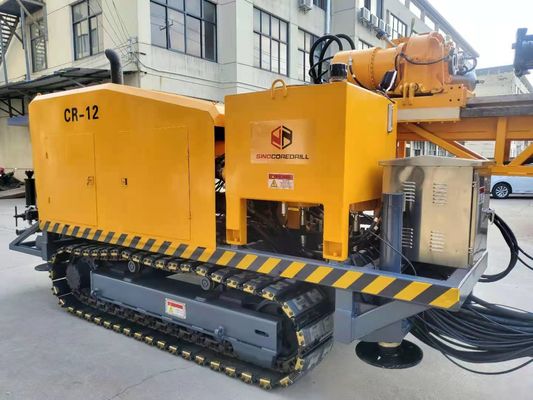

| Type: | Full Hydraulic Surface Core Drilling Rig |
|---|---|
| Model: | CR12 |
| Engine: | CumminsQSB5.9-C210 154KW |
| Drilling Capacity: | BQ 1350M NQ 1050M HQ 720M PQ 470M |
| Transport Dimensions: | 5980×2240×2480mm |
| Dill Depth Capacity: | 30/100/200m |
|---|---|
| Hole Diameter: | 96/75.7/60mm HQ NTW BTW |
| Core Diameter: | 63.5/56/42mm |
| Engine Power: | KUBOTA 23.5kw/3000rpm |
| Hydraulic System: | 21MPa/max 54L/min Water Cooler |
| Diesel Engine: | Cummins 6CTA8.3-C195 |
|---|---|
| Power: | 145kW (195HP) |
| Speed: | 1900rpm |
| Hydraulic Chuck: | PQ |
| Hold Diameter: | 121 Mm(4.76 Inch) |
| Model: | Cummins 6CTA (turbocharged And Charge Water Cooled) |
|---|---|
| Displacement: | 8.3L (2.19 US Gallons) |
| Power: | 178kW (240HP) |
| Rated RPM(Factory Setting): | 2200rpm |
| Rotation Motor: | Double Hydraulic Motor -variable And Reversible Maker: SAUER-DANFOSS |
| TYPE: | CORE DRILL RIG |
|---|---|
| MODEL: | F600 , F600PLUS |
| DRILL PIPE: | BTW HTW PTW |
| DRILL DEPTH: | 600M 400M 160M |
| ENGINE POWER: | 3*23.5KW /300RPM |
| Type: | Full Hydraulic Surface Core Drill Rig |
|---|---|
| Model: | CR15 |
| Engine: | Cummins QSB6.7 (EU Stage IIIA) 178kw |
| Drilling Capacity: | BQ 2050m NQ 1650m HQ 1350m PQ 950m |
| Transport Dimensions: | 5980×2240×2480mm |
| Type: | Full Hydraulic Surface Core Drilling Rig |
|---|---|
| Model: | CR16 |
| Engine: | Cummins QSB6.7 (EU Stage IIIA) |
| Drilling Capacity: | BQ 2050M NQ 1650M HQ 1350M PQ 950M |
| Transport Dimensions: | 5980×2240×2480mm |
| Drilling Depth(m): | 400M |
|---|---|
| Borehole Diameter: | BQ NQ HQ |
| Engine Power: | 74kw |
| Overall Dimension(L*W*H)(during Transportation): | 5.6*2.15*2.4 |
| Weight: | 5000 Kg |
