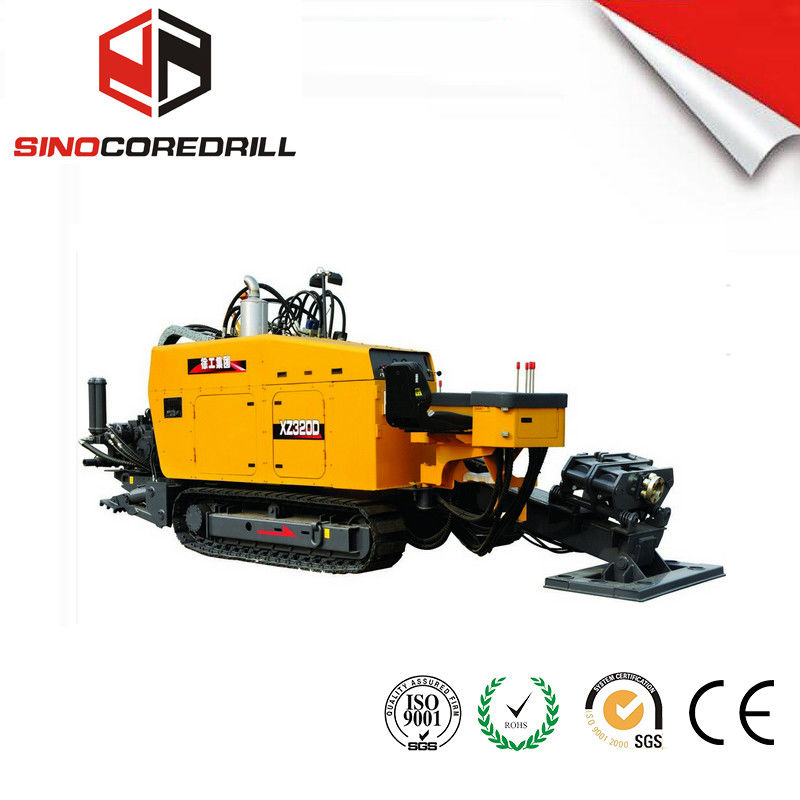

32 Tons 12000NM Horizontal Directional Drilling Machine / Directional Drilling Equipment
1
MOQ
32 Tons 12000NM Horizontal Directional Drilling Machine / Directional Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Certification: CE,ISO9001
Model Number: XZ320E
High Light:

hydraulic drilling rig

,

hdd horizontal directional drilling

Payment & Shipping Terms
Packaging Details: Sea worthy delivery package
Delivery Time: 10 working days
Payment Terms: T/T, L/C
Supply Ability: 1 set /week
Specifications
Thrust-pullback Force: 320kn
Maximum Spindle Torque: 12000 Nm
Spindle Speed: 0-140RPM
Carriage Thrust/pullback Travel Speed: 0-15m/min
Model: Cummins 6BTA5.9-C205
Power: 153kw
Drilling Fluid Pressure: 8Mpa
Type: Horizontal Directional Drilling Machine For Sale
H.S.CODE: 843041
Drilling Angle: 0-25
Product Description



32 Tons 12000NM Horizontal Directional Drilling Machine / Directional Drilling Equipment





1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.

2.Rubber tracks have the least impact on roads, lawns and scenic spots.

3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.

4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.

5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.

6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.

7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.

Engine
Model - Cummins 6BTAA5.9-C205
Rated power KW/r/min 153/2200
Push and pull
Maximum force KN 345
Maximum speed m/min 25
Rotation
Torque N · m 12600
Maximum rotation speed r/min 140
Mud pump
Maximum flow L/min 320
Maximum pressure Mpa 8
Drill rod mm*m φ73×3
Lorry crane
Hoisting weight T --
Lifting moment t•m --
Maximum entry angle ° 20
Maximum return diameter mm φ800
Weight T 10
Dimension mm 6200×2250×2450
Remark - Optional: 1. cab; 2. Air conditioner; 3.automatic tongs; 4.semi-automatic tongs; 5.single anchor; 6.double anchor; 7.mud antifreeze
