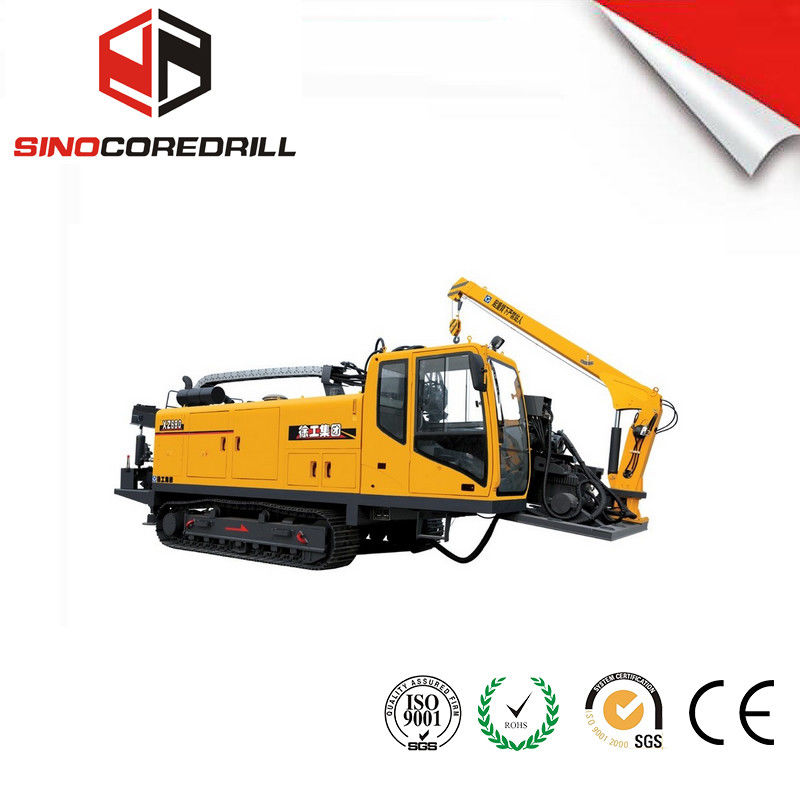

XZ680 680KN horizontal drilling drilling machine with Maximum spindle torque 27000 Nm
1
MOQ
XZ680 680KN horizontal drilling drilling machine  with Maximum spindle torque 27000 Nm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: XCMG
Certification: CE,ISO9001
Model Number: XZ680
High Light:

hdd horizontal directional drilling

,

horizontal directional drilling machine

Payment & Shipping Terms
Packaging Details: Sea worthy delivery package
Delivery Time: 10 working days
Payment Terms: T/T, L/C
Supply Ability: 1 set /week
Specifications
Thrust-pullback Force: 680kn
Maximum Spindle Torque: 27000 Nm
Spindle Speed: 0-100RPM
Carriage Thrust/pullback Travel Speed: 0-38m/min
Model: Cummins NTA855 -C335
Power: 250kw
Drilling Fluid Pressure: 8Mpa
Type: Horizontal Directional Drilling Machine For Sale
H.S.CODE: 843041
Drilling Angle: 0-25
Product Description

XZ680 680KN horizontal drilling drilling machine with Maximum spindle torque 27000 Nm​





1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.

2.Rubber tracks have the least impact on roads, lawns and scenic spots.

3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.

4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.

5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.

6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.

7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.



Engine
Model - Cummins NTA855 -C335
Rated power KW/r/min 250/2100
Push and pull
Maximum force KN 680
Maximum speed m/min 30
Rotation
Torque N · m 27000
Maximum rotation speed r/min 100
Mud pump
Maximum flow L/min 600
Maximum pressure Mpa 10
Drill rod mm*m φ102×6
Lorry crane
Hoisting weight T 2
Lifting moment t•m 4
Maximum entry angle ° 18
Maximum return diameter mm φ1000
Weight T 23
Dimension mm 11350×2800×3000
Remark - -
