500 KN 194KW Horizontal Directional Drilling Rigs 50 T Hdd Machine High Performance
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE,ISO9001
Model Number: HDP-50H
High Light:

hydraulic drilling rig

,

horizontal directional drilling machine

Payment & Shipping Terms
Packaging Details: Sea worthy delivery package
Delivery Time: 10 working days
Payment Terms: T/T, L/C
Supply Ability: 1 set /week
Specifications
Thrust-pullback Force: 500kn
Maximum Spindle Torque: 18000 Nm
Spindle Speed: 0-96RPM
Guide Hole Diameter: 170mm
Model: Cummins 6CTA8.3-C260
Power: 194kw
Drilling Fluid Pressure: 10 Mpa
Type: Horizontal Directional Drilling Machine For Sale
H.S.CODE: 843041
Drilling Angle: 8-18
Product Description

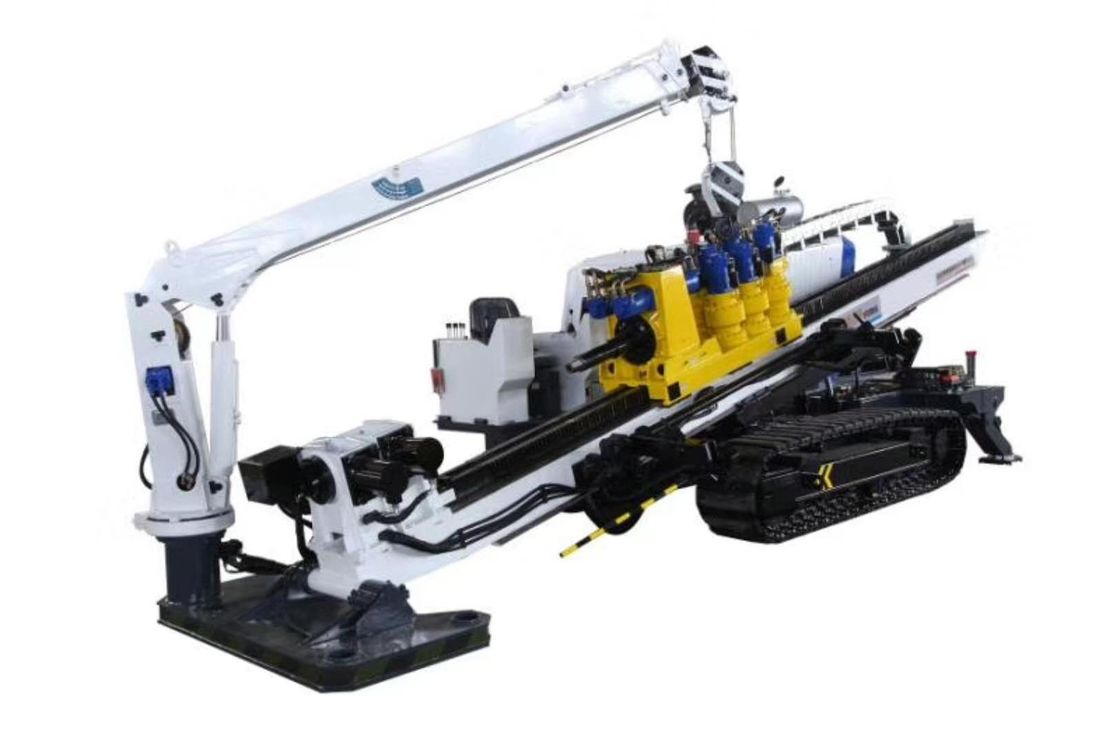

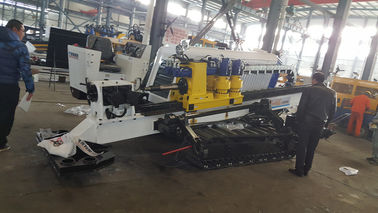

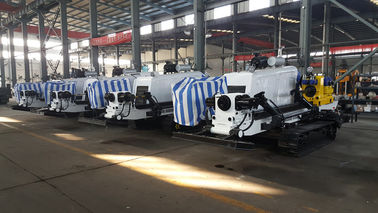

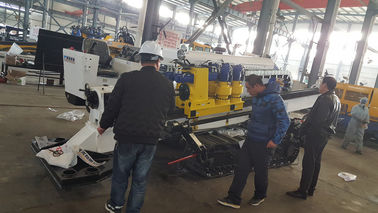

High Performance 500 KN 194KW Horizontal Drilling Drilling Machine 50t HDD





Specification :



Max. Push / Pull capacity: 50T

Push / Pull system: Pinion-Rack Type,

4 Gear driving 2 gear stepless speed adjustment

I Gear: 6 m/min

II Gear: 12 m/min

III Gear: 35 m/min

Rotary Driving

Rotary System: Gear-Driven (2 Gear Speed)

I gear torque: 18000Nm@45r/min

II gear torque: 9000Nm@90r/min

Engine Power

Cummins 6CTA8.3.-C260 194kw/2200r/min

Hydraulic System

The rotary push-pull of drilling machine adopts open system

Rig Chassis

Adopting steel crawlers with rubber track boots, the rig can not only sustain heavy loading, but travel on all kinds of roads.

Drill Crane 2T Straight arm crane

Drill Rod size 4.5mΦ 89-NC31

Rig Clamping Device.

Max Screw On Torque: 20500Nm

Max Breakout Torque : 40000Nm

Drilling Angle: 8°~ 18°

Mud Pump :Flow Speed 600L/min





1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.



2.Rubber tracks have the least impact on roads, lawns and scenic spots.



3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.



4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.



5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.



6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.



7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.



Item Name Specification Number Remark
  Engine Power 194KW 1 set Dongfeng Cummins
Main machine configuation (2200r/min)
Hydraulic pump P7600/140 1 set PERMCO
P7600/63 1 set PERMCO
P7600/63 1 pc PERMCO
Power head motor Rotary motor 6K490 4 sets EATON
Rotary motor 6K490 4 sets EATON
Track motor Walking motor JT08VK 2 sets KOREA SUNJIN
Push and pull rotary valve GCJX-G25L 2 groups Domestic
Auxiliary valve group 4WE   HUADE, HONGGUANG
Hydraulic attachment     Domestic
Hydraulic tubes     Domestic
Planetary reducer Torque 6800Nm 4 sets Domestic
Mud pump 600L/min Mechanical shift 1 set HENGYANG Geotec machinery
Steel track 140 pitch 2 pcs Outsourcing
Crane 2 tons 1 set Outsourcing
Shoes boots   1 set (Not included) Optional
Robot arm   1 set (Not included) Optional

Accessories Front connector NC31 Double top buckle 1 pc Home-made
Anchor   5 pcs Home-made
Oil standard parts Tongs 30 pcs Outsourcing
Seals Seal, combination pad 2 sets Home-made
