Product Details:
|
| Product Name: | Horizontal Directional Drilling Rigs | Power Type: | Hydraulic |
|---|---|---|---|
| Rated Torque: | 13000 N·M(9581 Lbf·ft) | Features: | High Efficiency, Low Oil Temperature. |
| Model: | FDP-32 | Material: | High-solid Steel |
| High Light: | hydraulic drilling rig,hdd horizontal directional drilling |
||

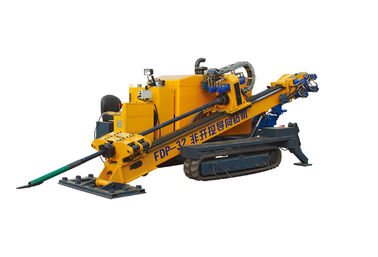

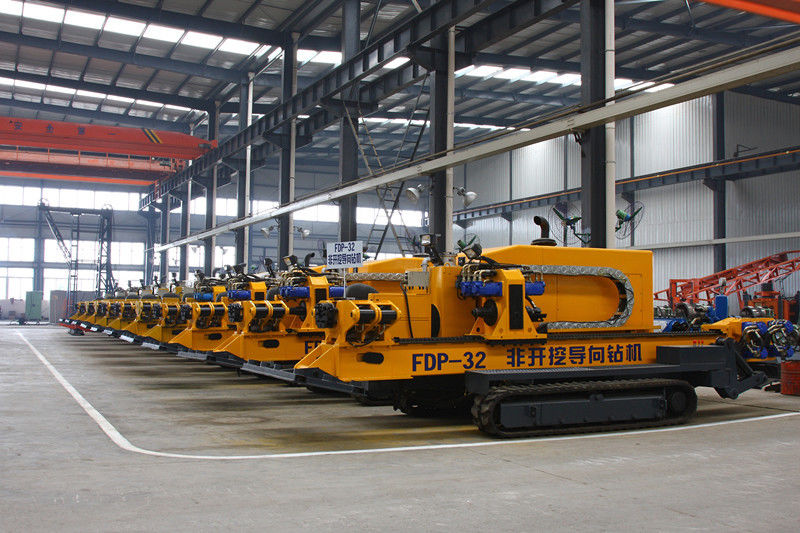

Full Hydraulic Horizontal Direcitonal Drilling Rigs FDP-32 , Self-propelled
Specifications
FDP-32 is a full Hydraulic Horizontal Direcitonal Drilling Rig
self-propelled with rubber crawler belts
high efficiency, low oil temperature.
Deutz 145KW(195HP)
The FDP-32 is a full Hydraulic Horizontal Direcitonal Drilling Rig self-propelled with rubber crawler belts, with advanced and compact structure; with high efficiency, low oil temperature. All main hydraulic components are selected and adopted from famous-brand products as auxiliary equipments. With movable mast, the rig is guaranteed to drill within the full angle scope and it is in good stability with graceful structure.
Main auxiliary equipments, such as diesel engine, hydraulic pumps, valves motors, reducer and key hydraulic components are all selected and adopted from famous-brand products;
Adopting low-emission and low noise of diesel engine, the rig is more suitable to be applied for performance in the city;
Adopting advanced control system, the power consumption is reduced to the lowest level under non-loaded operation condition;
Equipped with wireless directional guide device, it is easy to operate;
The mud pump is driven hydraulically with mechanical gear shift/stepless speed change. The displacement could be adjusted flexibly according to different geological conditions and performance techniques.
Adopting injection and recirculation storage procession method, the efficiency will be increased and the intensity of labor will be decreased;
With the rod, 73mm in diameter and 3000mm in length, the drilling tools are complete in matching accessories and could be produced in accordance with the requirement of clients unusually.
|
The Main Machine |
|
|
Power of Engine |
Deutz 145KW(195HP) |
|
Max. Push capacity |
320KN (71936 lbf) |
|
Max. Pull capacity |
320KN (71936 lbf) |
|
Rated Torque |
13000 N·M(9581 lbf·ft) |
|
Hollow Spindle RPM |
Lower 0-48r/min |
|
High 0-96r/min |
|
|
Feeding Stroke |
3300 mm(130 inch) |
|
Diameter of Guide Hole |
130 mm(5.12 inch) |
|
Drilling Angle |
0°—20° |
|
Pressure of hydraulic system |
20Mpa(2901 psi) |
|
Traveling speed |
2-2.6 km/h (6560-8528 feet/h) |
|
Structural Style |
integrated with rubber crawler and mud pump |
|
Dimension (L×W×H) |
5820×2250×2400 mm(229×89×94.5 inch) |
|
Weight |
8400 kg(18522 lb) |
|
Mud Pump |
|
|
Specification |
BW-320 |
|
Max. Discharge |
320 L/min(85US Gallons/min) |
|
Peak Pressure |
10 MPa(1450 psi) |
|
Mud Process System |
|
|
Data of engine |
4KW(5.4HP) petrol engine |
|
Pump parameter |
30 m3/h (1059 feet3/h) |
|
Mud processing capacity |
6 m3/h (212 feet3/h) |
|
Mud Tank |
2M3 (71 feet3/h) |
|
Drilling tools and auxiliary system |
|
|
Specification of Rod |
73×3000 mm(2.87×118 inch) |
|
Guide Bit |
130 mm(5.12 inch) |
|
Reamer |
325;400;500;600;720;830 |
|
(12.8;15.7;19.7;23.6;28.3;32.7 inch) |
|
|
Distributor |
40T(88200 lb) |
|
Tracker |
Optional Part |
