Product Details:
|
| Type: | CPT Static Cone Penetrometer | Engine: | Single-cylinder 175 Diesel Engine Water Cooling Horizontal Four Stroke Water Cooling |
|---|---|---|---|
| Rated Power: | Speed: 4.85KW-2600r/min | Weight: | 180kg(excluded Accessories) |
| Anchor Diameter (mm): | 150~250 | Working Environment Temperature: | –25 C°-45C° |
| High Light: | cone penetrometer apparatus,cone penetration apparatus |
||
Hydraulic quick coupling Lightweight CPT Static Cone Penetrometer Weight 180kg (excluded accessories)

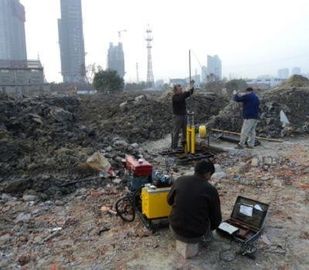

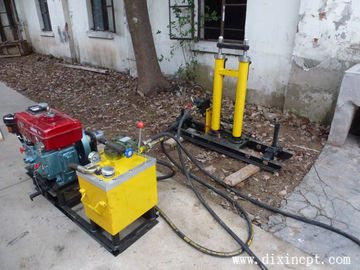

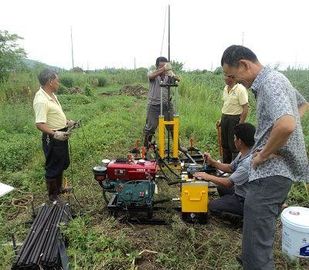

WYSB-5 is a very economical and lightweight CPT test equipment, which has separate hydraulic power unit and hydraulic cylinder unit connected with flexibly with high pressure hose and hydraulic quick coupling. The lightweight size is easy to handle and can be accessed almost anywhere else where large equipment can't reach, especially for shallow holes roads. It can also be easily installed on a wide range of new or existing platforms such as transport vehicles, tracked chassis, towed cars, barges, etc.
High quality hydraulic components and other components ensure the equipment have the stable and reliable performance. Adopting anti-high oil temperature design, effectively guaranteeing the service life and efficiency of equipment under high temperature weather days.
Configured with accessories can be extended for in-situ tests such as pore pressure static test (CPTU) and vane shearing test (VCT).
Main Technical Specification:
Engine: Single-cylinder 175 diesel engine water cooling horizontal four stroke water cooling
Rated power - speed: 4.85KW-2600r/min
CPT Hydraulic cylinder device: Rated penetration force30KN; Rated extraction force 50KN; 570mm stroke for fast rise.
Probe tube form: Mechanical probe holder or pad plug-in
Handle form: designed trolley
Weight: 120kg(excluded accessories)
Anchor form: hydraulic anchor or manual anchor
Ground anchor form: Single or multi-leaf anchor
Anchor diameter (mm): 150~250
Working environment temperature: –25 C°-45C°
Matching probe: 10cm2 or15cm2 of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).
Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).
Probe specifications (mm): integral high-strength joint-less probe Φ25~Φ32 (optional).
