Product Description

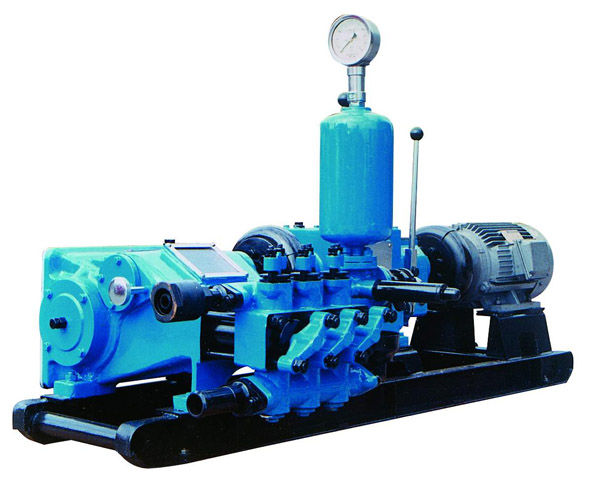

BW-150 MUD PUMP

BW-150 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1000 meter.



BW-150 MUD PUMP 1840*795*995 horizontal,triplex.single acting reciprocation piston pump 0



BW-150 MUD PUMP Specifications:

1. Small size, light weight.
2. Flexible manipulation
3. Good decomposition.
4. Can in four wheel moved easily.

BW-150 MUD PUMP  APPLCATIONS:

It is horizontal,tri-cylinder,reciprocating single-acting pistion pump,eight different pressures and flows are available,so it can convey water,lavage,saponifization liquid for geological drilling projects.It matches 1500m small caliber diamond drilling,and it can also perfuing slurry.This pump is power saving,easy to operate,high quality and durable,easy to disassemble and relocate.



BW-150 MUD PUMP

Type

Horizontal,  triplex,  reciprocating,  single acting piston pump

Stroke

70mm

Bore

70mm

Pump speed (s.p.m)

222, 130, 86, 57, 183, 107, 71, 47

Output volume (l.p.m)

150, 90, 58, 38, 125, 72, 47, 32

Discharge pressure (Mpa)

1.8, 3.2, 4.8, 7.0, 2.3, 4.0, 6.0, 7.0

Volumetric efficiency

85%

Input power (Kw)

7.5

Suction pipe dia (mm)

50

Discharge pipe dia (mm)

32

Drilling hole depth (m)

Diamond core drilling < 1500

Overall dimensions (mm)

1840*795*995

Weight (kg)

516(with motor)
