Product Details:
|
| Type: | Water Well Drilling Rig | Application: | Water Well , Core Drilling ,shallow Oil And Gas |
|---|---|---|---|
| Chassis: | Truck-mounted | Engine: | 82kw Diesel Engine |
| Weight: | 24500kgs | ||
| High Light: | multifunction truck mounted water drilling rig,1000m truck mounted water well drilling rig,350m truck mounted water well drilling rig |
||

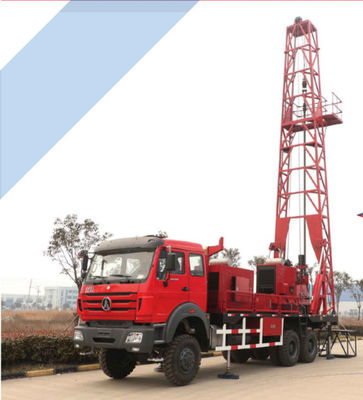

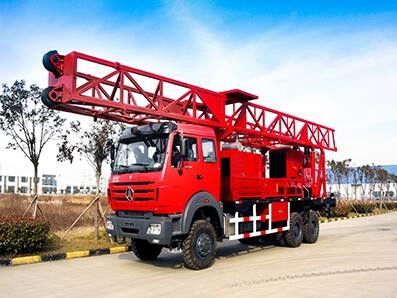

High Integrated 350m ~1000m Truck Mounted Water Well Drilling Rig Multi-Function Core Drill Rig
TMC-20X truck mounted drilling machine is mainly used for alloy, diamond based core drilling, can also be used for engineering geological exploration, hydrology, well drilling, shallow oil, natural gas, geothermal exploration and development, as well as large diameter foundation pile construction, can also be used for dam grouting and tunnel ventilation and drainage engineering construction drilling.The rig has the advantages of reasonable structure, good mobility, high integration, large drilling capacity, wide use, stable performance, strong reliability and high standardization.
| max. speed | 105km/h | |
| driven type | 6×6 | |
| drill tower rated load | 20t | |
| diameter of orifice device | 325mm | |
| max torque of vertical shaft | 5800Nm | |
| max lifting power of vertical shaft | 160kN | |
| speed of vertical shaft | 62-1500rpm | |
| mud pump | rated flow | 600lpm |
| pressure | 10MPa | |
| generator | power | 40kW |
| voltage/current | 400V/72.2A | |
| drill rig diesel engine | module | 4BTA3.9-C110 |
| power | 82kW@1800rpm | |
power station diesel engine |
module | 6BTA5.9-C150 |
| power | 110kW@1800rpm | |
rated output current |
72.2A | |
outside dimension |
transporting | 12900×2500×3992mm |
working |
16500×2850×20520mm | |
weight |
24500kg | |
drill rod type |
drill rod size |
drilling depth |
|
domestic drill rod |
Internal thickening drill rod | φ55×5.5 drill rod | 1600m |
| φ60×6 drill rod | 1200m | ||
cord core drill rod |
φ55.5×4.75 drill rod | 1700m | |
| φ71×5 drill rod | 1300m | ||
| φ89×5 drill rod | 1000m | ||
(Diamond Core Drill Manufacturers Association) drill rod |
Internal thickening drill rod |
BW drill rod | 1650m |
| NW drill rod | 1300m | ||
| HW drill rod | 850m | ||
| cord core drill rod | BQ drill rod | 2000m | |
| NQ drill rod | 1600m | ||
| HQ drill rod | 1250m | ||
drill rod size |
drilling diameter |
drilling depth |
| 60mm (external thickening) drill rod |
200mm | 1000m |
| 73mm (external thickening) drill rod |
350mm | 600m |
| 89mm( (external thickening) drill rod |
500mm | 350m |
