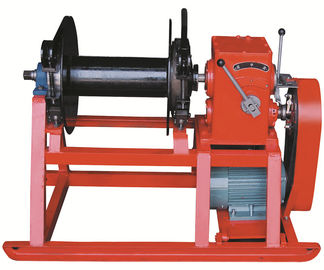

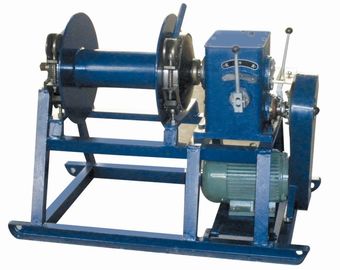

High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling

High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling
High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling

Large Image :  High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 30Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order

High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling

Description
High Light:

drilling rig components

,

rig machine parts



High Speed Drill Rig Parts , Hydraulic electric wireline winch for drilling









The wireline winch is the most commonly used wireline core drilling part in drilling field .It is suitable for deep mining and explration drilling .It desighs with powerful electric drive. Wireline winch comes in different  sizes  providing more fiexibility for  our clients .We can sustomize the winches based on the clients needs .

Specifications



Hydraulic Driven Winch:



Max. lifting power (empty drum): 1200 Kg
Max. speed:  164 m/min.
Equipped with spindle driven braking system
Suitable for 900m steel-wire line (dia 14mm)
Grooved drum
Hydraulic requirements : 65 l/min @ 200 bar







Advantage&Feature



1)Top quality with competitive price.

2)Widely used in the double beam bridge crane and gantry crane.

3)Easy to install and high quality.

4)Compact structure and reasonable design.

5)overload protection,shock protective, Explosion-proof performance



Features:



- steel cable available

- ideal for use with conventional drill rigs

- strong lifting power up to 3 tones

- easy to operat

- safe to use

- reliable performance



Specificaitions of winch





Type Rated load (KN) Rated  speed

Rope  capacity

Rope  diameter

Motor model

Motor  power

Overall  dimensions

Total weight

(m/min) (m) (mm) (KW) (mm) (kg)
JM1 10 16 100 9.3 Y112M-6 3 620*701*417 270
JM1.6 16 16 150 12.5 Y132M-6 5.5 945*996*570 500
JM2 20 16 150 13 Y160M-6 7.5 945*996*570 550
JM3.3 32 9.5 150 15.5 YZR160M-6 7.5 1430*1160*910 1100
JM3.2B 32 12 195 15.5 YZR160M-6 7.5 1082*1004*610 536
JM5 50 10 270 21.5 YZR160L 11 1235*1230*805 1560
JM5B 50 9.5 200 21.5 YZR160L 11 1620*1260*945 1800
JM5C 50 9.5 250 21.5 YZR160L 11 1235*1230*805 1800
JM5D 50 15 250 21.5 YZR180L-6 15 1235*1230*805 1850
JM5E 50 20 250 21.5 YZR200L-6 22 1235*1230*805 2000
JM6 60 9.5 270 24 YZR180L-6 15 1235*1509*805 1800
JM8 80 8 250 26 YZR180L-6 15 2090*1475*956 2900
JM8B 80 9.5 350 26 YZR180L-6 15 1075*1598*985 2650
