Φ150~Φ250 Hydraulic Impact 80~100 m Top Drive Anchor Drilling Rig
N/A
MOQ
Φ150~Φ250 Hydraulic Impact  80~100 m   Top Drive Anchor Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Certification: CE
Model Number: 150C
High Light:

Hydraulic drill rig

,

core drill rigs

Payment & Shipping Terms
Packaging Details: LOADED WITH 1*40 HQ CONTAINER
Delivery Time: 15~20 WORKING DAYS
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Specifications
Type: Top Drive Anchor Drilling Rig
Hole Diameter (mm): Φ150~Φ250
Hole Depth (m): 80-100M
Angle(°): 0~110
Rod Diamter (mm): Φ76,Φ133,Φ146
Transportation Dimensions (LxWxH): 5400×2100×2000
Weight: 6800kgs
Product Description

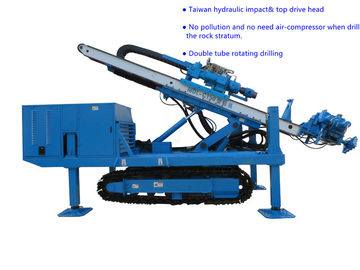

Φ150~Φ250 Hydraulic Impact 80~100 m Top Drive Anchor Drilling Rig





1.It has adopted top hydraulic rotary power head impact which is Taiwan imported, multi-angle drilling,and excellent performance.

2.The drilling rig can be applied for different technique methods and a variety of ground conditions,Especially in the difficult work condition,such as the imcompact ground area,the gravel place,and the fragment rock stratum,this drilling can always provide the operator excellent solutions.

3.It has no dull pollution and no need air-compressor when drill the incompact ground area, the gravel place and fragment rock stratum.

4.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency.

5. In complex condition, it can use double tube rotating drilling,in order to make hole stable and easy to slip casting.





Applications:





1. Urban subway, high-rise buildings, airport, Geothermal hole,foundation anchoring.

2. Jet grouting and dewatering.

3. The blast hole,the anti-floating anchoring hole .

4. It can be also used for pipe shed engineering



Type MDL-C150
Hole Diameter (mm) Φ150~Φ250
Hole depth (m) 80-100
Angle(°) 0~110
Rod diamter (mm) Φ76,Φ133,Φ146
Rotary Torque(N.m) 11000
Rotary Speed(P/R,r/min) 12~138
Impact torque (N.m) 600
Impact infrequnce(min-1) 1500~2300
Pulling capacity(KN) 62
Feeding pacacity(KN) 30
Pulling speed(m/min) 1.4,7,18,26
Feeding speed(m/min) 0~2.8,14,36,51
Stroke(m/min) 2600
Sliding stroke (mm) 900
Max Mast level height to ground (m) 3.6
Power(KW) 93kw (cummins)
Weight (kg) 6800
Climb angle 25°
Woking overall (L×W×H,mm) 4600×2500×5600
Transportaion overall (L×W×Hmm) 5400×2100×2000
