High Efficiency BW250 250L Output 6MPa Mine Horizontal Triplex Mud Pump
N/A
MOQ
High  Efficiency  BW250 250L Output 6MPa Mine Horizontal Triplex Mud Pump
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: Certification: ISO9001、CE
Model Number: BW250
High Light:

mud pumps for drilling rigs

,

mud pumps for drilling rigs

Payment & Shipping Terms
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Specifications
Type: Triplex Mud Pump
Size: BW250
STROKE(mm): 100
LINER DIA(mm): 80 65
Volumetric Efficiency: 85%
Total Efficiency: 72%
Weight: 500kg
Dimession: 1000*1550*1200mm
Product Description

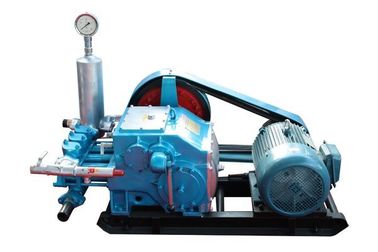

BW250 250L Output 6MPa Mine Horizontal Triplex Mud Pump





BW250 triplex mud pump is horizontal,tri-cylinder, reciprocating triplex-acting piston pump. Could be adjusted to different pressure and flow. Its max pressure can reach as high as 6 Mpa (60 Bar).



It has the main features of multe-speed shaft gears, power saving, simple and compact design, light in. weight and high efficiency, and durability, easy and safe in operation, maintenance and low operation costs. it works usually under the conditions of(18-25)sec.mud viscosity not more than 4% sand laden in mud, (7-10)PH-value and(0-50)℃ temperature







MODEL BW-150 BW-160/10 BW250
TYPE SINGLE-ACTING TRIPLEX PISTON SINGLE-ACTING TRIPLEX PISTON SINGLE-ACTING TRIPLEX PISTON
STROKE(mm) 70 70 100
LINER DIA(mm) 70 70 80 65
PUMP SPEED(High  Efficiency  BW250 250L Output 6MPa Mine Horizontal Triplex Mud Pump 0)

222 130 86 57

183 107 71 47

200 132 83 55

200 116

72 42

200 116

72 42

DISPLACEMENT(L/min)

150 90 58 38

125 72 47 32

160 107 67 44

250 145

90 52

166 96

60 35

PRESSURE(Mpa)

1.8 3.2 4.8 7.0

2.3 4.0 6.0 7.0

2.5 4 6.5 10

2.5 4.5

6.0 6.0

4.0 6.0

7.0 7.0

INPUT POWER(kw) 7.5

11( electric motor)

13(diesel engine)

15
SUCTION PIPE DIA(mm) 51 51 76
DISCHARGE PIPE DIA(mm) 32 32 51
MASS(kg) PUMP   380 500
GROUP 516

DRILLING HOLE

DEPTH(m)

DIAMOND CORE DRILLING<1500 <150

DIAMOND CORE DRILLING<1500

CONVENTROXAL CORE DRILLING<1000

DIMENSIONS(mm)

1840*795*995 (electric motor)

1925*795*1150

( diesel engine)

1400*860*950 1100*995*650
WEIGHT(kg)

560(electric motor)

630(diesel engine)

430 650





High  Efficiency  BW250 250L Output 6MPa Mine Horizontal Triplex Mud Pump 1

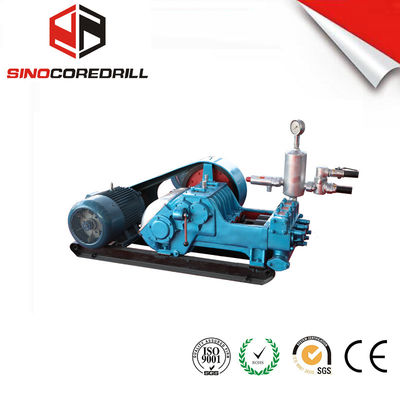

BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.





BW-250 MUD PUMP
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 100mm
Bore 80mm 65mm
Pump speed (s.p.m) 200 116 72 42 200 116 72 42
Output volume (l.p.m) 250 145 90 52 116 96 60 35
Discharge pressure (Mpa) 2.5 4.5 6.0 6.0 4.0 6.0 7.0 7.0
Volumetric efficiency 85%
Mechanical efficiency 85%
Total efficiency 70%
Input power/speed (kw/r.p.m) 15/1500
Multiple grooved pulley D.P (mm) 410(B groove*5)
Input speed of pump (r.p.m) 500
Max. suction head (m) 2.5
Inside diameter of suction hose (mm) 76
Inside diameter of discharge (mm) 51
Overall dimensions (mm) 1100*995*650
Weight (kg) 500(without power)
