Product Details:
|
| Place Of Origin: | Wuxi，China | Product Name: | Diamond Drill Bit |
|---|---|---|---|
| Brand: | Sinocoredrill | Application: | Mineral Exploration |
| Usage: | Underground Mining | Material: | Diamond |
| High Light: | Good Drilling Stability Diamond Core bit,DCDMA Impregnated Diamond Core Bits |
||

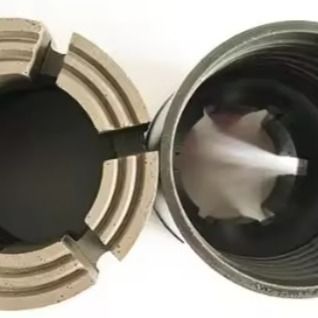

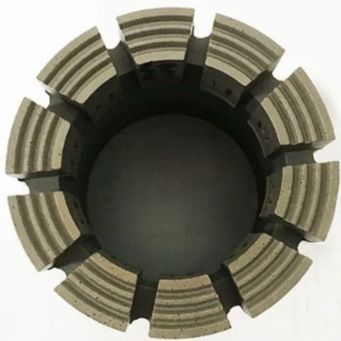

DCDMA Standard Profile Impregnated Diamond Core Bits With Good Drilling Stability
Product description:
Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. Using hierarchical mole technology, to reduce the contact area of diamond bit matrix and the labial surface of the rock surface, and improve the drilling speed. The diamond bit mole with steel layer, to increase the pressure applied to the rock drill lip, improve the drilling speed of the drill bit. Put the first-grade abrasive-high strength, coarse grain diamond and two grade abrasives -low strength, fine grain diamond in the diamond bit, to improve the life of diamond bit.
|
AVAILABLE SIZE
|
|
|
Q Series
|
AQ, BQ, NQ. NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK, Geobors
(Reaming Shell: AQ, BQ, NQ, HQ, PQ, AQTK, BQTK, Geobors)
|
|
T2 Series
|
T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
|
|
T6 Series
|
T6 76, T6 86, T6 101, T6 116, T6 131, T6 146,
|
|
T6S Series
|
T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
|
|
T Series
|
T36, T46, T56, T66, T76, T86
|
|
Z Series
|
Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
|
|
B Series
|
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
|
|
WF Series
|
HWF, PWF, SWF, UWF, ZWF
|
|
WT Series
|
RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube)
|
|
WG Series
|
EWG, AWG, BWG, NWG, HWG ( Single Tule , Double Tube )
|
|
WM Series
|
EWM, AWM, BWM, NWM, HWM
|
|
Others
|
NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TT56, TB56, TS116, CHD101
|
|
Chinese Standard
|
56mm , 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
|
|
Customised
|
Others
|
Product advantages:
1.diamond core drill bit
2.high wear resistant
3.own factory and professional technical.
4.longer drilling life.
5.solid quality
