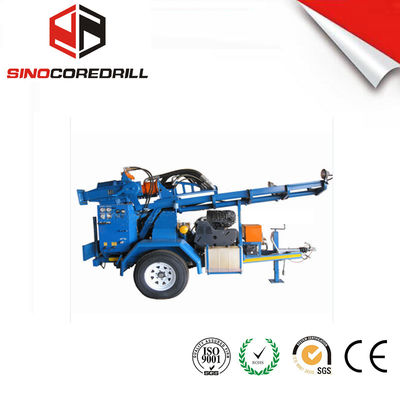

200M Protable Small Trailer Hydraulic Water Well Drilling Rig Borehole Drilling Equipment

China 200M Protable Small Trailer  Hydraulic Water Well Drilling Rig Borehole Drilling Equipment supplier

Large Image :  200M Protable Small Trailer Hydraulic Water Well Drilling Rig Borehole Drilling Equipment

Product Details:

Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO9001
Model Number: RC2

Payment & Shipping Terms:

Minimum Order Quantity: N/M
Price: USD
Packaging Details: exporting seaway package
Delivery Time: 20 working days
Contact Now
Detailed Product Description
Type: Trailer Hydraulic Water Well Drilling Rig Drill Depth: 0-200 M
Drilling Diameter: 90 - 250mm Drill System And Operation: Hydraulic
Weight: 2200kgs DIESEL ENGINE: Deutz 38KW

200M Protable Small Trailer Hydraulic Water Well Drilling Rig Borehole Drilling Equipment

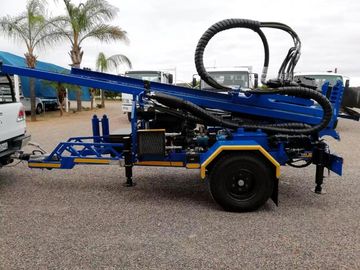

RC2 trailer mounted water well drilling rig able to handle water well drilling .

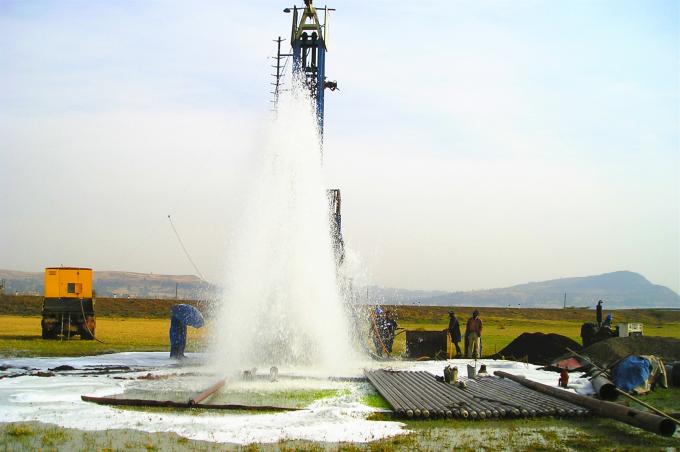

In most cases where boreholes are drilled in Africa it is to install hand pumps or solar pumps with a size smaller than 6" .For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps. The rig must be able to handle 6" PVC casing installations.

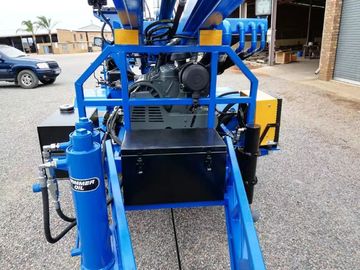

This water drilling rig, uses proven technology like the Deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank. We have decided to use roquete valves.

This portable water well drilling equipment uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm.The drill tower is telescopic and uses earthlight blocks to reduce friction and is directly connected on the feed cylinder. The drill head of this water well drilling machines is powered by a white drive product with 2200 Nm torque. So if you want a quality product that can drill up to 200mm holes.

Water well drilling rigs, borehole drilling rig, Water well drilling equipment, Well Drilling Rigs, Portable Well Drilling Equipment, Hydraulic Well Drilling Rigs, portable drilling rig, drill your own water well, home water well



Specification



No. Description TWD200
1 Geology drilled All kinds
2 Drill depth 0-200 m
3 Drilling Diameter 90 - 250mm
4 Drill system and operation Hydraulic
5 Rig assembly 1 complete unit, main engine driven
6 Mobility 2 wheel tandem road trailer

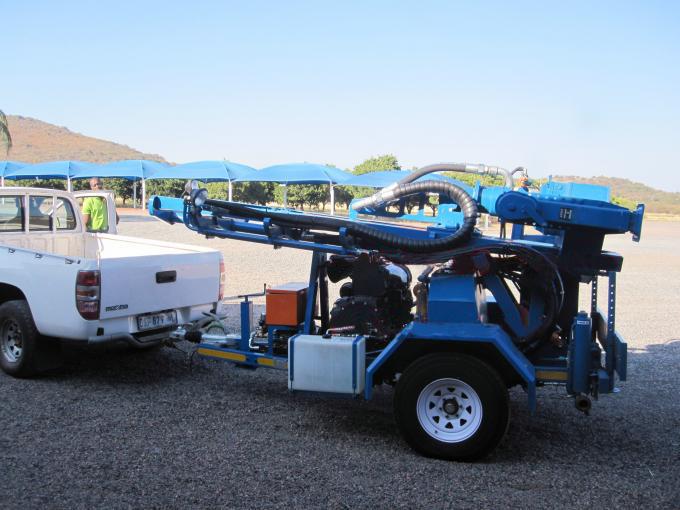

7 Transportation Towed by pickup or light truck
8 Foam pump Hydraulic driven, mounted on rig
9 Weight 2200 kg
ROTARYHEAD&FEED SYSTEM
10 Top head drive by a hydraulic cylinder through heavy duty chain.
11 Rotation torque 2300 N-m
12 Speed 0 - 80 rpm.
13 Head travel 2.25 meter
14 Pull-up capacity 50000 Nm
15 Pull-down capacity 16000 Nm
16 Pull-up speed-slow feed 1.22 meter/min
17 Pull-up speed-rapid feed 12.26 meter/min
18 Pull-down speed-slow feed 0-1.88 meter/min
19 Pull-down speed-rapid feed 0- 16.90 meter/min
DIESEL ENGINE
20 Brand Deutz
21 Power 38KW
22 Model F3-912
DRILL PIPE
23 Drill pipe length 2.00 meter
24 Drill pipe diameter 60/76/89 mm
25 Thread 2 3/8 REG API Mod
26 Power pack speed 3000 rpm.
27 Load power pack max. 47 hp.
FOAM PUMP(Optional)
28 Flow capacity 400 liter/min
29 Foam Tank 50 liter
30 Max. working pressure 40 bar
HYDRAULIC SYSTEM
31 Hydraulic tank capacity 180 liter
STABILIZING JACK
32 1 front jacks and 2 rear jacks.
33 Bore 150 mm.
34 Stroke 520 mm
AIR SYSTEM
35 Lubricator of venturi-type for down-the-hole drills.
36 Max. pressure 40 bar
37 Oil tank capacity 8 liter
DIMENSIONS
38 Overall length 4540 mm
39 Overall width 1800 mm
40 Overall height 2100 mm
