High Performance BW150 Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump

China High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier
High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier High Performance BW150  Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump supplier

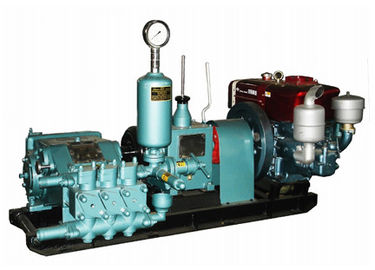

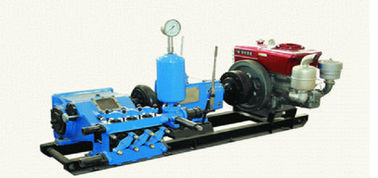

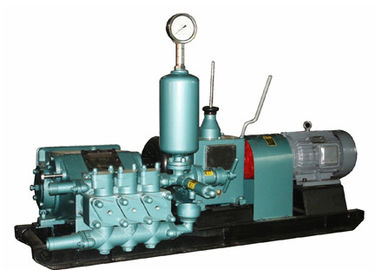

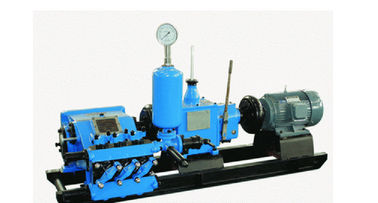

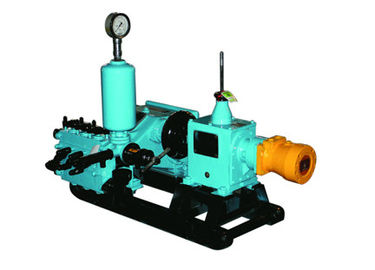

Large Image :  High Performance BW150 Horizontal Reciprocating Single - Acting Triplex Piston Mud Pump

Product Details:

Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE;ISO9001;2008
Model Number: BW150

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: 10 ~15 Days
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
Type: Horizontal Reciprocating Single-acting Triplex Piston Pump Cylinder Dia. (mm): 70
Stroke (mm): 70 Rated Power (kW): 7.5kw
Suction Height (m): 2.5 (fresh Water) Suction Pipe Dia. (mm): 51
Discharge Pipe Dia. (mm): 32 Dimension (L × W × H) (mm): 1840 × 795 × 995
Weight (kgs): 516
High Light:

drilling mud pump

,

mud pumps for drilling rigs

BW150 Horizontal Reciprocating Single-Acting Triplex Piston Mud Pump





BW-150 mud pump is a horizontal reciprocating single-acting triplex piston pump with eight kinds of pressure and discharge available for use. This mud water pump is commonly applied to deliver drilling fluids into drill hole in the drilling engineering of geology, and it is fit for diamond drilling with small aperture and a maximum depth of 1500 m. It is also perfect for middle and low pressure cement slurry perusing.



The drilling fluid used by this reciprocating piston pump shall not contain any chemical impurities that are corrosive to metals and rubber parts, and the temperature of the fluid shall not exceed 50°. When using mud for flushing, the recommended proportion of water and mud is between 1.03 and 1.12, viscosity of mud between 18 and 25S, silt content lower than 4%, diameter of sand particles not exceed 3 mm, and PH value around 7 to 8. No tiny mud balls, weeds, leaves and other impurities are allowed in the mud.



With long service life of high wear parts, small volume, light weight, easy assembly and disassembly, this mud water pump enjoys stable performance.





Applications





This mud water pump is extensively utilized in industries including geology, coal, building, metallurgy, chemicals, railway, water conservancy, oil and other fields.





Features





This mud water pump is designed with multiple shifts for flexible speed and displacement adjustment. With compact structure and light weight, this reciprocating piston pump is also energy-saving, highly-effective and durable in use. In addition, it is easy to operate and convenient to maintain, keeping the maintenance cost low. This mud pump is primarily used as low and medium grouting pump in geological drilling, geological engineering construction and foundation treatment.





BW-150 MUD PUMP
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 70mm
Bore 70mm
Pump speed (s.p.m) 222,130,86,57,183,107,71,47
Output volume (l.p.m) 150,90,58,38,125,72,47,32
Discharge pressure (Mpa) 1.8,3.2,4.8,7.0,2.3,4.0,6.0,7.0
Volumetric efficiency 85%
Input power (Kw) 7.5
Suction pipe dia (mm) 51
Discharge pipe dia (mm) 32
Drilling hole depth (m) Diamond core drilling < 1500
Overall dimensions (mm) 1840*795*995(with motor)
Weight (kg) 516(with motor)
