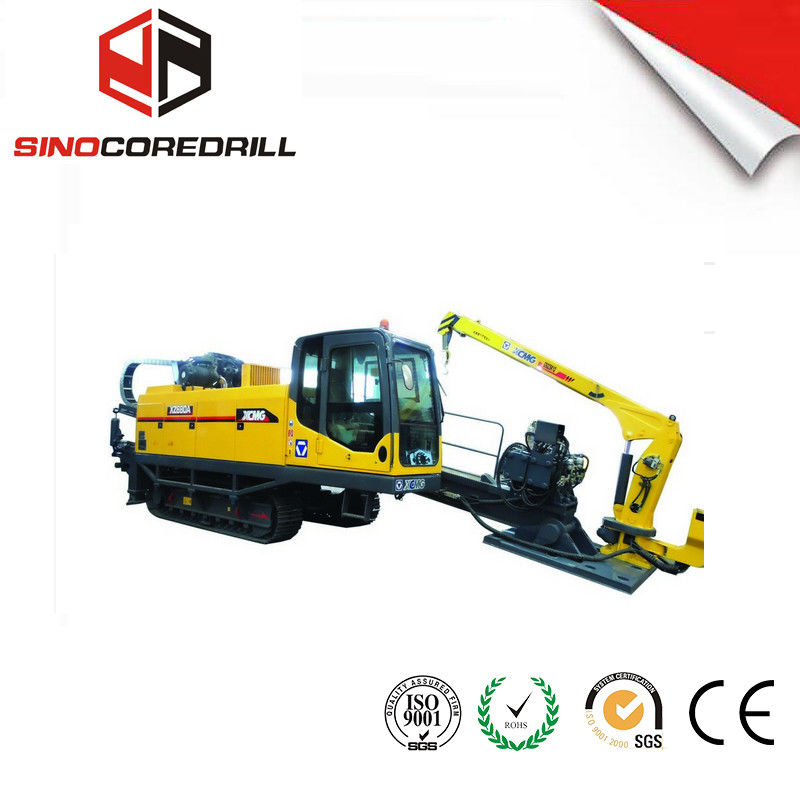

XZ680A HDD rig 725KN horizontal drilling drilling machine Maximum spindle torque 31000 Nm
  • name
  • name

XZ680A HDD rig 725KN horizontal drilling drilling machine Maximum spindle torque 31000 Nm

Model Number: XZ680A
MOQ: 1
Packaging Details: Sea worthy delivery package
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO9001
Thrust-pullback Force:
725kn
Maximum Spindle Torque:
31000 Nm
Spindle Speed:
0-110RPM
Carriage Thrust/pullback Travel Speed:
0-32m/min
Model:
Cummins 6LTAA8.9-C325
Power:
239kw
Drilling Fluid Pressure:
8Mpa
Type:
Horizontal Directional Drilling Machine For Sale
H.S.CODE:
843041
Drilling Angle:
0-25
Supply Ability:
1 set /week
Highlight:

hydraulic drilling rig

,

hdd horizontal directional drilling

Product Description



XZ680A HDD rig 725KN horizontal drilling drilling machine Maximum spindle torque 31000 Nm





1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.

2.Rubber tracks have the least impact on roads, lawns and scenic spots.

3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.

4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.

5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.

6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.

7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.



Engine
Model - Cummins 6LTAA8.9-C325
Rated power KW/r/min 239/2200
Push and pull
Maximum force KN 725
Maximum speed m/min 32
Rotation
Torque N · m 31000
Maximum rotation speed r/min 110
Mud pump
Maximum flow L/min 600
Maximum pressure Mpa 10
Drill rod mm*m φ102×6
Lorry crane
Hoisting weight T 2
Lifting moment t•m 4
Maximum entry angle ° 18
Maximum return diameter mm φ1000
Weight T 21
Dimension mm 11610×2475×3115
Remark - Optional: semi-auto tongs
