HYDX-6 Full Hydraulic Diamond Core Rig With 179KW Cummins Diesel Engine

Description
Model: Cummins 6CTA (turbocharged And Charge Water Cooled) Displacement: 8.3L (2.19 US Gallons)
Power: 178kW (240HP) Rated RPM(Factory Setting): 2200rpm
Rotation Motor: Double Hydraulic Motor -variable And Reversible Maker: SAUER-DANFOSS Weight: 14500 Kg(31973 Lb)
Transport Dimensions (L × W ×H ): 5900×2240×2500mm (232.3×88.1×98.4 Inch)
Highlight:

Full Hydraulic diamond core rig

,

179KW diamond core rig

,

Cummins diamond core rig

HYDX-6 Full Hydraulic Diamond Core Rig With 179KW Cummins Diesel Engine

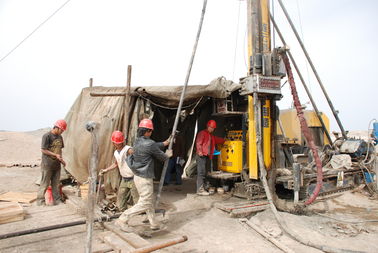

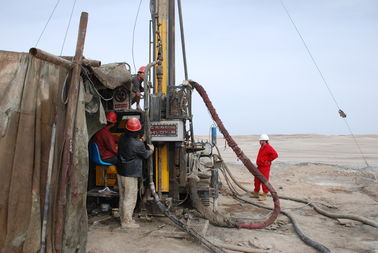

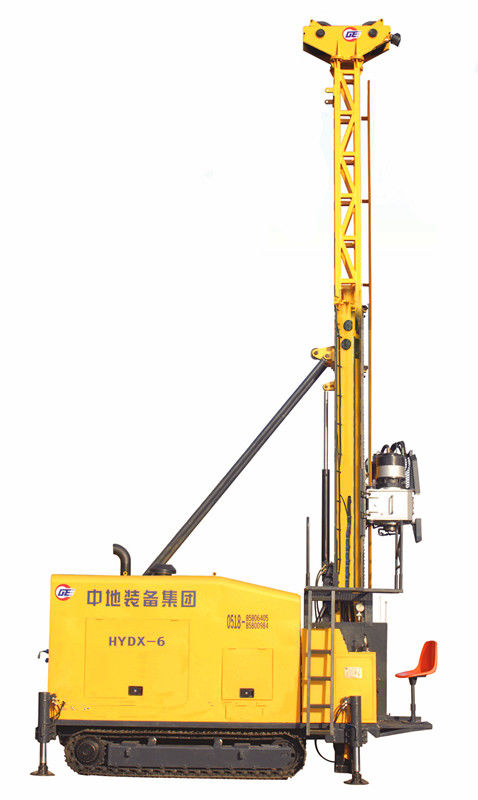

This HYDX-6 hydraulic drilling rig is a new product made by Lianyungang H.H. Drill-Tech Drilling Machinery . It is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world. HYDX-6 is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
HYDX-6 hydraulic diamond core rig can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring. It is an outstanding China drill rig for BQ, NQ, HQ, and PQ drilling.



1. Main Features of the rig:
The hydraulic diamond core rig, equipped with tracks, has a hydraulic driving system. It owns a brief but advanced structure, with its power head driven by a variable motor and its speed adjustable for 2 gears. With the oil cylinder working with a speed-changeable chain, its performance is stable and reliable. The mast is adjustable in the range from 0° to 90° to ensure a proper hole-drilling angle. The low gravity center of the rig promises a steady operation. And this hydraulic diamond core rig provides the operators with a convenient and comfortable working circumstance with a wide view. In short, the hydraulic diamond core rig has a beautiful outline and shows a people-oriented design idea.
(1) Reliable Quality Hydraulic Diamond Core Rig
The main parts and auxiliary equipment, including the engine, diesel engine, hydraulic pump, gear reducer and some key valves and hydraulic accessories, are all products with well-known brands.
(2) High Efficiency
Big torque, powerful driving force, rational and practical design, advanced controlling mode and a 6-meter-long (19.7 feet) drilling rod guarantee the high operation efficiency of the rig.
(3) Environmental Protection
The diesel engine is professionally designed to reduce noise and other contamination (The noise can not be over 72db), which makes the rig proper to be operated in urban areas.
(4) Energy Saving Hydraulic Diamond Core Rig
The advanced technique of loading-sensor-controlling helps the hydraulic diamond core rig reduce its consumption of driving force and heat discharge to the minimum extent.
HYDX-6 has an outstanding external appearance, a compacted structure, a reliable function, and a flexible operating system. All these factors have made the rig the best choice among the same products in both domestic and abroad markets.



II. Main Performance Parameters of HYDX-6
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected. Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.



Diesel Engine Model Cummins 6CTA (turbocharged and charge water cooled)
Displacement 8.3L (2.19 US Gallons)
  Power 178kW (240HP)
  Rated RPM(Factory setting) 2200rpm
Drilling Capacity BQ Hydraulic Diamond Core Rig 2000 m(6560 feet)
NQ 1600 m(5248 feet)
HQ 1300 m(4264 feet)
PQ Hydraulic Diamond Core Rig 1000 m(3280 feet)
  Rotation Motor Double Hydraulic Motor -variable and Reversible Maker: SAUER-DANFOSS
  RPM Two Shifts/ Stepless Change 0-1100 RPM
  Ratios of Hydraulic Diamond Core Rig 1st 8.776:1 2nd 2.716:1
  Head Opener sidewise sliding way with hydraulic drive
Drill Head Hydraulic Chuck(PQ) Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N
  Max. Torque 6400 N·m(4717 lbf·ft)
  Hold Diameter 121 mm(4.76 inch)
  Max. Lifting capacity of Spindle 220 kN(49456 lbf)
  Max. Feeding Power 110 kN(24728 lbf)
Primary Pump Hydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system. Maker: DANFOSS 1st Pump:200LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump: 102 LPM at 16MPa
Hydraulic Tank Capacity 420 L (111 US Gallons)
  Hoisting Speed (single wire) 38-70m/min(bare drum)
Capacity of Main Hoisting force (single wire) 120kN(26976 lbf)
Hoist Steel Wire Diameter 22 mm(0.86 inch)
  Steel Wire Length 50 m(164 feet)
Capacity of Wireline Hoist Hoisting Force (single wire) 15 kN(3372 lbf) (bare drum)
  Steel Wire Diameter 6 mm(0.24 inch)
  Steel Wire Length 2000 m(6560 feet)
  Mast Height 11 m(36 feet)
  Mast Adjusting Angle 0°—90°
  Drilling Angle of the Hydraulic Diamond Core Rig 45º off horizontal to 90ºvertical down
Mast Feeding Stroke 3800 mm(150 inch)
  Slippage Stroke 1500 mm(59 inch)
  Feed Pull 22000kg(48510 lb)
  Feed Thrust 11000kg(24255 lb)
  Rod Pull 3m or 6m(9.84feet or 19.68feet)
  Type Reciprocating Pump Triplex Plunger
  Model BW320
Mud Pump Stroke 110mm(4.3 inch)
  Output volume 320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min)
  Discharge pressure 4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi)
Foot Clamp Clamping Scope 55.5-117.5 mm(2.19-4.63 inch) through hole Ф154mm(6.06 inch)
  Weight 14500 Kg(31973 lb)
Others Transport Dimensions (L × W ×H ) 5900×2240×2500mm (232.3×88.1×98.4 inch)
  Transport Way Steel Crawler
