Product Details:
|
High Light: | drilling mud pump,mud pumps for drilling rigs |
---|

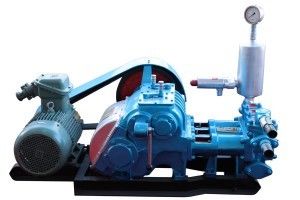

BW-250 MUD PUMP
BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter
Quick Details:
Place of Origin: | China | Brand Name: | sinocoredrill | Model Number: | BW-250 |
Theory: | Reciprocating Pump | Structure: | Piston Pump | Usage: | Water |
Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other |
Packaging Detail: | wooden boxes |
Delivery Detail: | 30 days after payment |
horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee
Main Technical Specifications:
BW-250 MUD PUMP |
||
Type |
Horizontal, triplex, reciprocating, single acting piston pump |
|
Stroke |
100mm |
|
Bore |
80mm |
65mm |
Pump speed (s.p.m) |
200 116 72 42 |
200 116 72 42 |
Output volume (l.p.m) |
250 145 90 52 |
116 96 60 35 |
Discharge pressure (Mpa) |
2.5 4.5 6.0 6.0 |
4.0 6.0 7.0 7.0 |
Volumetric efficiency |
85% |
|
Mechanical efficiency |
85% |
|
Total efficiency |
70% |
|
Input power/speed (kw/r.p.m) |
15/1500 |
|
Multiple grooved pulley D.P (mm) |
410(B groove*5) |
|
Input speed of pump (r.p.m) |
500 |
|
Max. suction head (m) |
2.5 |
|
Inside diameter of suction hose (mm) |
76 |
|
Inside diameter of discharge (mm) |
51 |
|
Overall dimensions (mm) |
1100*995*650 |
|
Weight (kg) |
500(without power) |
