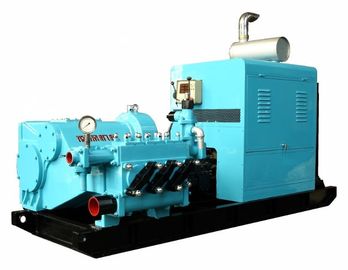

BW-1000/12 MUD PUMP
BW-1000/12 Mud Pumps is equipped with hydrogeology well drilling rigs to drill holes with mud. It can be also equipped with directional drilling rig to make trenchless engineering drilling.
Specifications:
1.a horizontal, triplex, single acting reciprocation piston
2.by diesel engine, electric motor or hydraulic motor
|
MODEL |
BW-1000/12 |
|
TYPE |
Horizontal, Triplex Piston, Single Acting Reciprocating pump |
|
STROKE (mm) |
150 |
|
LINER DIA. (mm) |
135 |
|
STROKES (min-1) |
158 130 91 59 37 |
|
DISPLACEMENT (L/min) |
1000 835 580 380 235 |
|
PRESSURE (Mpa) |
6 7 10 12 12 |
|
VOLUME EFFICIENCY % |
100 |
|
GENERAL EFFICIENCY % |
78 |
|
SUCTION HIGHT (m) |
2.5 |
|
INPUT POWER (kW) |
132Kw, 6BTA5.9-C180 |
|
SUCTION PIPE DIA. (mm) |
127 |
|
DISCHARGE PIPE DIA.(mm) |
76 |
|
DIMENSION (mm) |
3520X1760X1400 |
|
WEIGHT (kg) |
4000 |
BW-1000/12 mud pump is a horizontal, triplex, single acting reciprocation piston pump. It can be driven by diesel engine, electric motor or hydraulic motor, and it is reliable and agile and simple for operation. It can be controlled at close range or long-distance. It also has many other merits such as compact structure, running smoothly, large-scale variable rates of flow, high output pressures, longer service life of the wearing parts and steady performance, good intensity and rigidity, plentiful standard parts and interchangeable parts and so on.
